Fasco 91 Motor 1/15 hp 3000 RPM 3.3 inches replacement 91, JB1R048N

Product Description

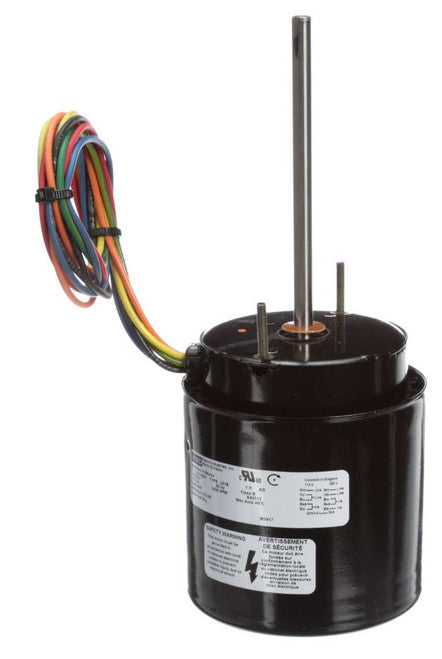

The FASCO 91 motor is a 1/15 hp, 3000 RPM motor that can be used as a replacement on Coleman, Frigidaire, McQuay, Tjernlund, Trane, and other ice machines. This motor features a 3.3" diameter, TEFC enclosure, and stainless steel shaft. It operates at 115/230V and has 2.0/1.0 amps.

• Can be used as a replacement on Coleman, Frigidaire, McQuay, Tjernlund, Trane, and other ice machines.
• 1/15 hp, 3000 RPM, 2.0/1.0 amps, 115/230V

Product Highlights

The FASCO 91 is suitable for various ice machine applications. It features ball bearings, 18" leads, and a CWSE rotation.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: 91

Technical Specifications

• Horsepower: 1/15 hp
• RPM: 3000
• Amps: 2.0/1.0 amps
• Voltage: 115/230V
• Diameter: 3.3"
• Enclosure: TEFC
• Shaft: Stainless Steel Shaft 5/16" x 5"
• Rotation: CWSE
• Leads: 18"
• Bearings: Ball Bearings
• Length less shaft: 4.5"
• Mounting studs shaft end: 2.84" centers
• Fasco Model: 7121-12939
