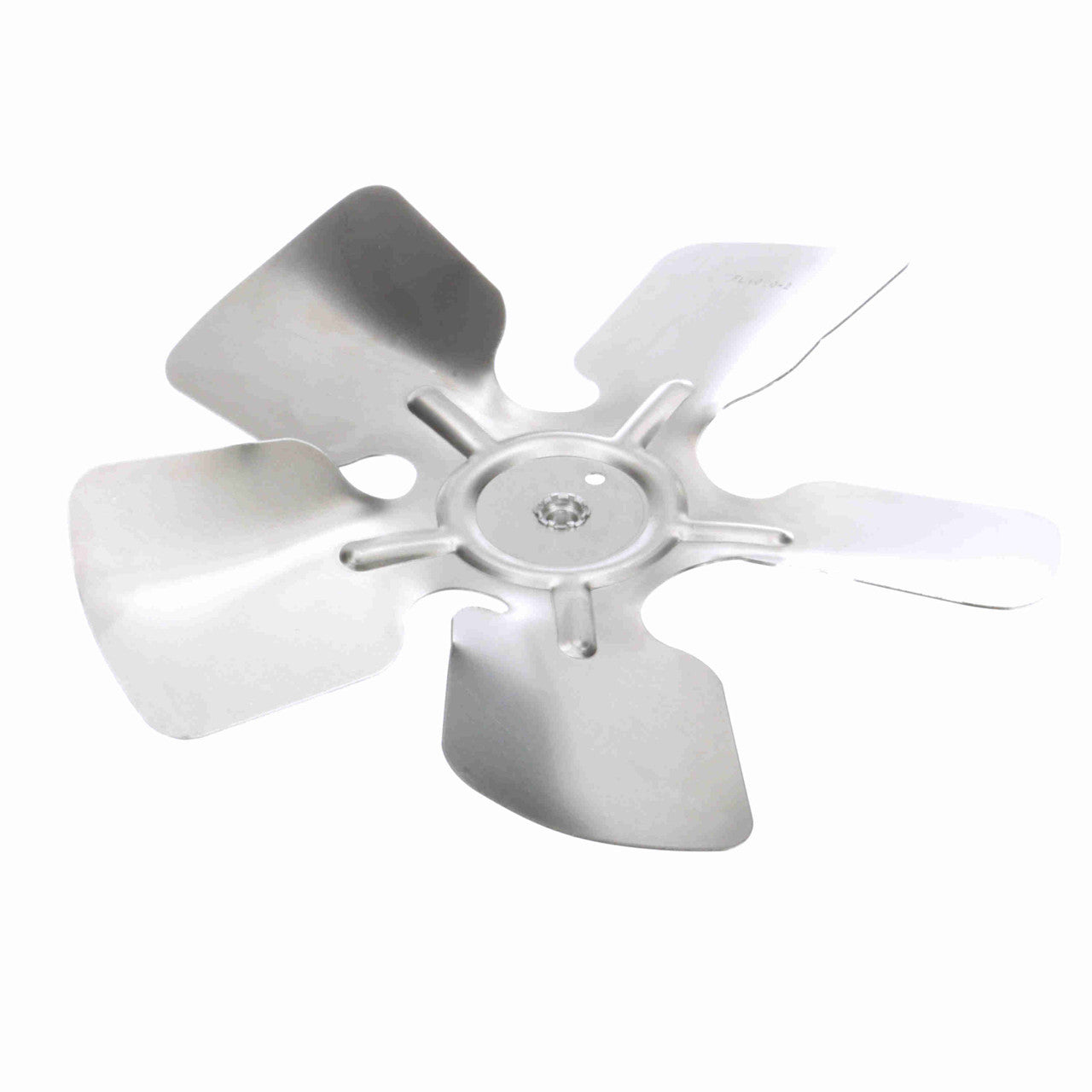

Fasco 5fl1020-2 Fan Blade 10 in 22 Deg Ccw 5 Blade

Product Description

The FASCO 5fl1020-2 is a five-blade condenser or air-handling fan blade designed for use in HVAC equipment where reliable airflow delivery is critical. The blade measures 10 inches in diameter and is set at a 22-degree pitch, producing a counterclockwise (CCW) rotation pattern. This combination of diameter and pitch is engineered to move the correct volume of air across coils or heat exchangers at the airflow rates typical HVAC systems require. HVAC technicians and refrigeration mechanics install this blade as either an OEM replacement or a direct-fit upgrade on equipment that calls for a CCW five-blade configuration.

This fan blade is suited to residential and light-commercial HVAC applications where a 10-inch CCW fan blade is specified. Typical installation scenarios include condenser fan assemblies, evaporator fan sections, and small air-handling units. The 22-degree pitch makes it appropriate for moderate static-pressure applications where steady, consistent airflow across a coil is the primary requirement. Installers should verify rotation direction and hub bore compatibility before installation.

Key Features

• 10-inch blade diameter for compact condenser and air-handler fan assemblies
• 22-degree pitch angle optimized for moderate static-pressure airflow
• Counterclockwise (CCW) rotation direction
• Five-blade design for balanced airflow and reduced vibration
• OEM-style replacement from FASCO, a recognized HVAC motor and accessory manufacturer

Compatibility

Designed as an OEM-style replacement fan blade for HVAC equipment specifying a 10-inch diameter, 22-degree pitch, five-blade, counterclockwise fan blade assembly.

Installation Notes

Licensed HVAC technicians should de-energize and lock out the unit at the disconnect before servicing any fan assembly. Confirm shaft diameter, hub bore, and rotation direction match the existing assembly before mounting. Blade set screws should be tightened to equipment manufacturer specifications using appropriate Allen-key tooling. Verify blade tip clearance within the fan shroud before restoring power.

Technical Specifications

• Blade Diameter: 10 inches
• Pitch Angle: 22 degrees
• Rotation Direction: Counterclockwise (CCW)
• Number of Blades: 5
• Warranty: 1-year manufacturer warranty

Standard Information

• Brand: FASCO
• Manufacturer Part Number: 5fl1020-2
