Fasco 50769-D230 Centrifugal Blower with Sleeve Bearing 1200/1400 RPM 208-230V

Product Description

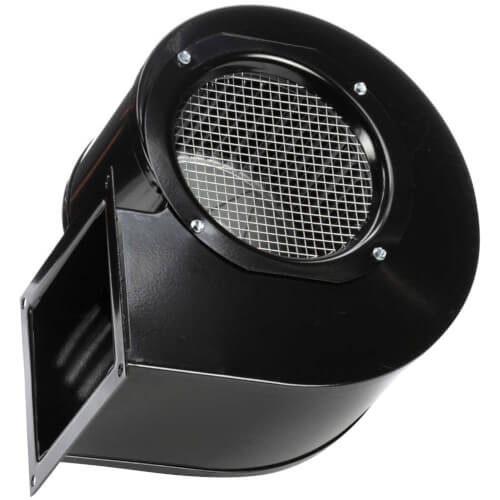

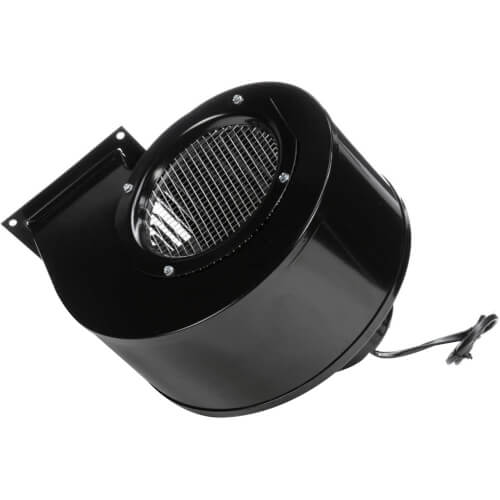

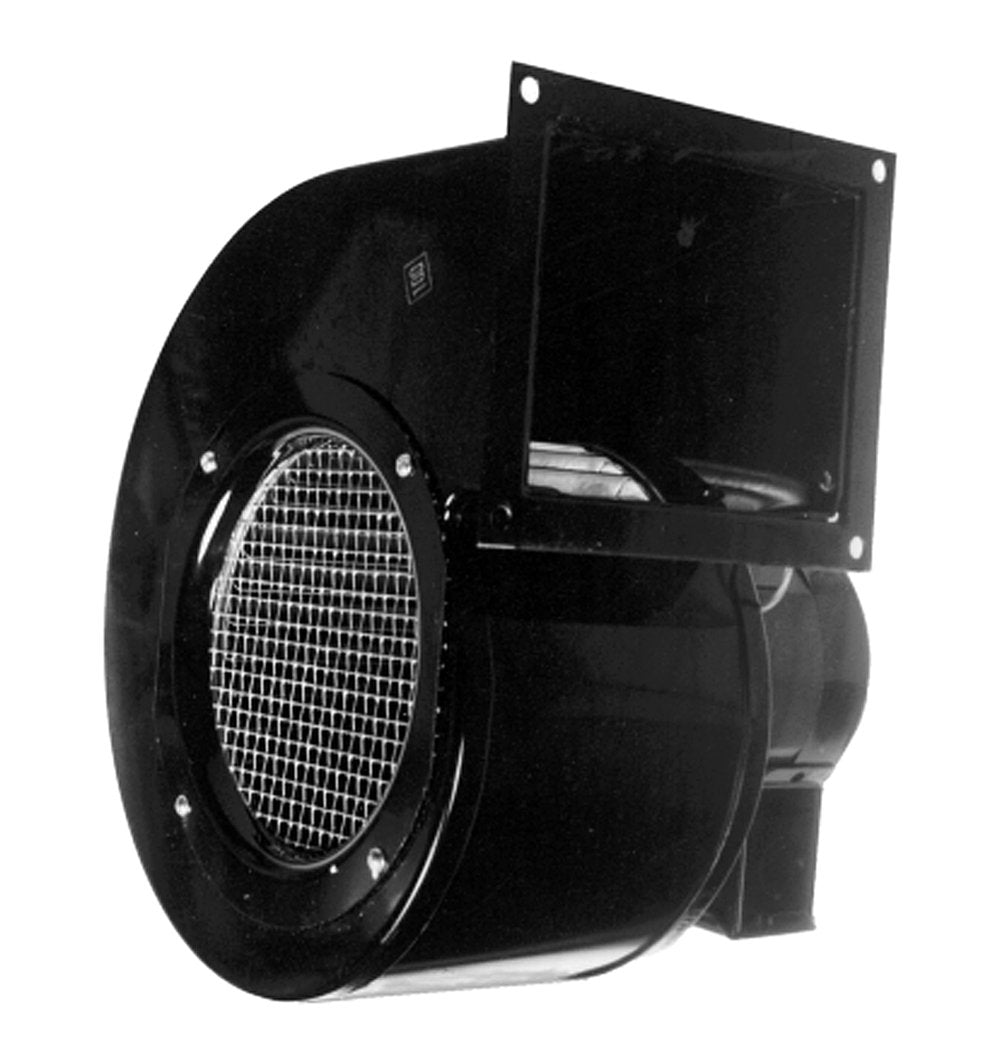

The Fasco 50769-D230 centrifugal blower operates at 208-230 volts and supports 50/60 Hertz with a current draw of 1.9 amps. This unit features a sleeve bearing, ensuring reliable shaft support. The blower works with a two-speed fan system, producing a free air output of 480 cubic feet per minute (CFM) at speeds of 1,200 and 1,400 revolutions per minute (RPM).

• 480 CFM free air output for heating and ventilation needs.
• Sleeve bearing design enhances durability and functionality.
• UL recognized and CSA certified for consistent quality.

Product Highlights

This blower is designed for heating and ventilation applications, making it suitable for exhaust vent fans and other HVAC uses.

Product Information

Standard Information

• Manufacturer: Fasco Motors
• Type: Centrifugal blower

Technical Specifications

• Motor Type: 2-speed
• Rated Voltage: 208-230V
• Frequency: 50/60 Hz
• Amperage: 1.9 amps
• Free Air Output: 480 CFM at 1200/1400 RPM
• CFM at Static Pressure: 391/331 CFM at 0.1 inches water gauge
• CFM at 0.2 inches: 370/316
• CFM at 0.3 inches: 349/281
• Weight: 12.6 lbs
• Mounting Style: 4-hole
