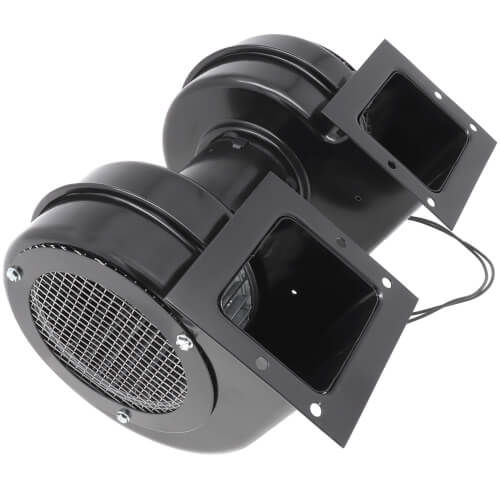

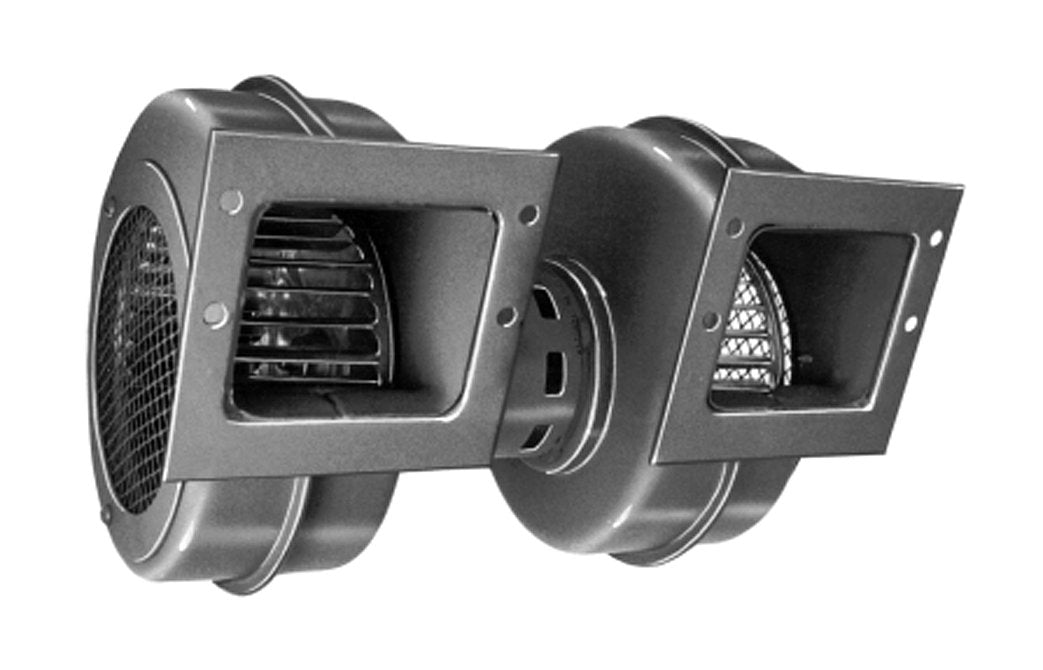

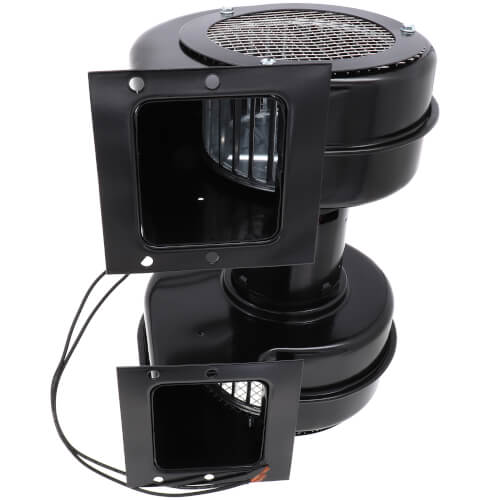

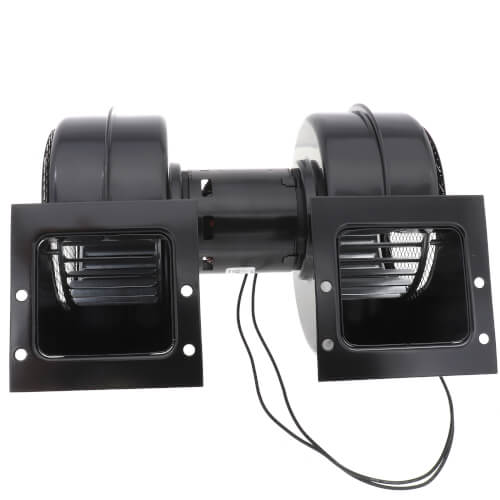

Fasco 50756-D500 Centrifugal Blower with Sleeve Bearing, 1,500 rpm, 115V, 60Hz, 1.3 amps

Product Description

The Fasco 50756-D500 centrifugal blower is designed for heating and ventilation applications. It operates at 1,500 rpm with an input power of 115V, 60Hz, and 1.3 amps. The blower features a sleeve bearing that supports the motor shaft. It has a dual inlet design with a free air output rating of 320 cubic feet per minute (CFM). This model is efficient in various conditions and is suitable for exhaust vent fans in furnaces.

• Single-speed operation with an RPM of 1,500
• Outputs up to 320 CFM free air flow
• UL recognized and CSA certified for safety

Product Highlights

The Fasco 50756-D500 is an ideal choice for HVAC professionals. This blower is known for its reliability and performance in air circulation applications.

Product Information

Standard Information

• Brand: Fasco
• MPN: 50756-D500

Technical Specifications

• Motor Type: 1-speed, thermally protected
• Input Voltage: 115V
• Frequency: 60 Hz
• Amperage: 1.3 amps
• Free Air Output: 320 CFM
• Static Pressure Ratings: 245 CFM at 0.1 SP, 225 CFM at 0.2 SP, 200 CFM at 0.3 SP, 160 CFM at 0.4 SP
• Certification: UL recognized, CSA certified
• Dimensions: 12.8 x 9.6 x 8.7 inches
