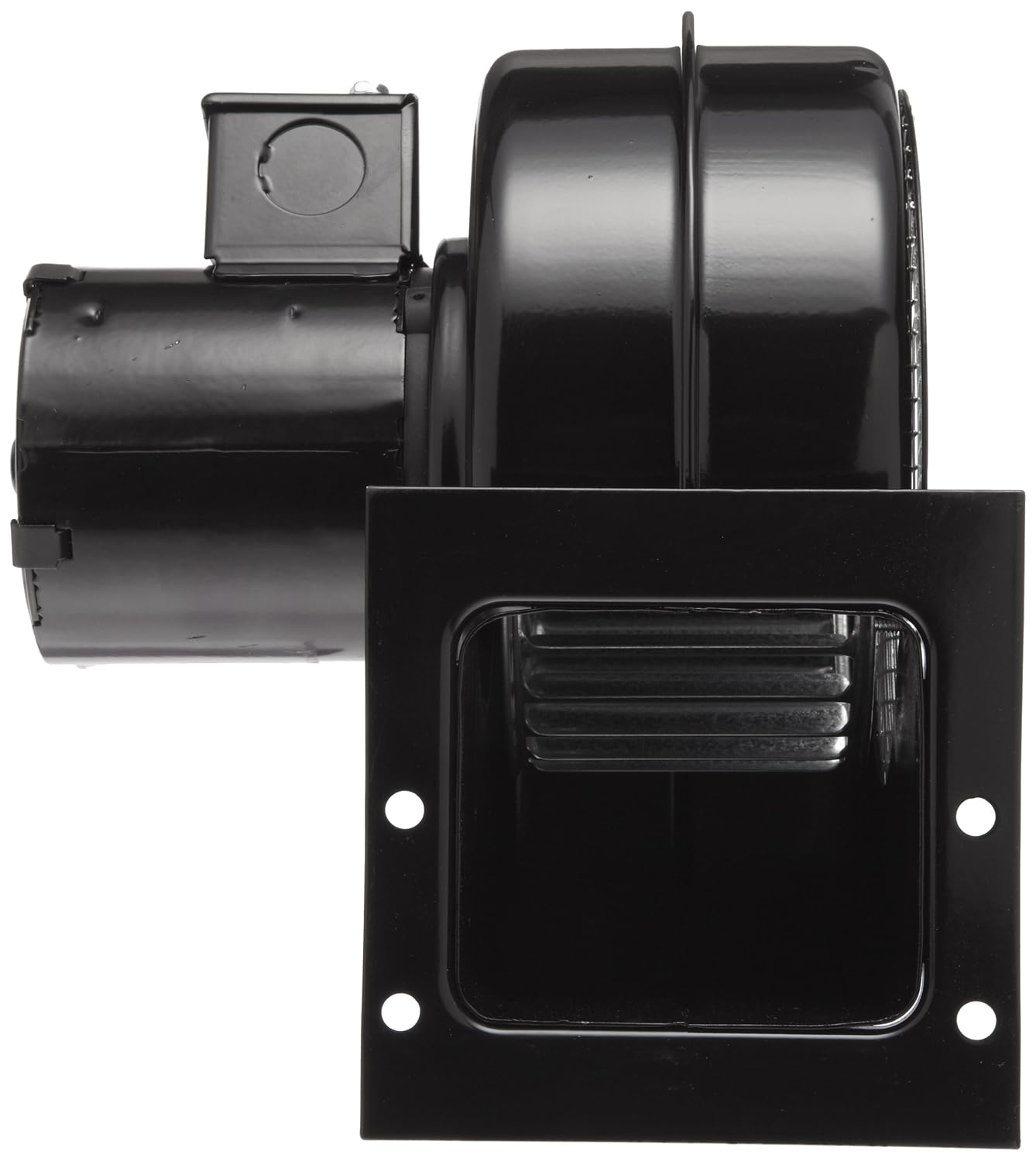

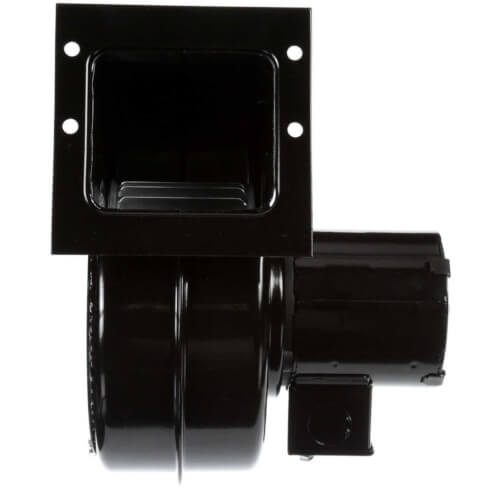

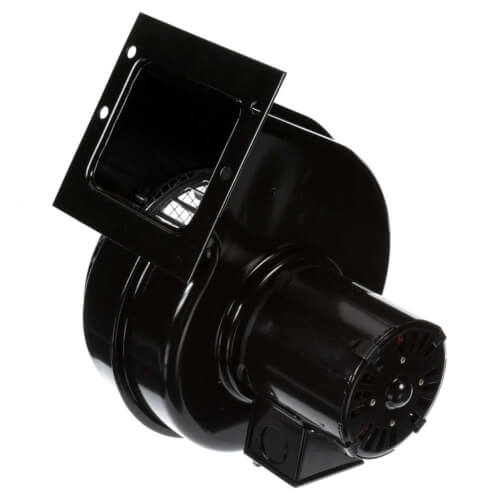

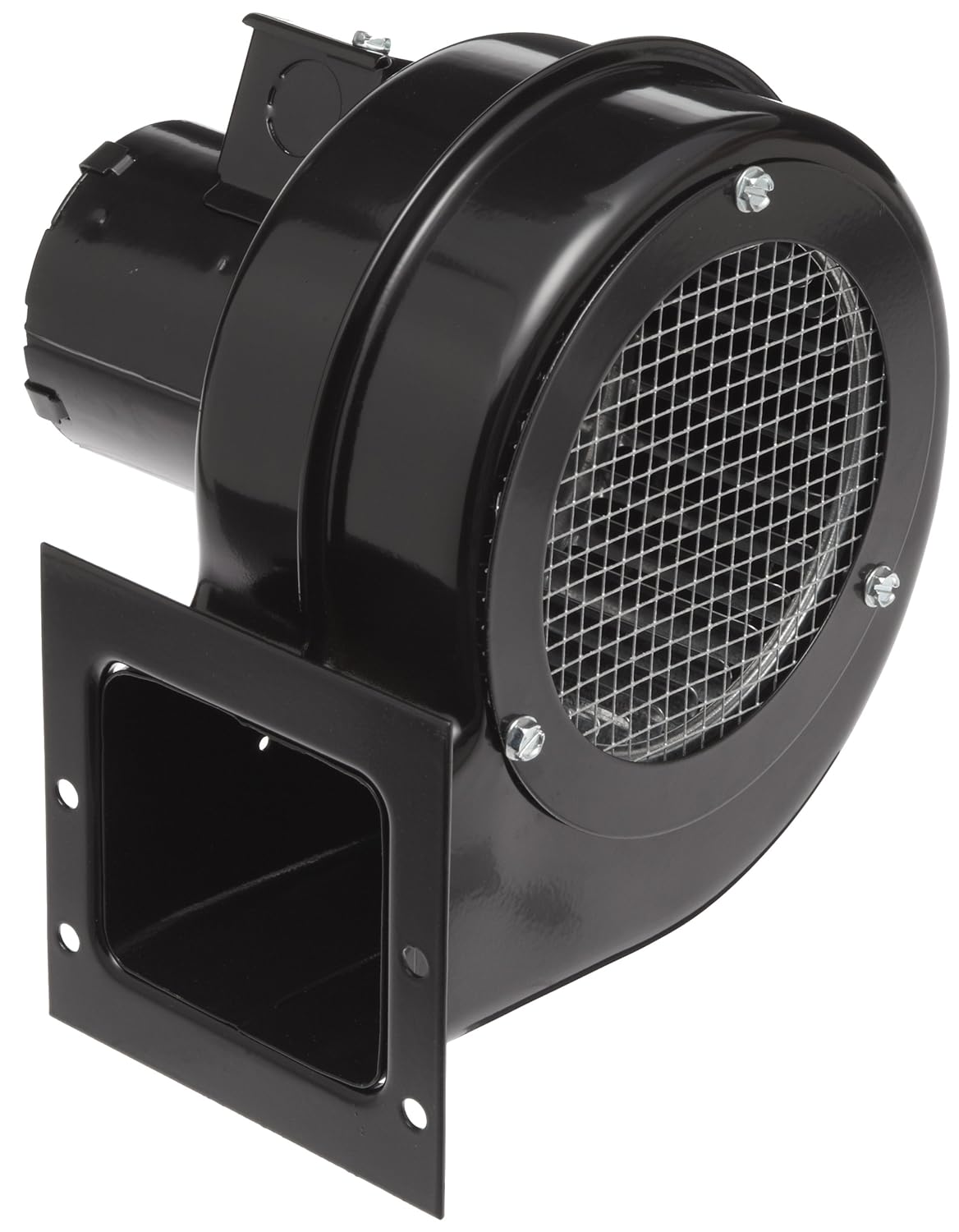

Fasco 50755-D230 Centrifugal Blower with Sleeve Bearing, 1600 rpm, 208-230V

Product Description

The Fasco 50755-D230 centrifugal blower is designed for use in heating and ventilation applications. This blower operates on 208-230V, 50/60 Hz, and draws 0.51 amps. It features a sleeve bearing for motor shaft support and delivers a free air output rating of 160 cubic feet per minute (CFM) at 1600 revolutions per minute (RPM). The motor is thermally protected to prevent overheating. This model is UL recognized and CSA certified.

• 160 CFM free air output-rated centrifugal blower
• 208-230V, 50/60Hz power input
• UL recognized and CSA certified for quality assurance

Product Highlights

This Fasco blower is ideal for heating and ventilation systems, including exhaust vent fans for furnaces.

Product Information

Standard Information

• Manufacturer: Fasco Motors
• Brand: Fasco
• Model: 50755-D230
• MPN: 50755-D230

Technical Specifications

• Voltage: 208-230V
• Frequency: 50/60 Hz
• Amperage: 0.51 amps
• Rotation: Clockwise (CW)
• Sleeve Bearing: Yes
• CFM at 0.1 SP: 140
• CFM at 0.2 SP: 128
• CFM at 0.3 SP: 118
• CFM at 0.4 SP: 105
