Fasco 50752-D230 Square Outlet Shaded Pole Centrifugal Blower 208-240 Volts REPLACEMENT MPN

Product Description

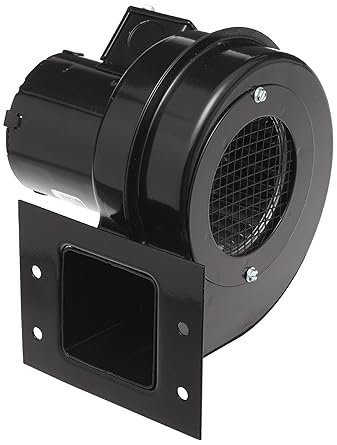

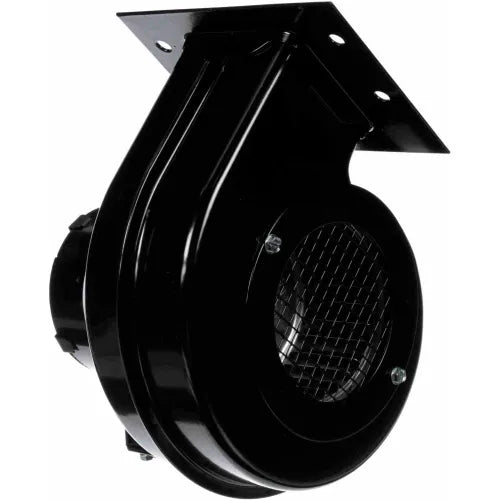

The FASCO 50752-D230 is a square outlet shaded pole centrifugal blower designed for operations at 208-240 volts. It is a thermally protected unit ideal for heating and ventilation tasks. This blower provides a free air output of one hundred thirty-five CFM, suitable for various applications.

• Centrifugal blower features a diameter of three point three inches
• Thermally protected with open air over for safety
• Sleeve bearing design with seven inches leads and stripped ends

Product Highlights

The FASCO 50752-D230 is built for high efficiency in heating and ventilation systems. Its compact design allows for various mounting options and easy installation.

Product Information

Standard Information

• Brand: Fasco
• MPN: 50752-D230

Technical Specifications

• Voltage: 208-240 V
• Motor Type: Shaded Pole
• Thermal Protection: Thermally Protected
• Speed: 3000 rpm
• Current: 0.75/0.67 A
• Number of Speeds: 1
• Frequency: 50/60 Hz
• Phase: 1
• Ambient Temperature: 40 degrees Celsius
• UL Certified: Yes
• Insulation Class: B
• CSA Certified: Yes
• Blower Outlet Shape: Square
• Motor Enclosure: Open
• Blower Outlet Flange: Yes
• Bearing Type: Sleeve
• Free Air Output: 135 CFM
• Blower Type: Centrifugal, single inlet, 4-hole mount
• Model: Centrifugal Blower
• Nominal Rated Input Voltage: 230 V
