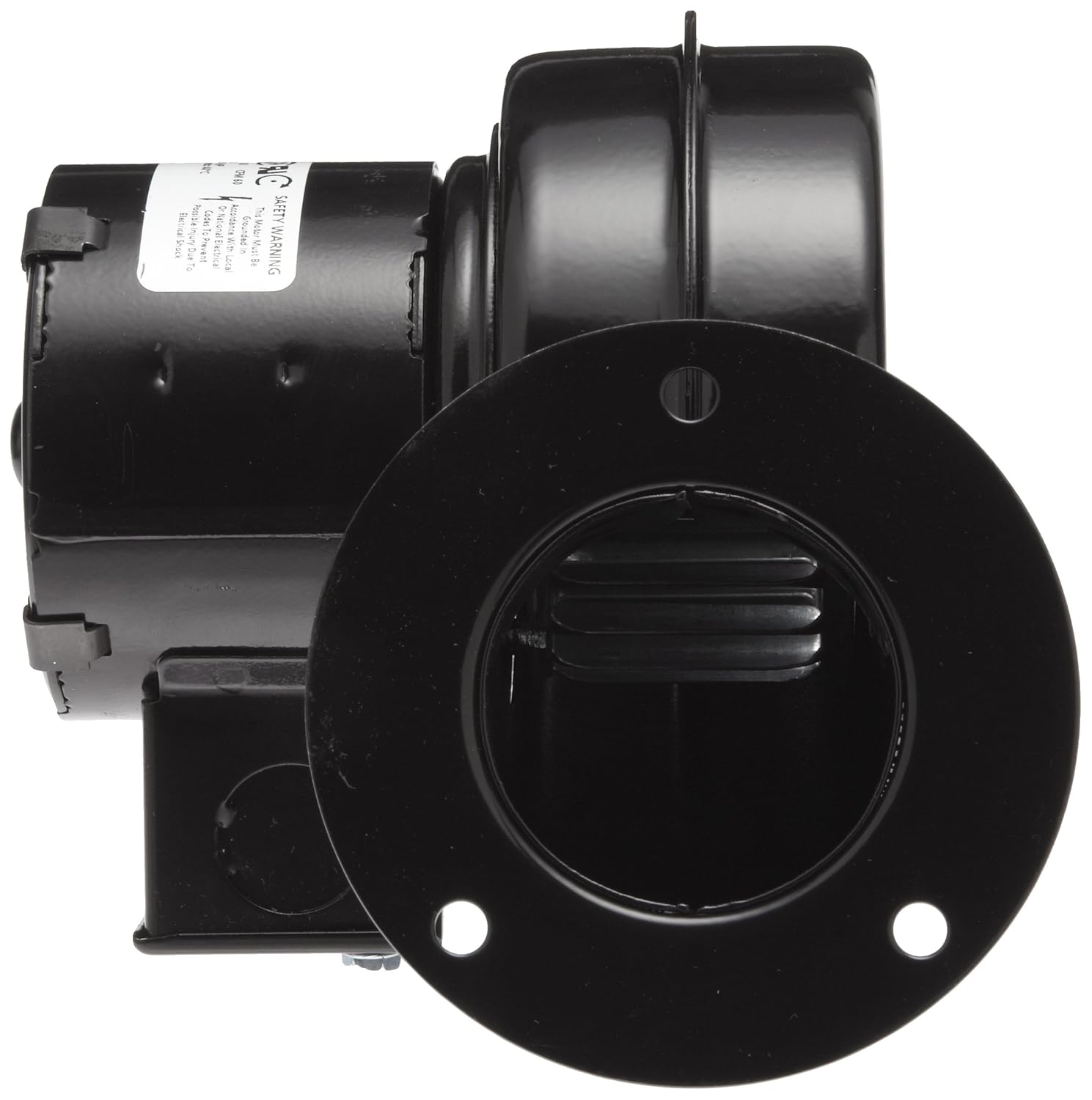

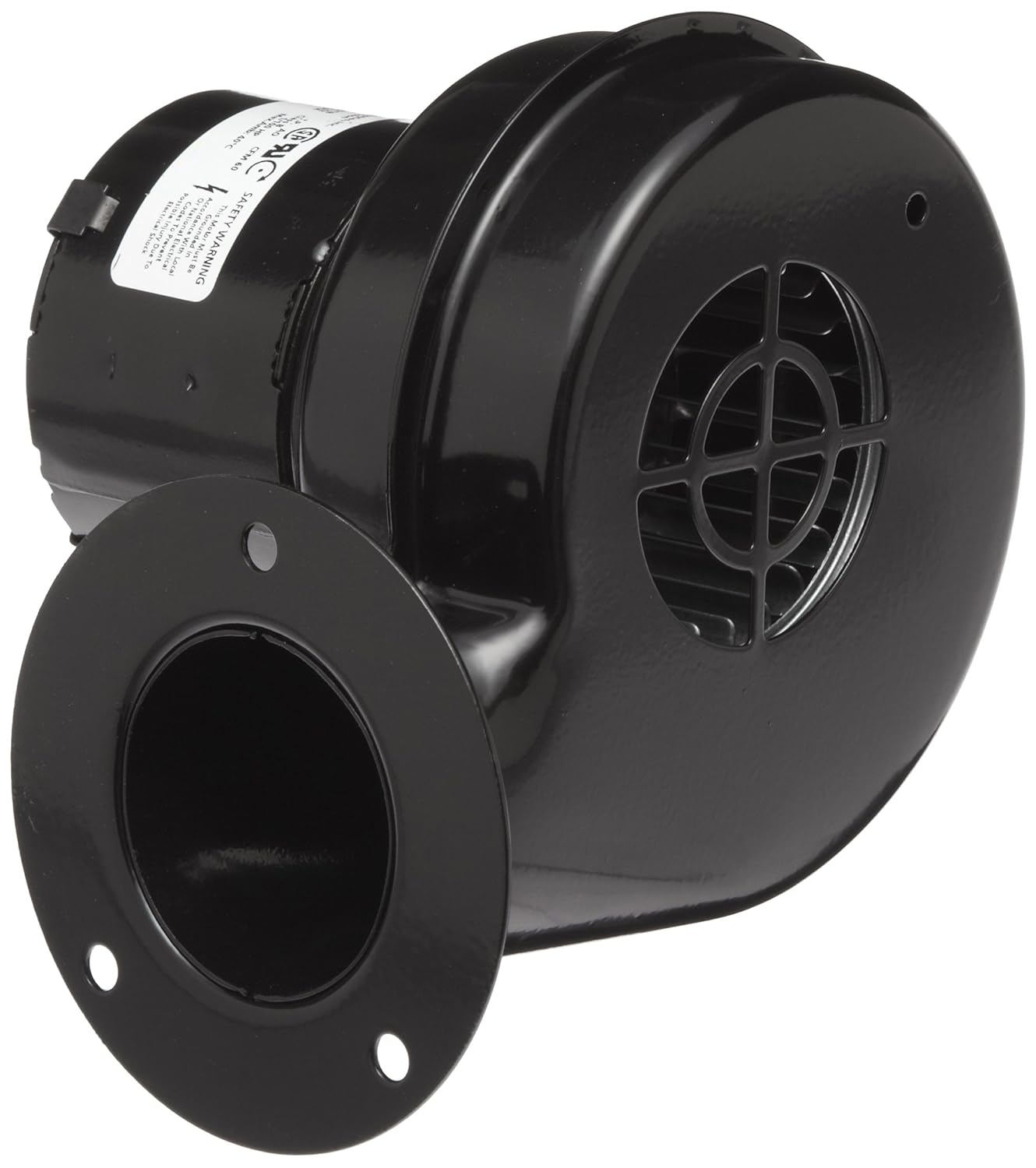

Fasco 50747-D230 Centrifugal Blower 208-230V 3200 rpm

Product Description

The Fasco 50747-D230 centrifugal blower operates on 208-230V and 50/60Hz with a power input of 0.26 amps. This single-speed blower features a sleeve bearing for shaft support and delivers a free air output of 60 cubic feet per minute at 3,200 revolutions per minute.

• 60 CFM free air output
• Thermally protected motor
• UL recognized and CSA certified

Product Highlights

This centrifugal blower is designed for heating and ventilation applications, including use in exhaust vent fans for furnaces. It provides reliable performance with a motor that is thermally protected against overheating.

Product Information

Standard Information

• Brand: Fasco
• MPN: 50747-D230

Technical Specifications

• Free Air Output: 60 CFM at 3,200 RPM
• Static Pressure: 47 CFM at 0.1 SP, 42 CFM at 0.2, 37 CFM at 0.3, 33 CFM at 0.4, 21 CFM at 0.5, and 7 CFM at 0.6
• Voltage: 208-230V
• Frequency: 50/60 Hz
• Amps: 0.26
• Bearing: Sleeve
• Motor Protection: Thermally protected
• Certifications: UL recognized, CSA certified
