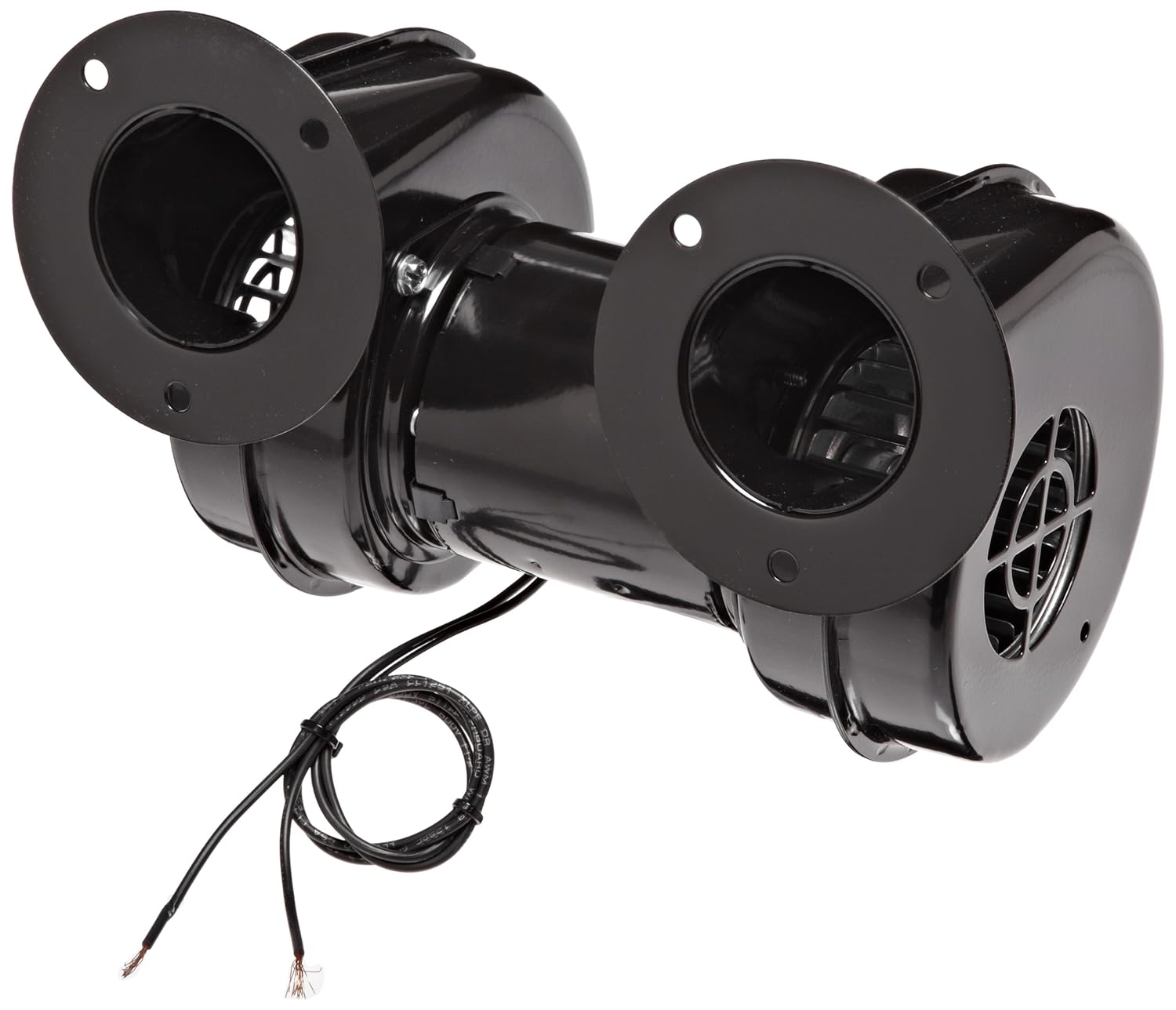

Fasco 50746-D500 Centrifugal Blower with Sleeve Bearing, 3,100 rpm, 115V, 60Hz, 0.72 Amps

Product Description

The Fasco 50746-D500 centrifugal blower features a sleeve bearing and operates at three thousand one hundred revolutions per minute (RPM) with a power input of one hundred fifteen volts (115V), sixty hertz (60Hz), and zero point seventy-two amps (0.72A). This single-speed, double inlet blower provides a free air output rating of one hundred twenty cubic feet per minute (CFM) and offers various airflow rates under static pressure. Designed for applications in heating and ventilation, this blower is suitable for exhaust vent fans and other HVAC systems.

• Free air output of 120 CFM at 3,100 RPM
• Sleeve bearing provides support for the motor shaft
• Thermally protected motor for safety

Product Highlights

The Fasco 50746-D500 is recognized for its reliability and efficiency in various heating and ventilation systems.

Product Information

Standard Information

• Manufacturer: Fasco Motors
• MPN: 50746-D500

Technical Specifications

• Power Input: 115V, 60Hz, 0.72A
• Blower Type: Centrifugal, double inlet
• Free Air Output: 120 CFM at 3,100 RPM
• Air Flow Rates at Static Pressure: 94 CFM at 0.1, 87 CFM at 0.2, 77 CFM at 0.3, 67 CFM at 0.4, 48 CFM at 0.5, 18 CFM at 0.6
• Certification: UL recognized, CSA certified

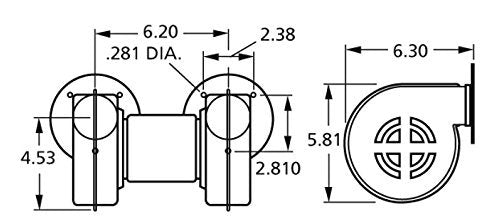

• Dimensions: 10.5 x 7 x 6.8 inches
• Weight: 5 lbs
