Fasco 50746-D500 Centrifugal Blower with Sleeve Bearing 115V REPLACEMENT 7021-1681

Product Description

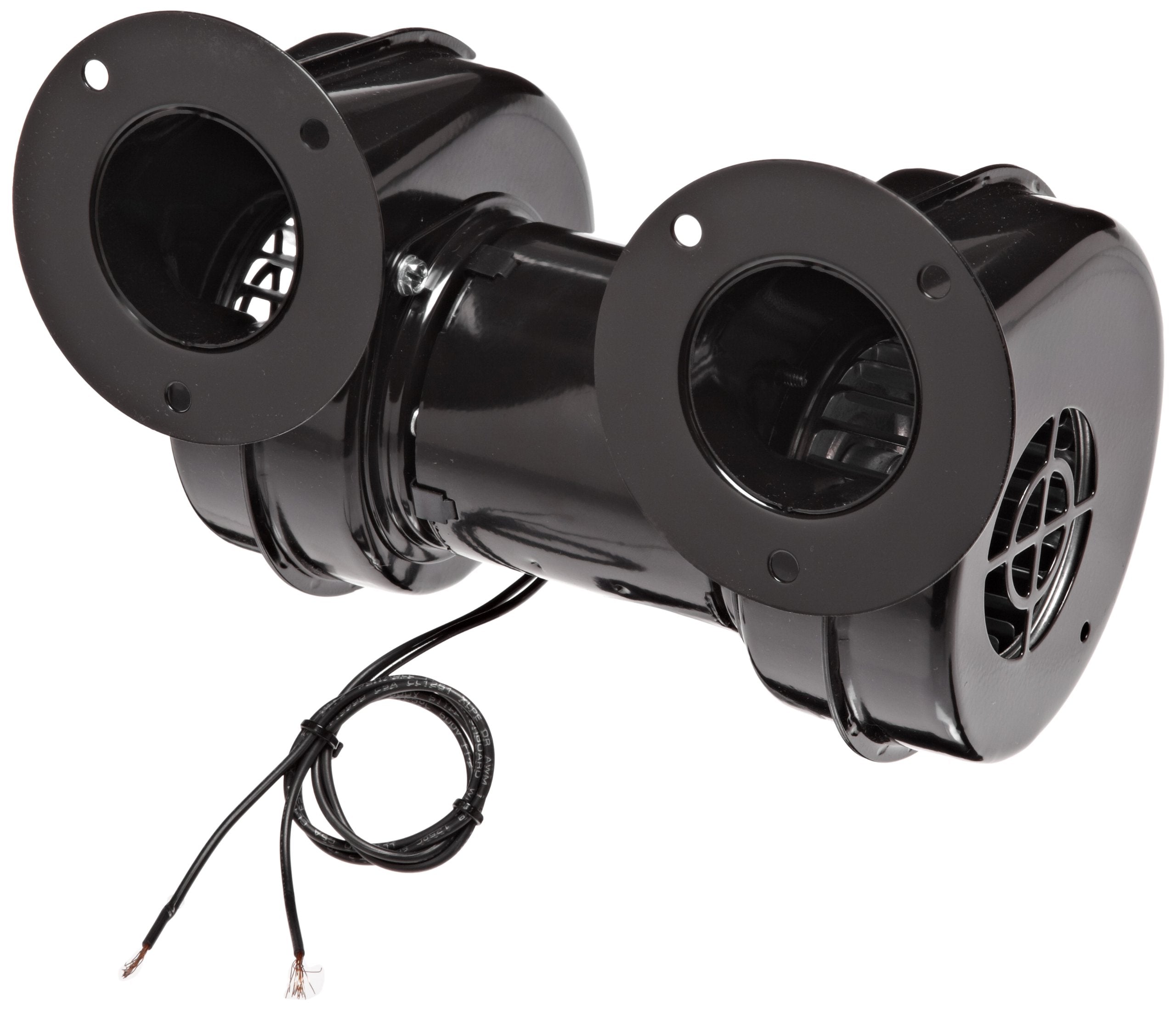

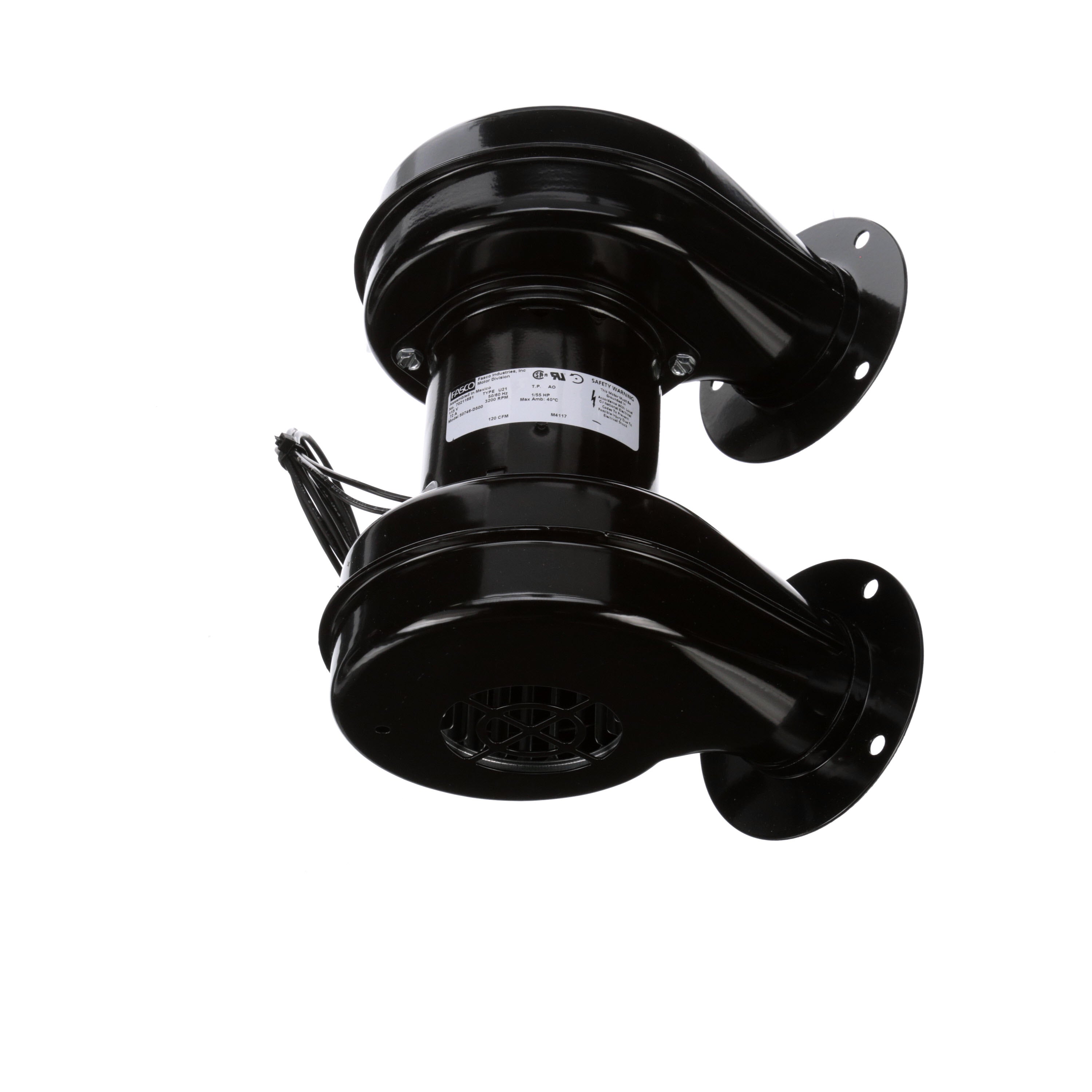

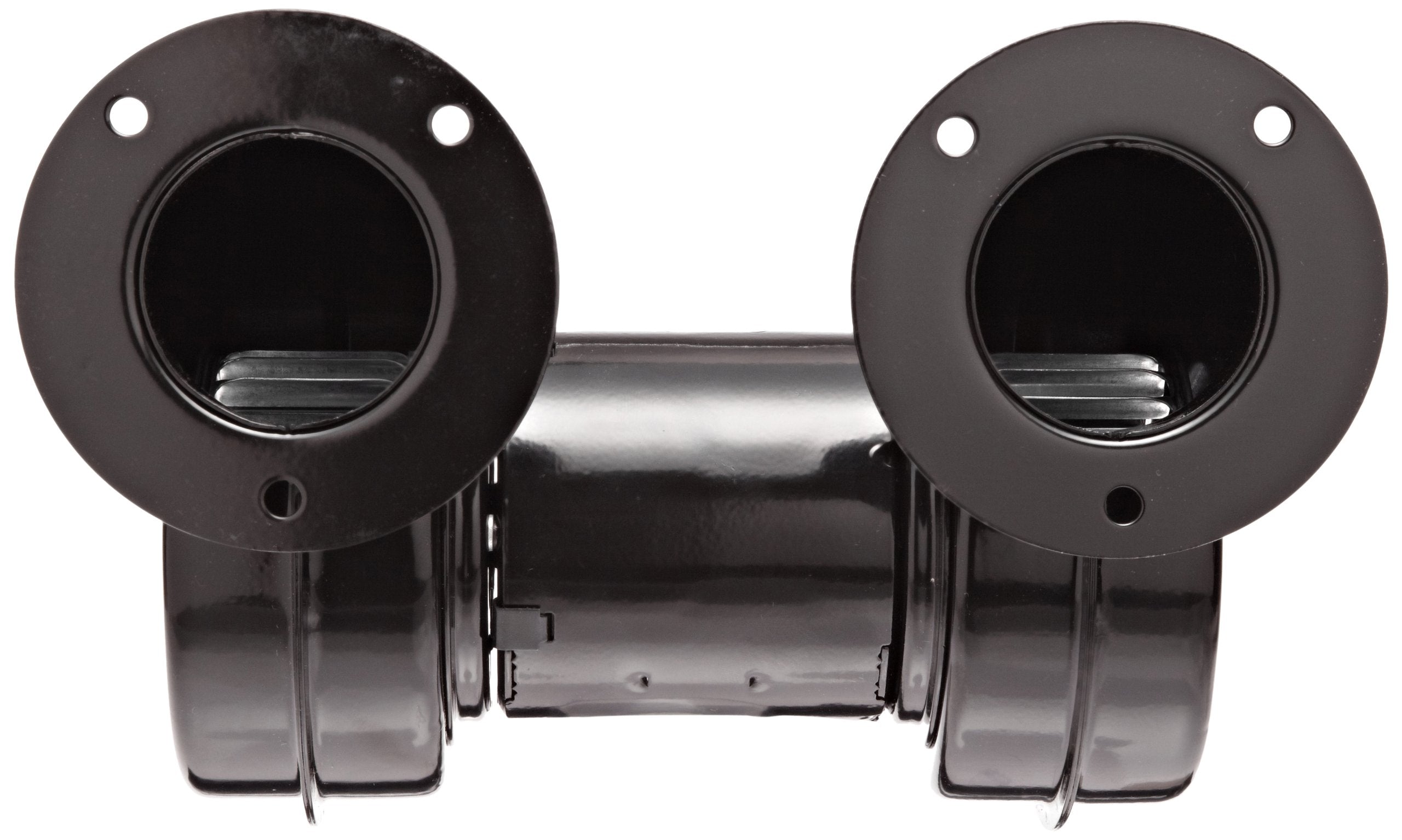

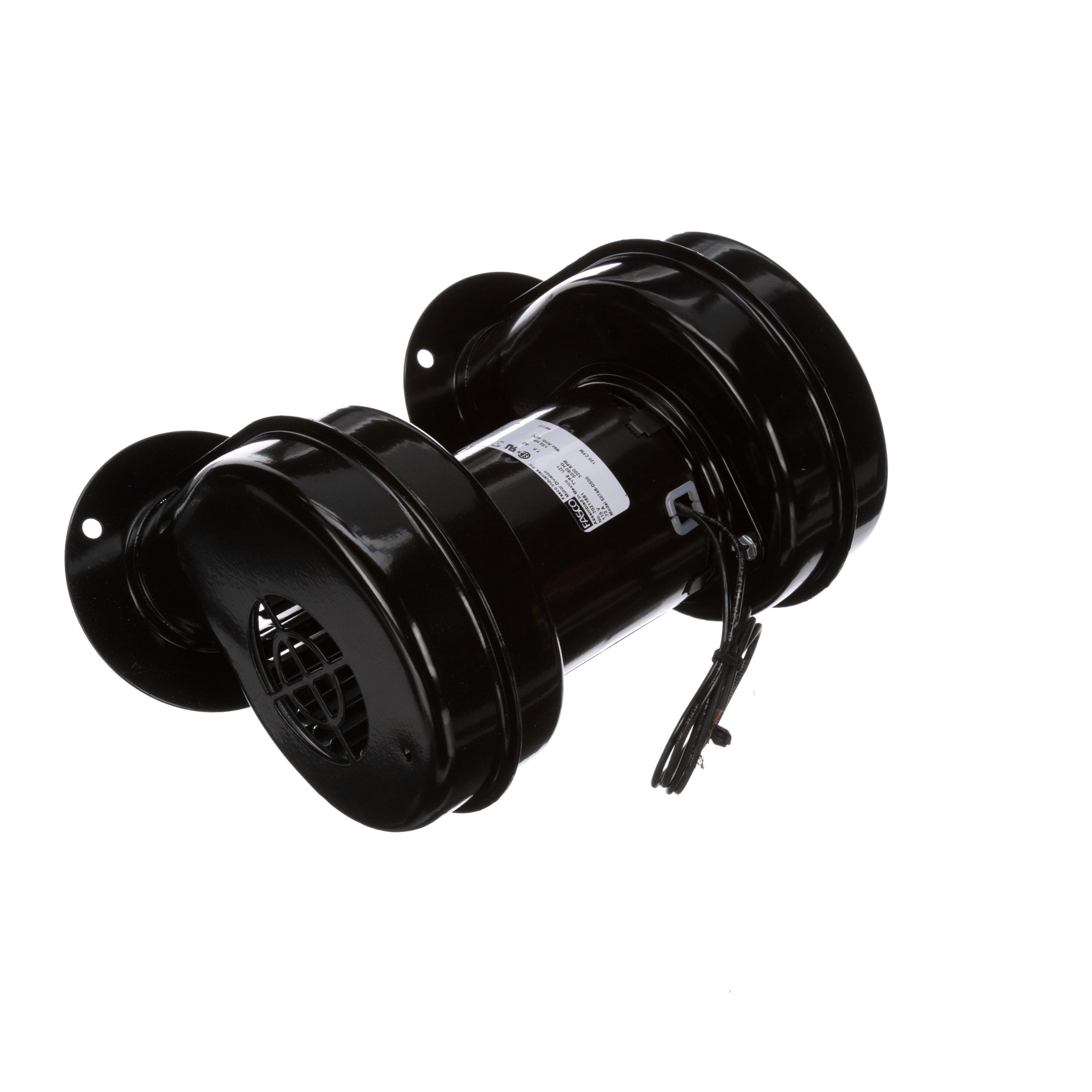

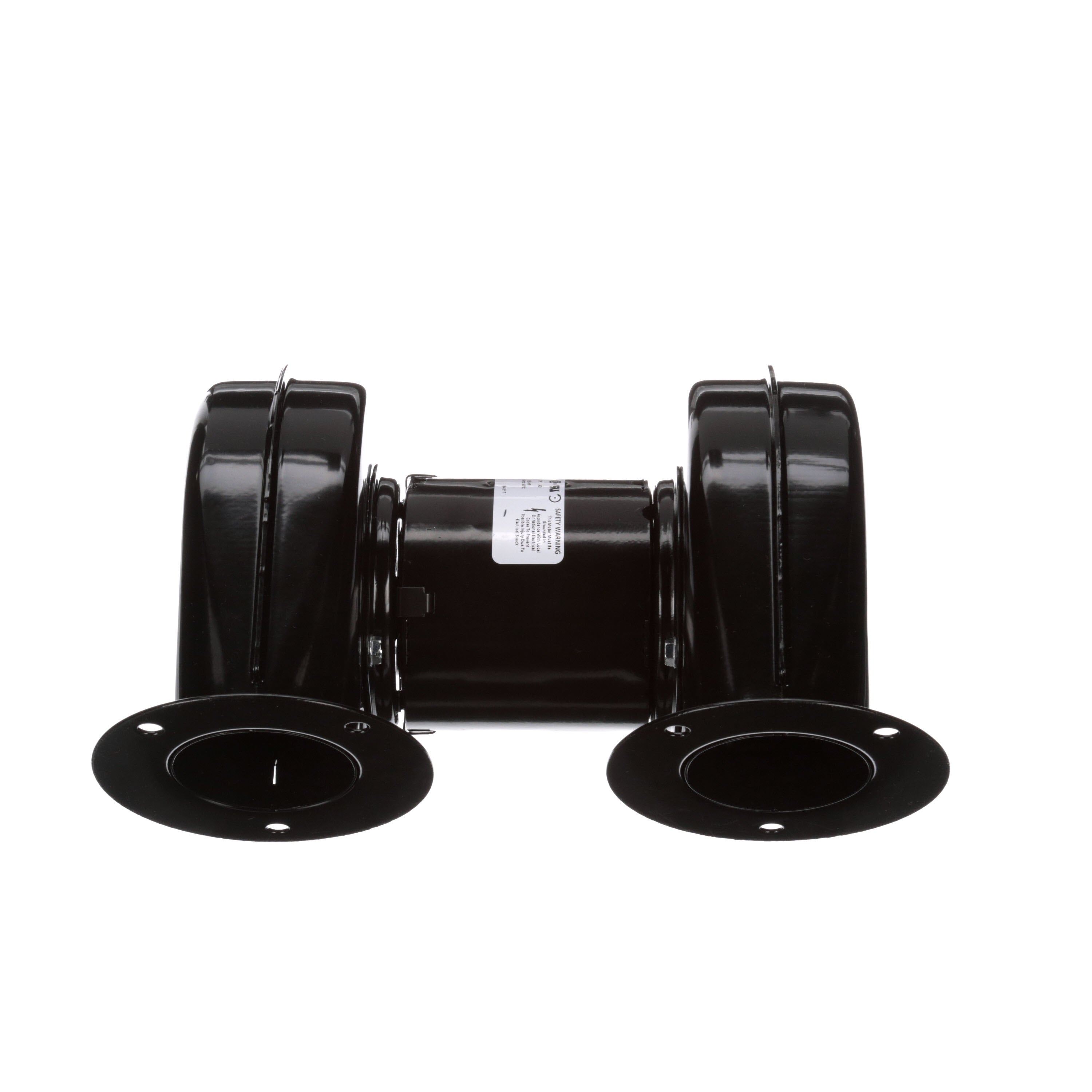

The Fasco 50746-D500 centrifugal blower features a sleeve bearing and accepts 115V, 60 Hz, 0.72 amps power input. This single-speed, double inlet blower has a free air output rating of 120 cubic feet per minute (CFM) at 3,100 revolutions per minute (RPM). The motor is thermally protected to guard against overheating. It is suitable for use in heating and ventilation applications.

• Sleeve bearing for blower motor shaft support.
• 120 CFM free air output-rated centrifugal blower.
• Thermally protected motor.

Product Highlights

The Fasco 50746-D500 is UL recognized and CSA certified. It is designed for use in heating and ventilation appliances.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: 50746-D500
• Country of Origin: Mexico

Technical Specifications

• Brand: Fasco
• MPN: 50746-D500
• Manufacturer: Fasco Motors
• Item Model Number: 50746-D500
• Voltage: 115 V
• Frequency: 60 Hz
• Amps: 0.72
• Speed: 3,100 rpm
• Bearing Type: Sleeve
• Phase: 1
• Rated RPM: 3050
• Enclosure Type: Open/Drip Proof
• Full Load Amps: 0.77
• Bearing Drive End: Sleeve
• Thermal Protection: Thermally
• Ambient Temperature: 40 °C
• Motor: 1-speed, 115V, 60 Hz, 0.72 amp, sleeve bearing, thermally protected
• Blower type: Centrifugal, double inlet, 3-hole mounts
• Free air output: 120 CFM at 3,100 RPM
• CFM at static pressure (SP): 94 CFM of air flow at 0.1" SP, 87 CFM at 0.2", 77 CFM at 0.3", 67 CFM at 0.4", 48 CFM at 0.5", and 18 CFM at 0.6"
• Specifications met: UL recognized, CSA certified
• Motor Type: Shaded Pole
• Current: 0.77 A
• Number of Speeds: 1
• UL: Yes
• Insulation Class: B
• CSA: Yes
• Blower Outlet Shape: Round
• Motor Enclosure: Open
• Blower Outlet Flange: Yes
• RPM: 3200
• CFM: 120
• Bearings: Sleeve
• Rotation: CWLE
• DEM Reference: FA#50746-D500
• Spec Sheet: 50746-D500
