Fasco 4CR2433 4 blade CW interchangeable hub 24 inch diameter 33 degree pitch pack of 2 4C2432CW

Product Description

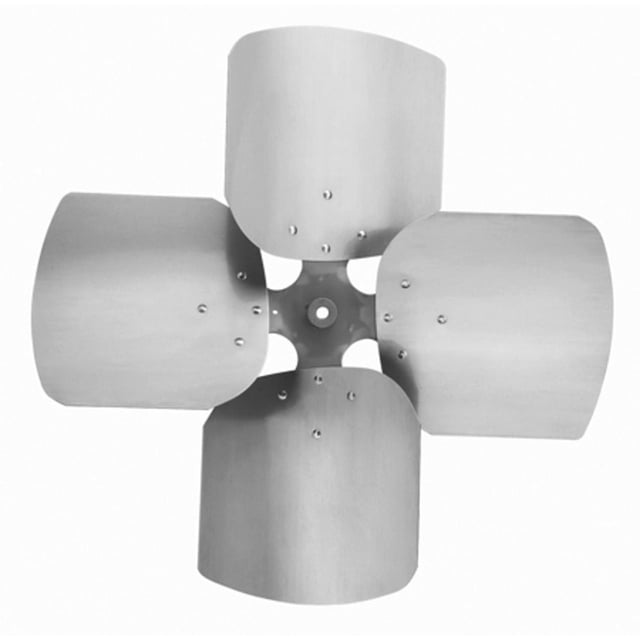

The FASCO 4CR2433 is a 4-blade, interchangeable hub, condenser (pressure) type fan blade. Designed for efficient air movement, it features a 24-inch diameter with a 33-degree pitch and clockwise rotation. This fan blade achieves 7600 CFM at 0 inches static pressure with 0.64 BHP, and has a maximum RPM of 1140. It is suitable for air-conditioning condensers, power roof ventilators, heat pumps, and industrial equipment.

• 4-blade, interchangeable hub, condenser (pressure) type fan blade
• Clockwise rotation with a 24-inch diameter and 33-degree pitch
• Maximum RPM of 1140, delivering 7600 CFM at 0 inches static pressure

Product Highlights

Interchangeable hub design for versatile applications in HVAC and industrial ventilation systems.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: 4CR2433
• Country of Origin: United States

Technical Specifications

• UPC: 818508025971
• Type: Fan Blade
• Category: Air Moving
• Replacement MPN: 4C2432CW
• Rotation: Clockwise
• Diameter: 24 Inches
• Pitch: 33 Degrees
• Maximum RPM: 1140
• Static Pressure 0 Inches: CFM = 7600, BHP = 0.64
• Static Pressure 0.30 Inches: CFM = 6190, BHP = 0.87
• Blades: 4
• Hub Type: Interchangeable
• Fan Type: Condenser (Pressure)
• Standard Pack Quantity: 2
