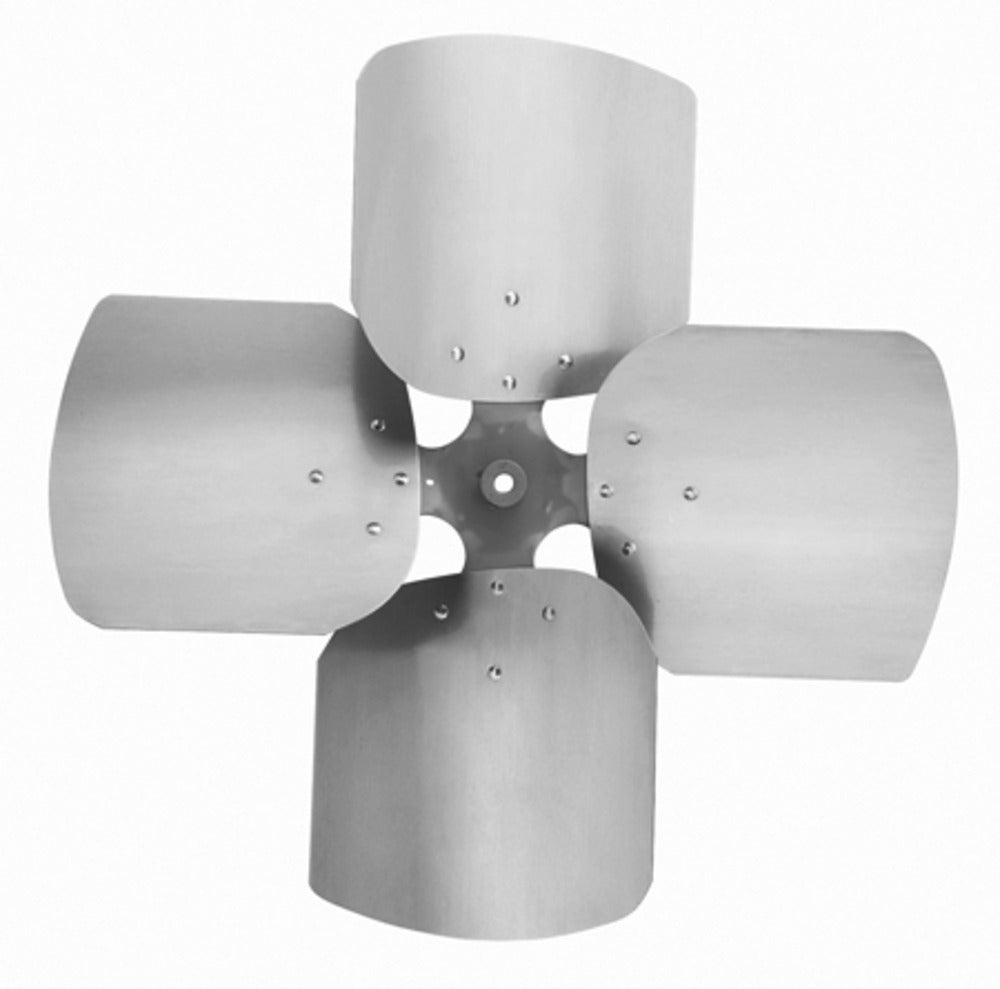

Fasco 4C2227CW 4 Blade Interchangeable Hub Condenser Fan Blade 22 Inches

Product Description

The Fasco 4C2227CW is a 4 blade, interchangeable hub, condenser (pressure) type fan blade. It rotates clockwise and has a diameter of 22 inches with a pitch of 27 degrees. Designed for air-conditioning condensers, power roof ventilators, heat pumps, heat exchangers, unit heaters, and other industrial equipment.

• Rotates clockwise
• Diameter: 22 inches
• Pitch: 27 degrees

Product Highlights

This fan blade is ideal for a wide range of applications including air-conditioning condensers and heat pumps. With a maximum RPM of 1140, it ensures efficient performance in various settings.

Product Information

Standard Information

• Blades: 4
• Rotation: Clockwise
• Diameter: 22 inches
• Pitch: 27 degrees

Technical Specifications

• 0 Inches Static Pressure CFM: 4840
• 0 Inches Static Pressure BHP: 0.28
• 30 Inches Static Pressure CFM: 3640
• 30 Inches Static Pressure BHP: 0.37
• Maximum RPM: 1140
• Standard Pack: Qty 2
• Typical Applications: Air-Conditioning Condensers, Power Roof Ventilators, Heat Pumps, Heat Exchangers, Unit Heaters, Industrial Equipment
