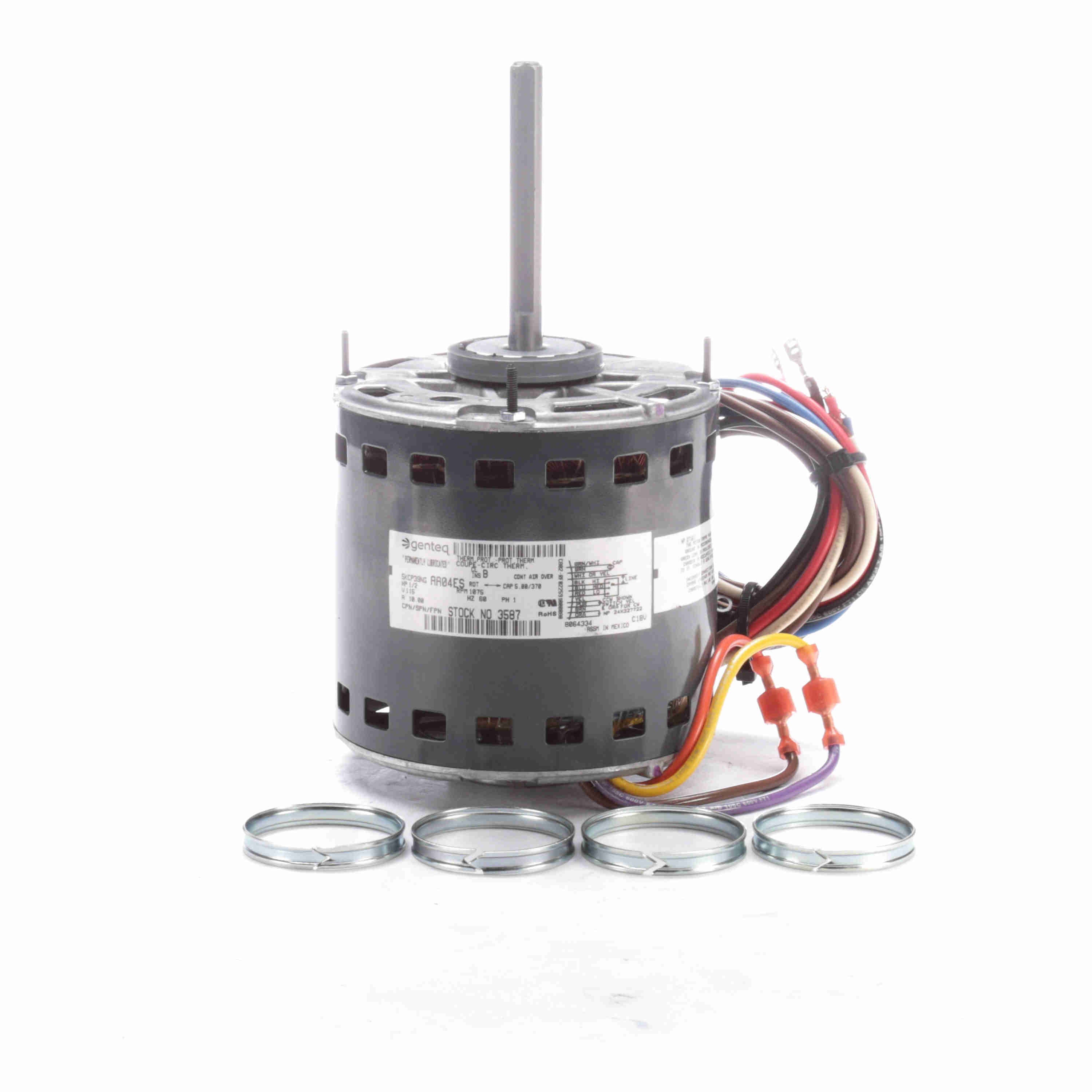

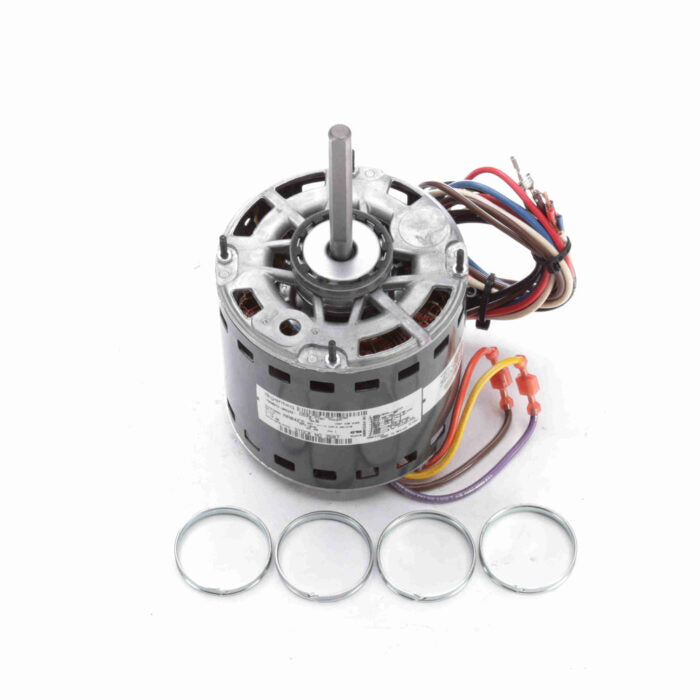

Fasco 3587 Motor 1/2HP 1075RPM 48Z Frame Open 115V 1 Phase 3 Spd

Product Description

The Fasco 3587 motor is designed for continuous air over applications, such as furnace blowers or central air handling units with single shaft requirements. This single-phase electrical motor features reversible rotation and automatic thermal overload protection. It is designed for use with a 370 Volt capacitor and includes mounting holes for a capacitor bracket.

• Reversible rotation for flexible installation options
• Automatic thermal overload protection for safety
• Designed for 370 Volt capacitor (not furnished)

Product Highlights

The Fasco 3587 motor is a reliable solution for HVAC applications, offering easy installation and durable performance.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: 3587

Technical Specifications

• Type: Permanent Split Capacitor
• Speeds: 3
• Base: 2RR (Resilient Rings)
• Rotation: CCW/CW
• Bearing: Sleeve
• Dimension C: 10.40
• FLA @ NP: 9.0
• HP: 1/2
• RPM: 1075
• Volts: 115
• Frame: 48Z
• Enclosure: Open Air Over (OAO)
• Diameter: 5-1/2"
• Amps: 7.5 4.5 3.0
• Electrical Type: PSC
• Phase: Single
• Overload Protector: Auto
• Material: Rolled Steel
• Number of Speeds: 3
• Shaft Size: 1/2" x 4"
• Rotation Direction: Reversible
