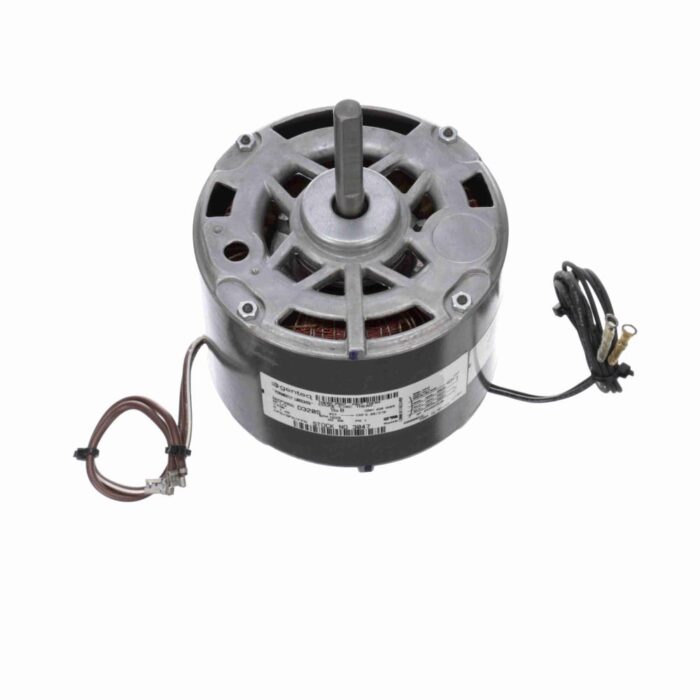

Fasco 3047 oem Replacement Motor 1/4 hp replaces GE 3047

Product Description

The Fasco 3047 OEM Replacement Motor is designed for optimal performance and durability. This 1/4 HP motor features a single-phase, 230V power supply and operates at 1625 RPM. Constructed with rolled steel and an open air over enclosure, it is suitable for various replacement applications.

• Electrical Type: PSC
• Rotation: CWSE / CCWLE
• Frame: 48

Product Highlights

This Fasco motor is a direct OEM replacement, ensuring seamless integration and reliable operation. It features thermal protection and extended studs for easy mounting.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: 3047

Technical Specifications

• Voltage: 230 V
• RPM (Range): 1425-1800
• Electrical Type: PSC
• Product Type: OEM Replacement Motor
• Diameter: 5.6
• Rotation: CWSE
• Material: Rolled Steel
• Phase: Single Phase
• Enclosure: OAO
• Frame: 48
• Horsepower: 1/4
• Speeds: 1
• Output HP: 1/4 Hp
• Output KW: 0.19 kW
• Frequency: 60 Hz
• Current: 1.58 A
• Speed: 1625 rpm
• Service Factor: 1
• Duty: Continuous
• Insulation Class: B
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• UL: Recognized
• CSA: Y
• CE: N
• Starting Method: Across The Line
• Poles: 4
• Mounting: Extended Studs
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Shaft Type: Double Flat
• Frame Length: 3.45 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 5.94 in
