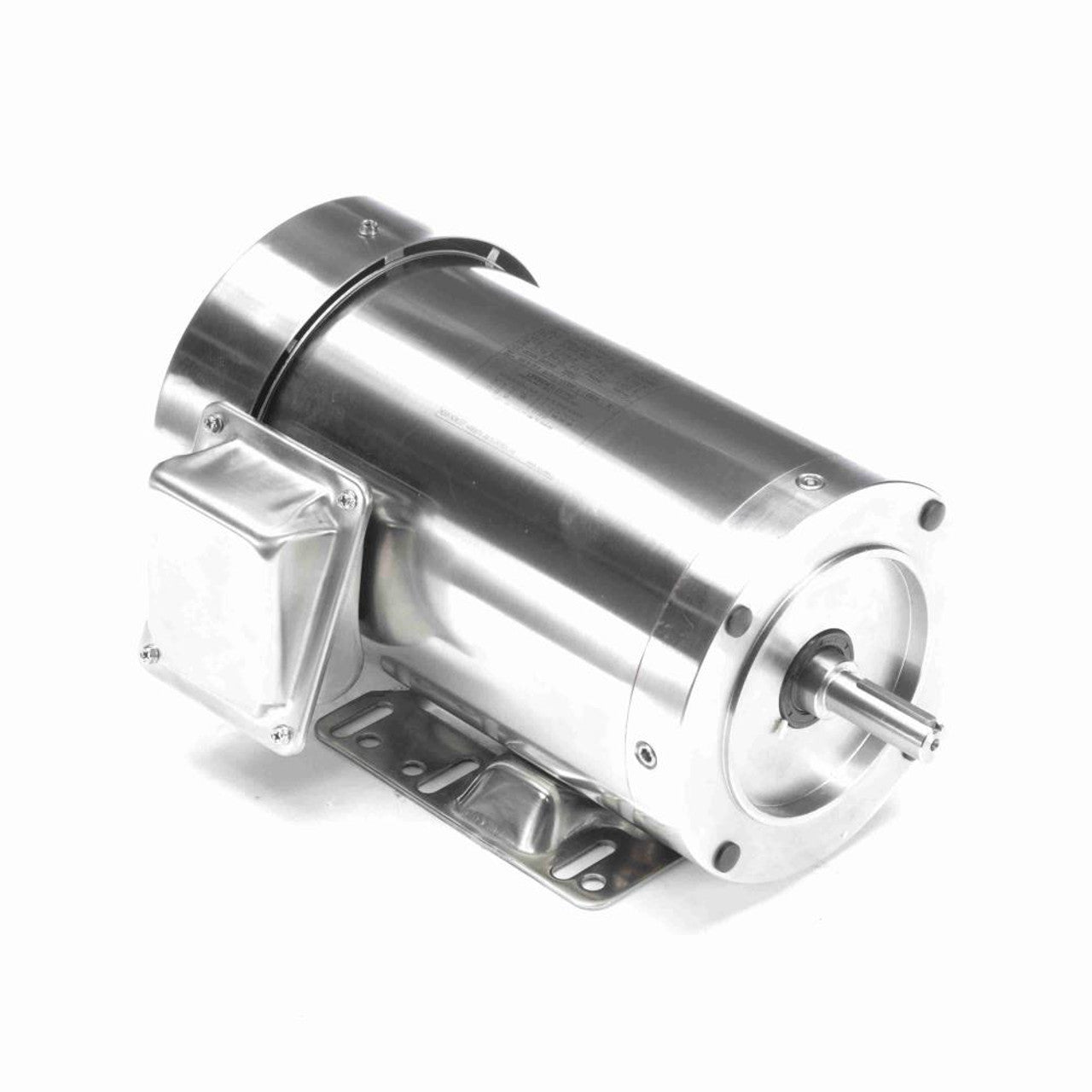

Fasco 191563.00 191563 General Purpose Motor, 2HP, 1750 RPM, 208-230/460 V
Secure
Ordering
Easy
Returns
100% Fit
Guarantee
Expert
Advice
Fast
Shipping
Product Information
Full stainless steel exterior promotes resistance to water and chemical corrosion.
Double sealed bearings extend the lifetime of the motor by combating early signs of bearing failure.
Stainless steel output shaft seals protect against external contaminants.
Insulation systems deliver superior protection against voltage spikes.
Specifications:
Output HP: 2 Hp
Output KW: 1.5 k
W
Frequency: 60 Hz
Voltage: 208-230/460 V
Current: 5.8-5.4/2.7 A
Speed: 1750 rpm
Service Factor: 1.15
Phase: 3
Efficiency: 86.5 %
Power Factor: 80
Duty: Continuous
Insulation Class: F
Frame: 56C
Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Protection
Ambient Temperature: 40 C
Drive End Bearing Size: 6205
Opp Drive End Bearing Size: 6205
UL: Recognized
CSA: Y
CE: Y
Number of Speeds: 1
Rotation: Reversible
Shaft Type: NEMA 56
Shaft Diameter: 0.625 in
Shaft Extension: 2.06 in
Drive End Bearing: Ball
Opp Drive End Bearing: Ball
Frame Material: Stainless Steel
