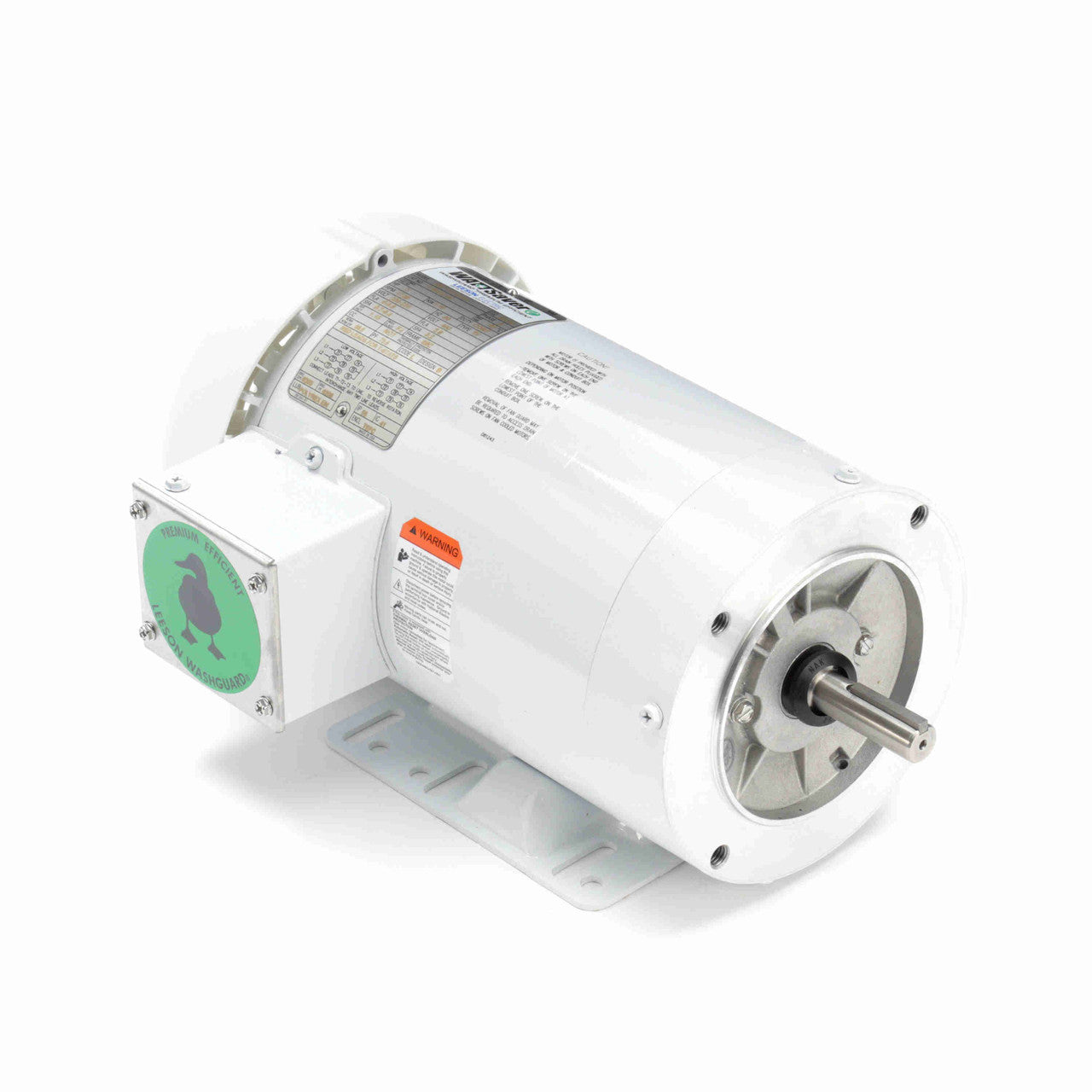

Fasco 119483.00 119483 White Duck General Purpose Motor, 2 HP, 1745 RPM, 208-230/460 V
In Stock - Ships in 1-2 Business Days
Buy a system bundle and save up to 10%!
SHOP ALL BUNDLES WITH THIS PRODUCT INCLUDED
Secure
Ordering
Easy
Returns
100% Fit
Guarantee
Expert
Advice
Fast
Shipping
Product Information
Output HP: 2 Hp
Output KW: 1.5 k
W
Frequency: 60 Hz
Voltage: 208-230/460 V
Current: 6.0-5.8/2.9 A
Speed: 1745 rpm
Service Factor: 1.15
Phase: 3
Efficiency: 86.5 %
Power Factor: 75.6
Duty: Continuous
Insulation Class: F
Frame: 56C
Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Protection
Ambient Temperature: 40 C
Drive End Bearing Size: 6203
Opp Drive End Bearing Size: 6203
UL: Recognized
CSA: Y
CE: Y
Number of Speeds: 1
Rotation: Reversible
Shaft Type: NEMA 56
Shaft Diameter: 0.625 in
Shaft Extension:1.88 in
Drive End Bearing: Ball
Opp Drive End Bearing: Ball
Frame Material: Rolled Steel
