Product Description

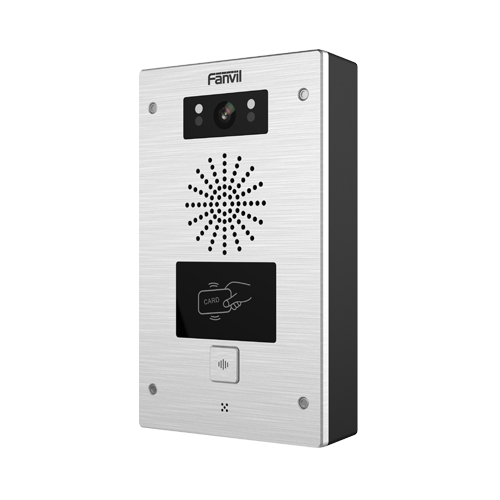

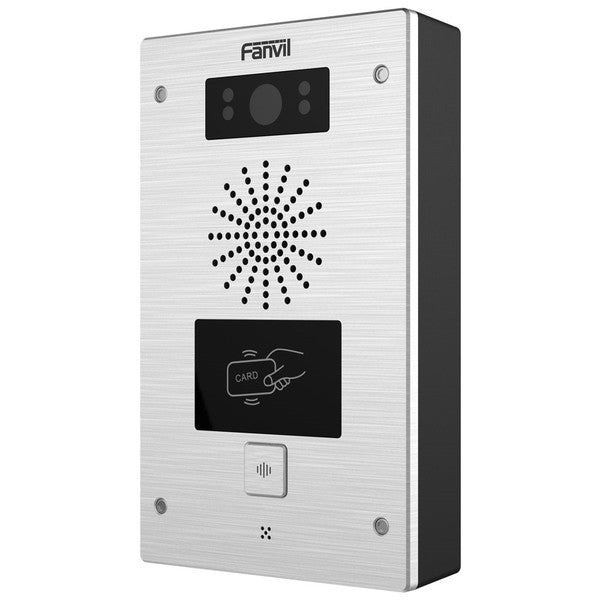

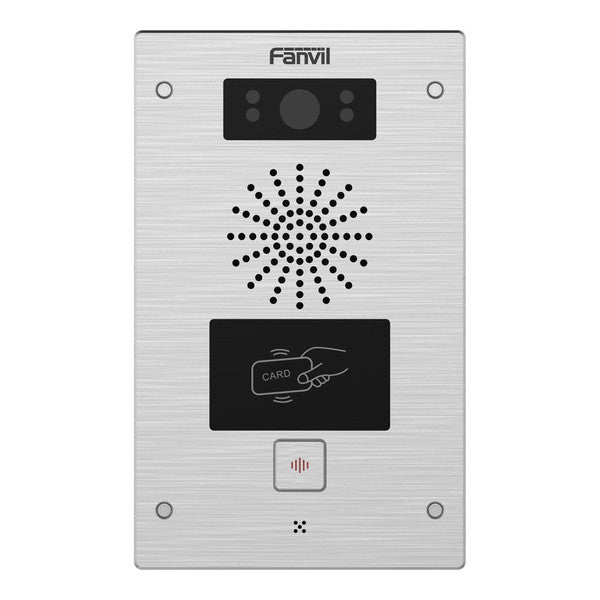

The Fanvil I32V is a high-end all-in-one access control, intercom, and broadcasting solution that withstands the outdoors and combines audio and dual video streams for all-day site protection. The Fanvil I32V supports RFID/IC cards, remote DTMF, and indoor door switches to open security doors with magnetic locks.
- 2 SIP lines
- 1 DSS key (Intercom/speed dial/etc)
- HD Audio (G.722) with 3 watt speaker
- HD Video
Product Highlights
This Fanvil intercom is waterproof and dustproof (IP65), anti-collision standard (IK10), and compatible with most VoIP platforms including 3CX, Asterisk, Broadsoft.
Product Information
Standard Information
-
Brand: Fanvil
-
Manufacturer Part Number: I32V
-
Country of Origin: Hong Kong
Technical Specifications
-
Phone Type: IP (SIP)
-
Lines: 2
-
Connection: RJ-45 Network (PoE)
-
Relays: (2) relays: MAX DC30V / 2A, AC125V / 0.5A
-
Active switching output: 12V / 500mA DC(only 1 relay support)
-
Camera Codec: H.264
-
Camera Resolution: main stream 1280×720@25fps Sub-stream 704×576(D1)@25fps
-
Camera Viewing angle: 112° (H), 84° (V)
-
Audio Profiles Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB
-
Audio Profiles Wideband Codec: G.722
-
Audio Profiles: Full-duplex Acoustic Echo Canceller (AEC) Hands-free Mode, 96ms tail-length Voice Activity Detection (VAD)
-
Additional Information: RFID reader Support ONVIF protocol DSS button
-
Ethernet Port: 10/100
-
PoE: yes
-
Additional Interfaces: Wiegand port, Audio output interface, Recording output interface, 2x embedded short circuit input interface, 2x relays, 2x door magnetic detection interface, Tamper alarm switch
-
RFID: 125 kHz, 13.56 MHz
-
Camera Sensor: 1/2.7" color CMOS, 2MP
-
Minimum Illumination: 0.1 lux
-
Operating Temperature: -40°F - 158°F
-
Durability Ratings: IP65, IK10
-
Unlock door method: DTMF, RFID/IC card, indoor switch, WEB page
-
Remote access list: Support 2000
-
RFID/IC cards: Support 2000
-
Door open records: Support 200,000
-
Electric lock power supply: Support electric lock internal or external power supply options
-
Multicast function: Dynamic multicast function
-
ONVIF: Support ONVIF
-
Customized DSS keys: Support customized DSS keys
-
Network Time Synchronization: Yes
-
Action URL / Active URI: Yes
-
Acoustic Echo Canceller (AEC): Full-duplex, Hands-free Mode, 96ms tail-length
-
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE): Yes
-
Packet Loss Concealment (PLC): Yes
-
litter Buffer: Dynamic Adaptive litter Buffer up to 300ms
-
DTMF: In-band, Out of Band DTMF (RFC2833) / SIP INFO
-
Sensor: 1/2.7” colour CMOS
-
Megapixels: 2 Megapixels
-
Video Codec: H.264
-
Resolution: mainstream 1280×720@25fps, Sub-stream 704×576(D1)@25fps
-
Viewing angle: 112° (H), 84° (V)
-
Minimum illumination: 0.1Lux, support for infrared illumination
-
Ethernet: 10/100 Mbps
-
IP Configuration: Static / DHCP / PPPoE
-
Network access authority authentication: 802.1x
-
VPN: L2TP / OpenVPN
-
VLAN: Yes
-
LLDP: Yes
-
Protocols: SIP2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, LLDP, PPPoE, 802.1x, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, TR-069
-
Auto-Provisioning: via FTP/TFTP/HTTP/HTTPS/DHCP/TR-069/SIPPNP
-
Web Management Portal: Yes
-
Web-based Packet Dump: Yes
-
Configuration Import/Export: Yes
-
Firmware Upgrade: Yes
-
Syslog: Yes
-
DSS button: 1 (speed dial button)
-
RJ45 port: 1
-
door magnetic detection interface: 2
-
tamper alarm switch: 1
-
RFID reader: ID (EM4100,125KHz) & IC(MIFARE ONE,13.56MHz)
-
Power: DC12V/1A or PoE
-
Housing material: aluminium alloy shell
-
Protection level: IP65 and IK10
-
Installation: Wall-mounting
-
Working temperature: -40 ~ 70 °C
-
Storage temperature: -40 ~ 70 °C
-
Relative humidity: 10% – 90%
-
SIP Lines: 2
-
Handsfree: Full-duplex
