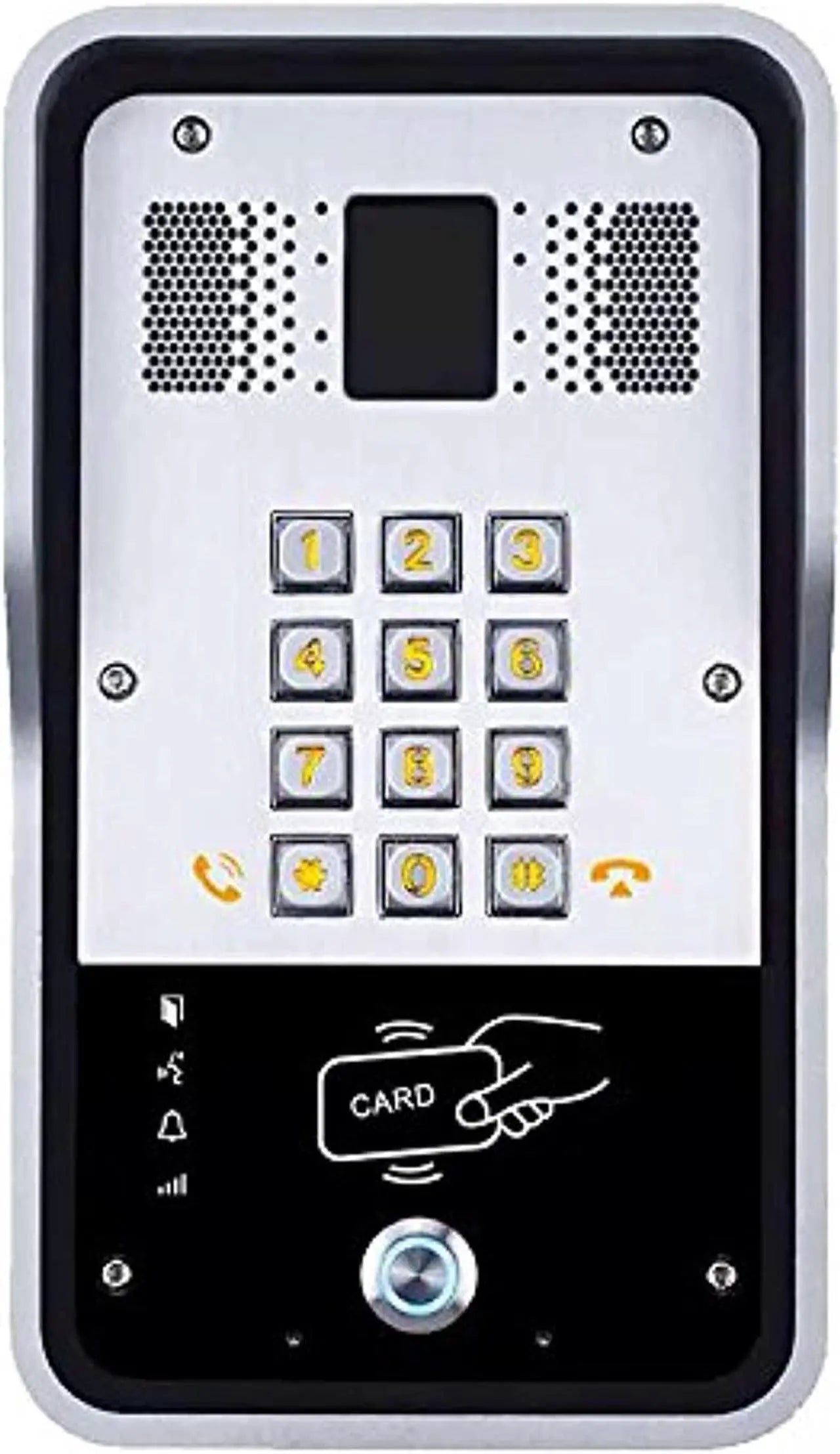

Fanvil I31S Video Door Phone

Product Description

The Fanvil I31S Video Door Phone is designed with the experience and knowledge of Fanvil IP phone development. The I31S uses standard IP/RTP/RTSP protocol for voice transmission and is compatible with platforms like 3CX, Asterisk, and Broadsoft. Designed for outdoor operation, its robust mechanical construction offers IP65 dust and water protection. It provides access control by call, code, and RFID card.

• Features two high sensitivity microphones with echo cancellation and noise reduction.
• Includes a 3W speaker for loud environments.
• Water, dust, and tamper-proof, certified to IP65 and IK10 standards.

Product Highlights

The I31S offers door access, intercom, and paging service with a night vision color camera and integrated electrical switch relay for door control.

Product Information

Standard Information

• Brand: Fanvil
• Manufacturer Part Number: I31S

Technical Specifications

• Buttons Number of buttons: 1
• Number of keypads: Optional
• Audio Microphone: 2
• Loudspeaker: 3 W Noise Reduction ( NR)
• Audio steam Codec: G. 711, G. 729, G. 722
• Camera View angle: 120 ( H), 109 ( V)
• IR Night Vision: Yes
• Video stream Codec: H. 263, H. 263+, H. 264
• Resolution: CIF, QCIF, VGA, 4 CIF, 720 P ( HD)
• RFID Card reader Supported cards: EMa4100, MIFARE one, NFC
• Interface Power supply: 12 V+ 15%/1 A DC or Po E
• POE: 802.3 af ( Class 0 a 12.95 W) 48 V/380m A
• LAN: 10/100 BASEa TX s Autoa MDIX, RJa45
• Relay outputs: NC/ NO Contacts, MAX 30 V/1 A AC/ DC
• Active relay output: 12 V/700m A DC
• Input: two Input detect ports
• Output (2 relays): two output control ports
• Housing material: Aluminum alloy
