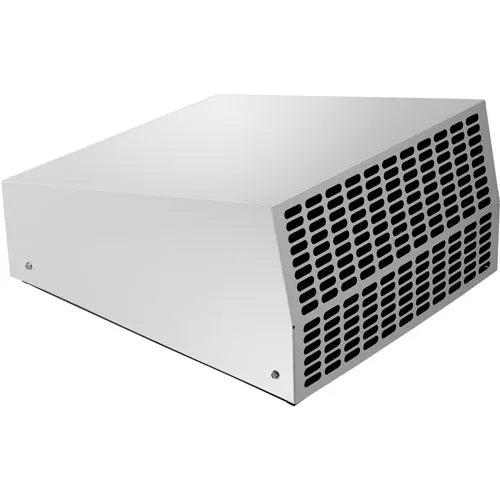

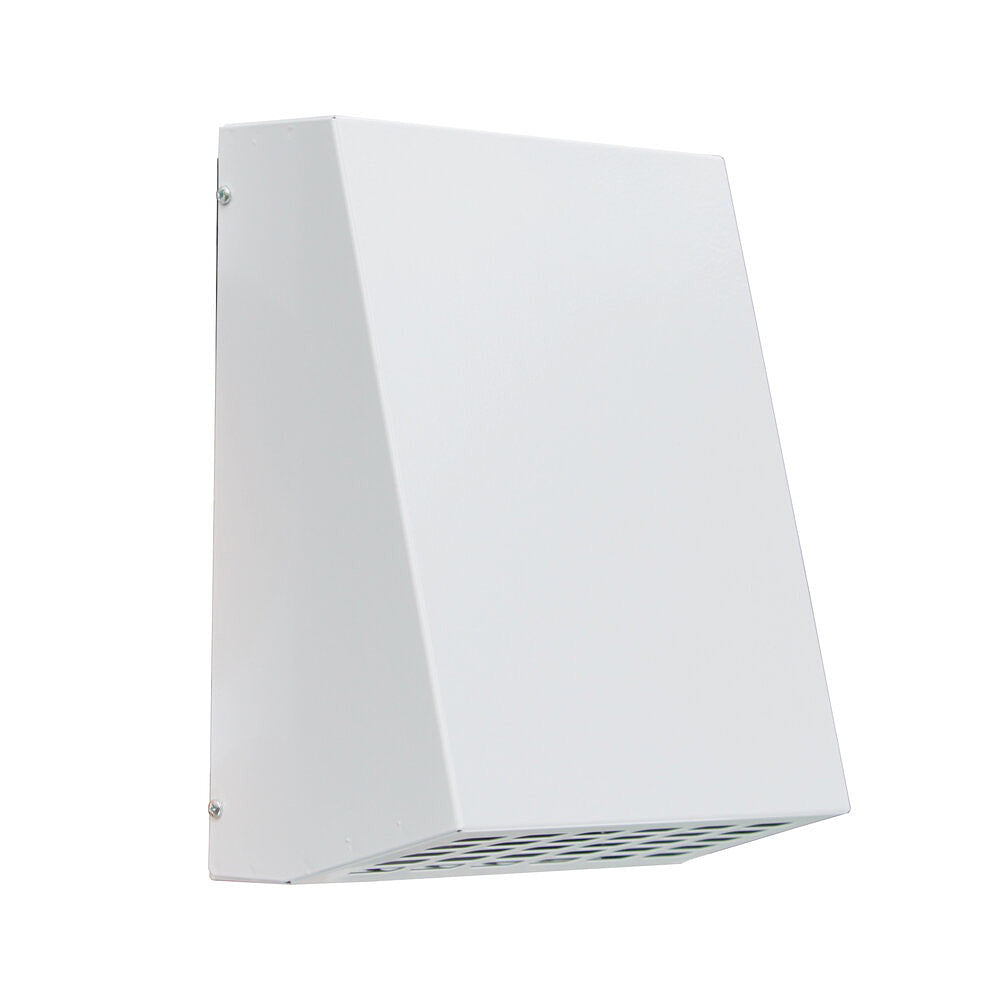

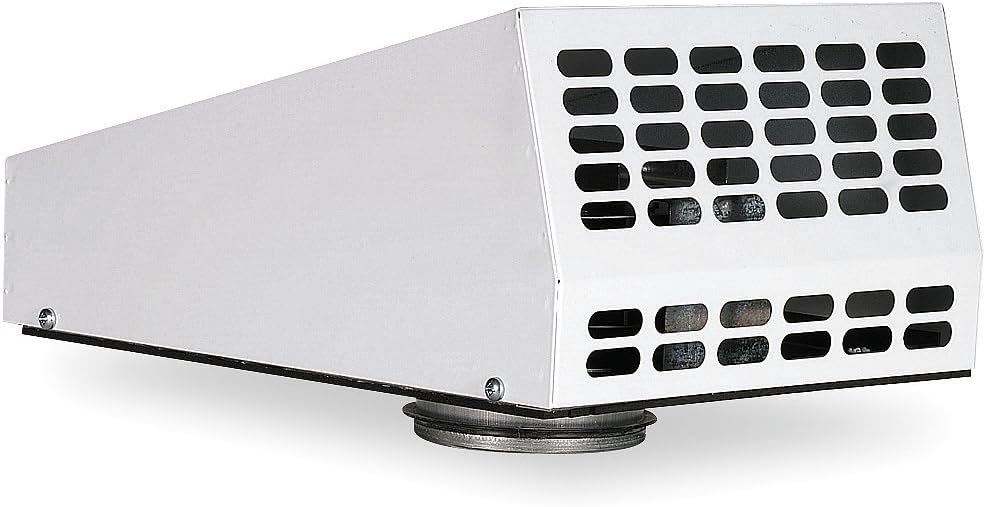

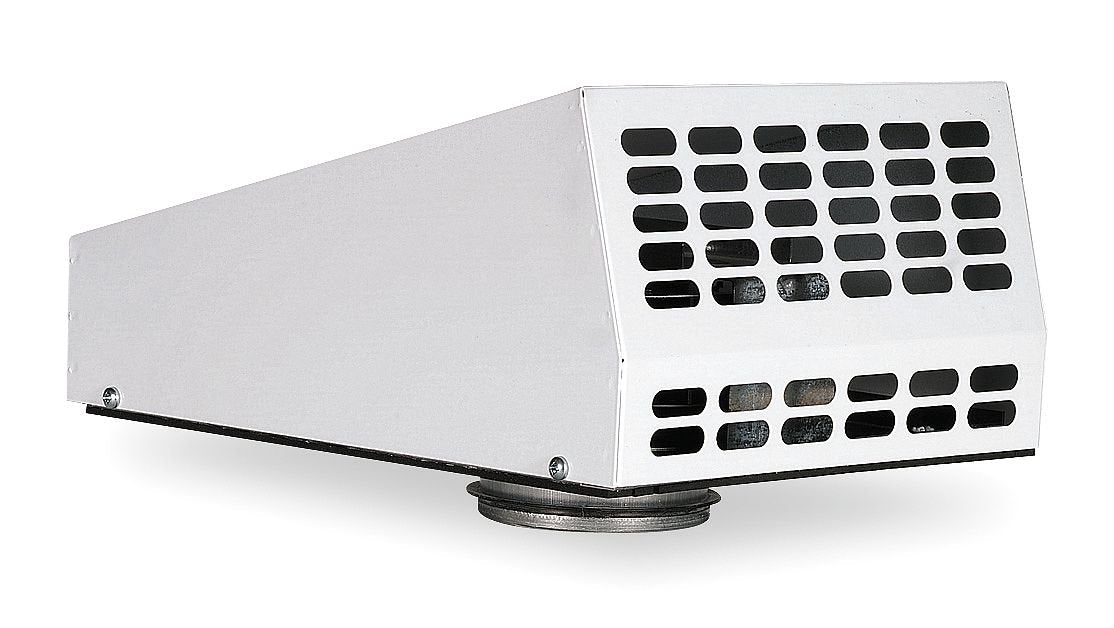

Fantech RVF4XL RVF Series Exterior Wall Mount Exhaust Fan 115V 4 Inch Duct

Product Description

The FANTECH RVF4XL Centrifugal Exterior Duct Fan features a galvanized steel housing, ideal for direct through-wall ventilation in residential or commercial applications. This 115-volt model delivers up to 193 CFM maximum airflow and is constructed with a 4-inch round duct. Its design allows for quiet operation by mounting to the outside wall, minimizing indoor noise. The fan is UL and CSA listed, ensuring safety and compliance for various installations.

• Permanently Lubricated Sealed Ball Bearings extend the service life of the fan.
• External Rotor Motor allows operation in high-moisture or dust-laden areas.
• 100% Speed Controllable through voltage reduction for on-demand ventilation and precision balancing.

Product Highlights

Exterior wall mount design for quiet operation, 193 CFM airflow, and 4-inch duct connection.

Product Information

Standard Information

• Brand: FANTECH
• Manufacturer Part Number: RVF4XL

Technical Specifications

• UPC: 650737230456
• Phase: 1
• Input Voltage: 115 Volts
• Certifications: UL Listed, CSA Listed, cUL, HVI, cULus, cCSAus
• Width: 10 1/2 Inches
• Product Type: Exterior Duct Fan
• Height: 13 Inches
• Length: 6 Inches
• Frequency: 60 Hz
• Duct Connection: 4 Inches
• Current Draw: 0.84 Amps
• Maximum Airflow: 193 CFM
• Mount Type: Wall
• Product Line: RVF
• Housing Material: Galvanized Steel
• Style: Modern
• Finish: Powder Coated
• Wattage: 92.00
• Room Type: Bedroom
• Power Source: Corded Electric
• Blade Material: Plastic
• Batteries Included: No
• Batteries Required: No
• Electric Fan Design: Exhaust Fan
• Recommended Uses: Exhausting
• RPM: 2504 rpm
• Motor Type: Permanent Split Capacitor, Totally Enclosed External Rotor Motor
• Speed Controllable: Yes
• Weight: 10 lbs
