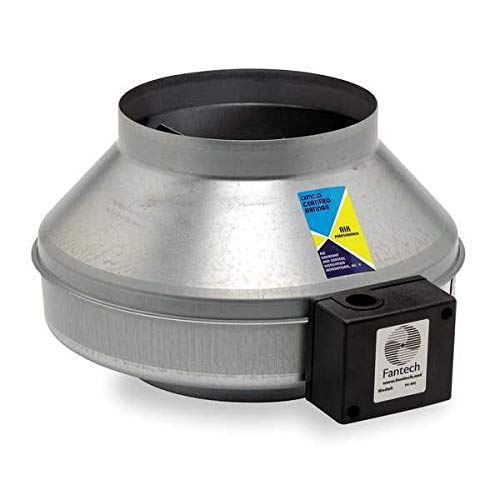

Fantech FG6 Inline Centrifugal Duct Fan 6 In. Dia. Replacement

Product Description

The Fantech FG6 is an inline centrifugal duct fan designed for efficient air circulation. With a duct diameter of six inches, it operates at a voltage of 120 volts and has a maximum current draw of zero point sixty-eight amps. The fan features a galvanized steel housing, ensuring durability and long-lasting use.

• Airflow capacity of three hundred three CFM at the duct

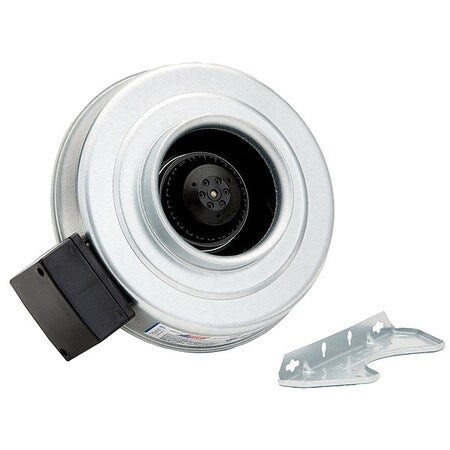

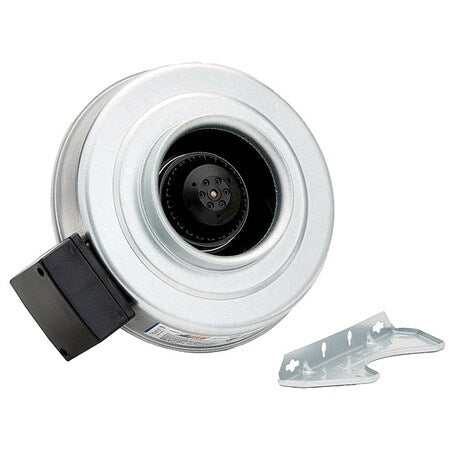

• Includes a mounting bracket for easy installation
• Lightweight and compact dimensions for versatile application

Product Highlights

Ideal for general-purpose ventilation, this fan operates at a maximum power of seventy-two watts and offers a single speed setting.

Product Information

Standard Information

• Brand: Fantech
• MPN: FG6

Technical Specifications

• Diameter: 11 3/8 inches
• Max Amps: 0.68 A
• Motor RPM: 2700
• CFM at 0.000-In. SP: 303
• Housing Material: Galvanized Steel
• Max Inlet Air Temperature: 140 degrees F
• Overall Height: 13 3/8 inches
• Overall Width: 7 1/2 inches
• Speed Control Included: No
• Application: General Purpose
