Fantech DEDPV-705 Dryer Exhaust Duct Power Ventilator 120V 4 in

Product Description

The FANTECH DEDPV-705 is a dryer exhaust duct power ventilator that helps dryers operate more efficiently. It assists the dryer in overcoming pressure losses caused by long or restricted exhaust duct designs, or the effects of high altitudes, resulting in faster drying times. It complies with UL 705 standards and is suitable for gas and electric clothes dryers.

• Dryer exhaust duct power ventilator
• Certified by UL to the DEDPV requirements of UL705
• Temperature thermal fuse shuts down the fan in case of fire

Product Highlights

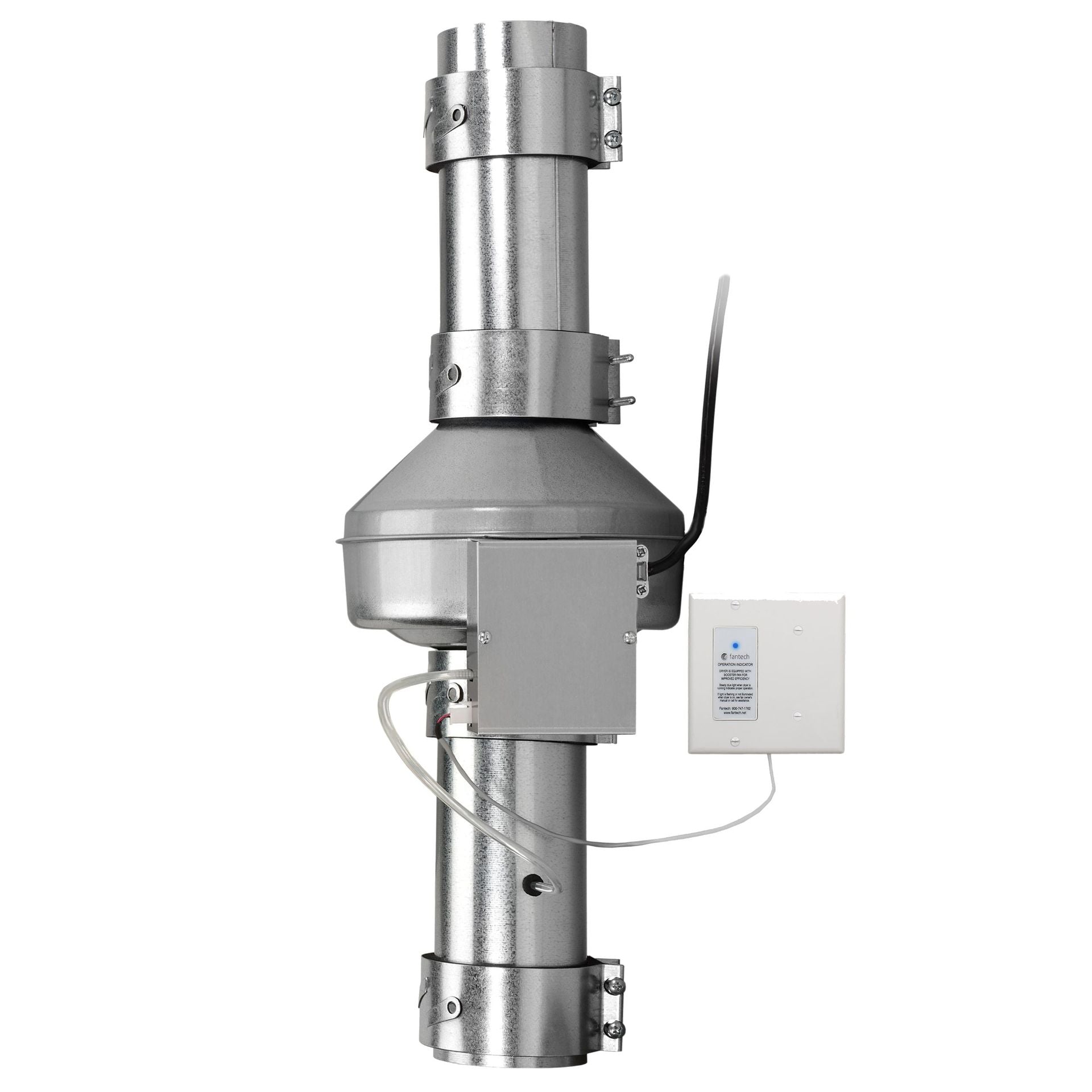

This ventilator features a pressure switch for automatic operation and includes a wall-mounted indicator panel. It supports duct runs up to 125 linear feet.

Product Information

Standard Information

• Brand: FANTECH
• Manufacturer Part Number: DEDPV-705
• Country of Origin: Germany

Technical Specifications

• Hz: 60 Hz
• Watts: 83 W
• Voltage: 120v
• Duct Diameter: 4 in
• Max Amps: 0.75 A
• Motor RPM: 2,600 RPM
• Housing Diameter: 9 11/16 in
• CFM @ 0.000-In. SP: 170 cfm
• CFM @ 0.200-In. SP: 150 cfm
• CFM @ 0.400-In. SP: 134 cfm
• CFM @ 0.600-In. SP: 119 cfm
• CFM @ 0.800-In. SP: 103 cfm
• CFM @ 1.000-In. SP: 86 cfm
• Product Type: Ventilation System
• Length (Inches): 15"
• Width (Inches): 12"
• Height (Inches): 16"
• Amperage: 0.73
• Air Flow Capacity: 134 Cubic Feet Per Minute
• Speed: 2800 RPM
