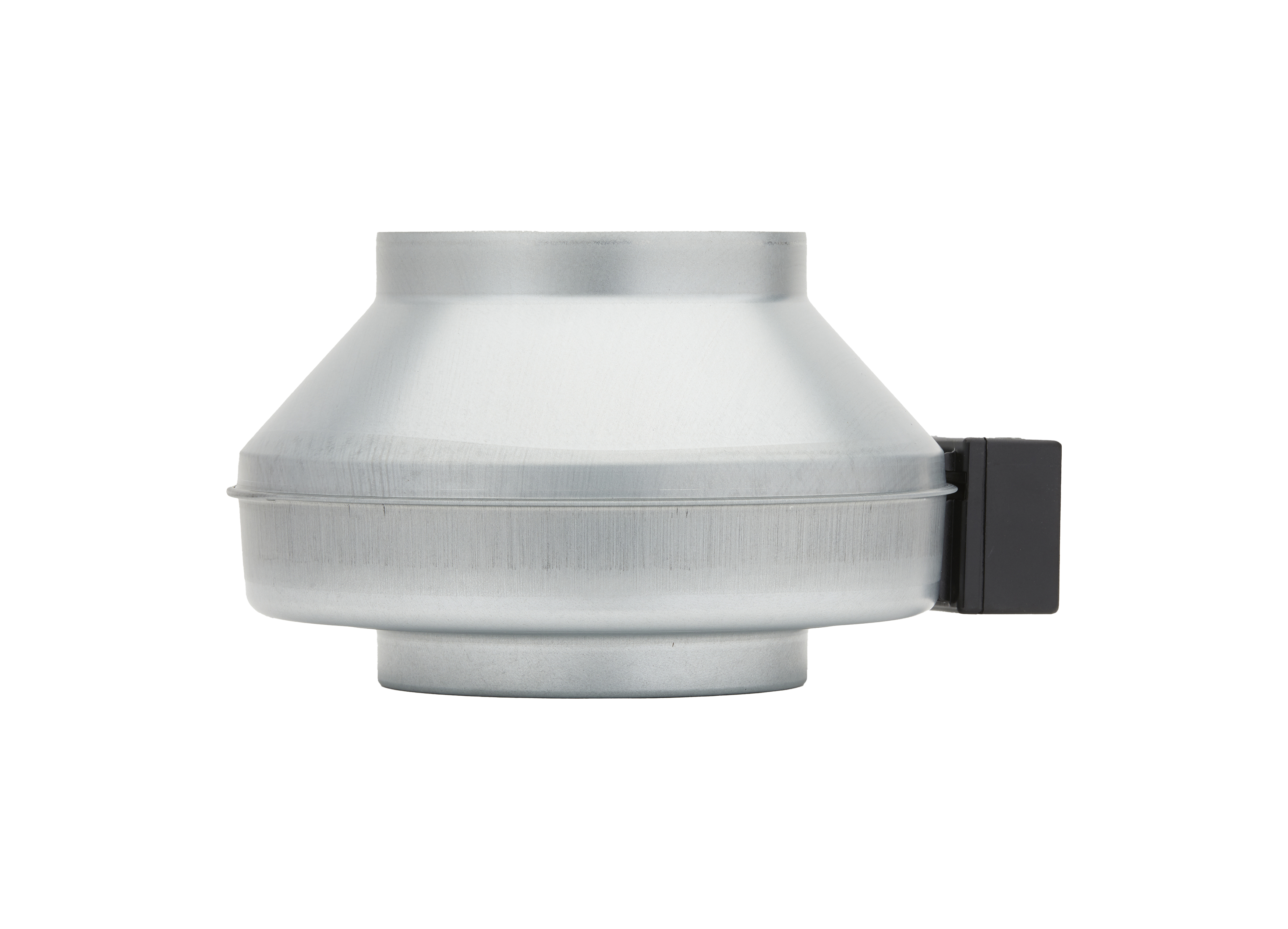

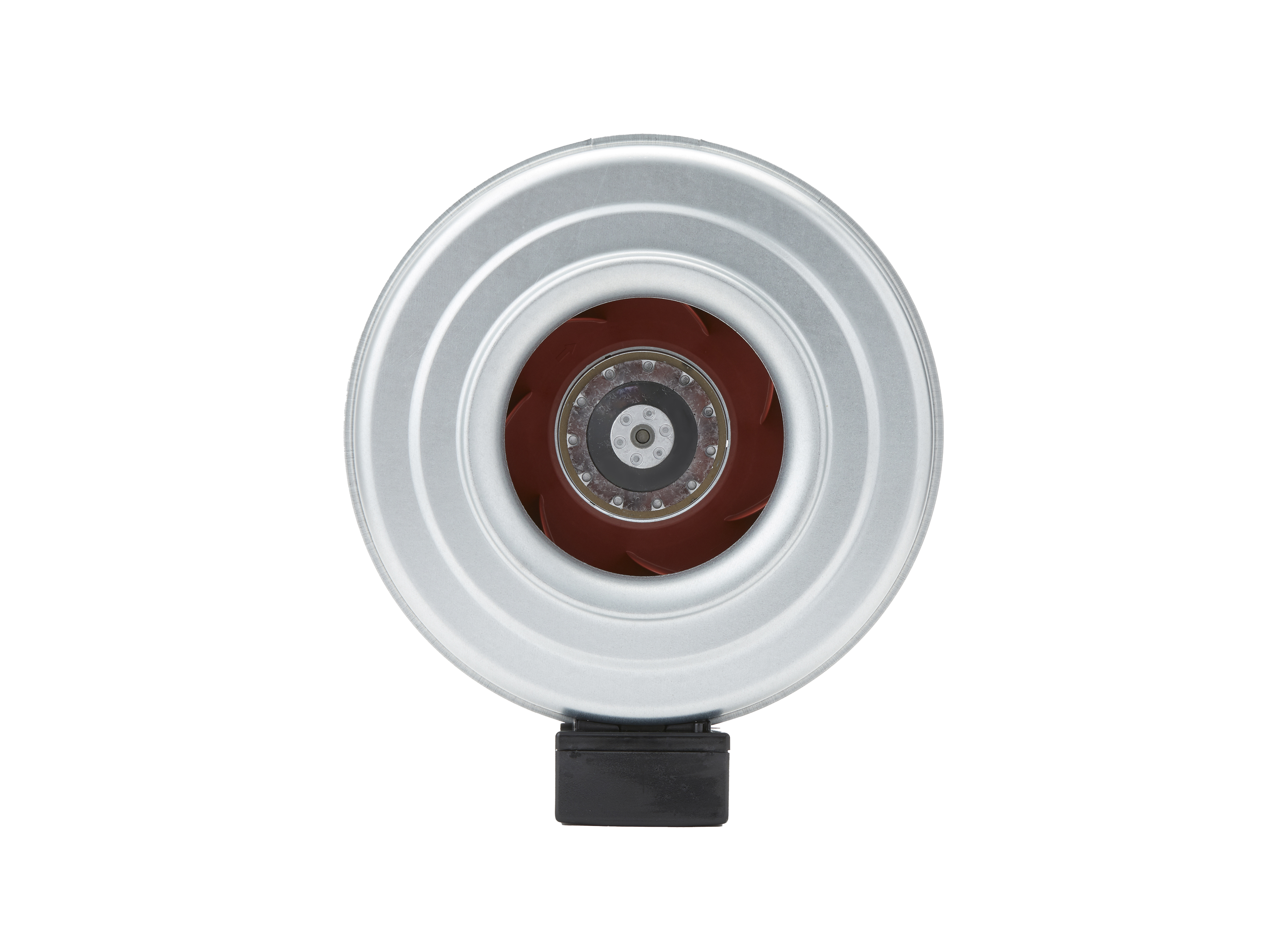

FANTECH 40406 FG Series Centrifugal Inline Fan 120V 8 inch

Product Description

The FANTECH FG Series Centrifugal Inline Fan, MPN 40406, is suitable for applications needing low to moderate airflow. Made with a galvanized steel housing, this fan is effective for both residential and commercial installations. It can be positioned at any angle within ductwork and includes built-in thermal overload protection that resets automatically. This fan is intended for indoor setups and can handle airstream temperatures up to one hundred forty degrees Fahrenheit.

• Durable galvanized steel housing ensures leak-free operation.

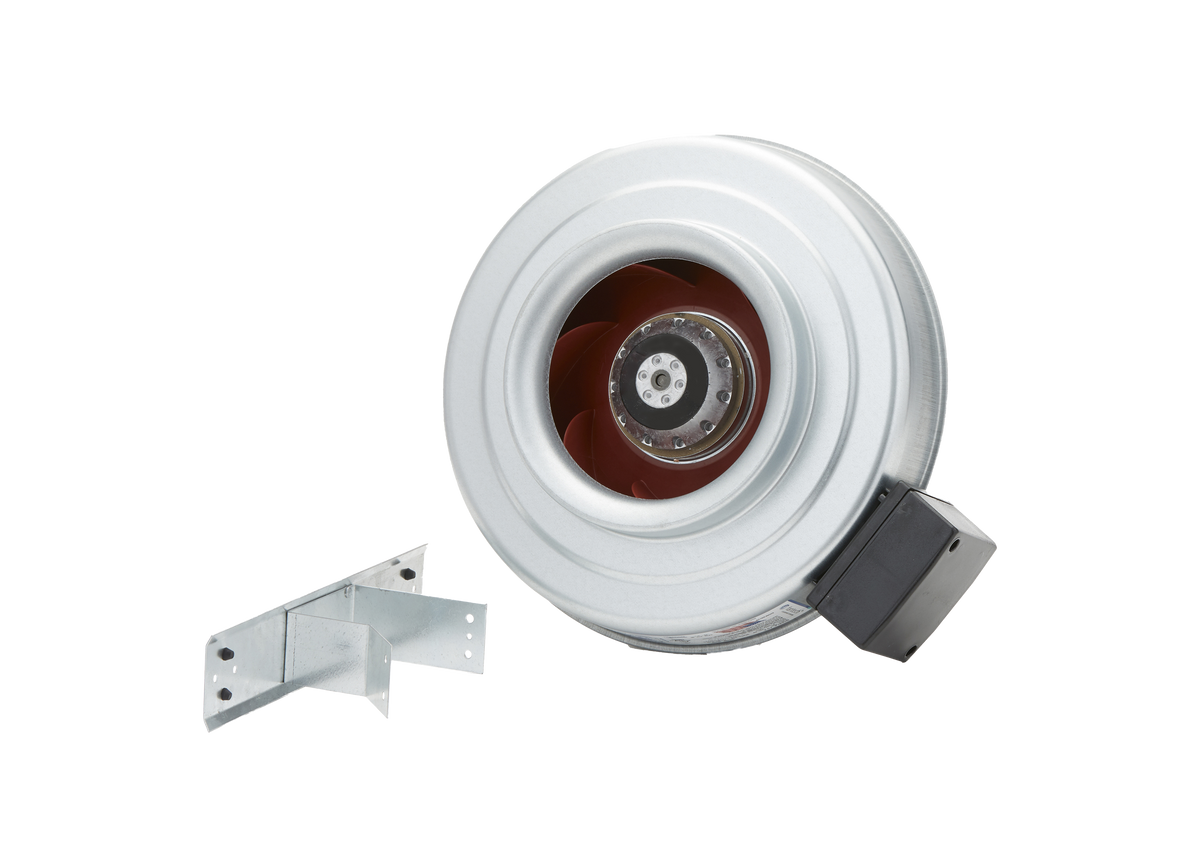

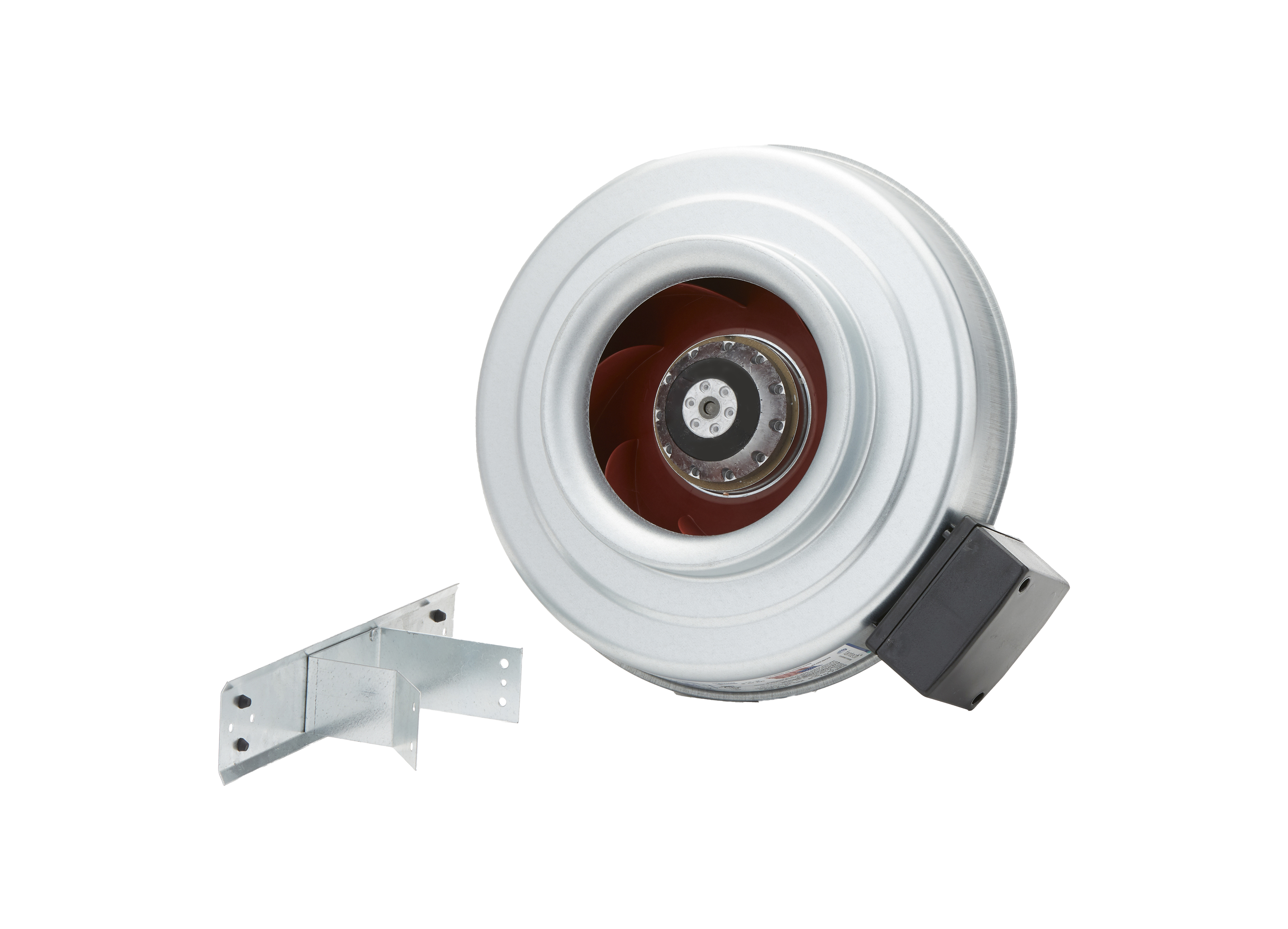

• Includes mounting bracket and hardware for straightforward installation.
• Equipped with built-in thermal overload protection for safety.

Product Highlights

This inline fan is designed to improve air circulation efficiently in various settings, such as homes and offices.

Product Information

Standard Information

• Brand: Fantech
• Part Number: 40406

Technical Specifications

• Voltage: 120 V
• Frequency: 60 Hz
• Input Power: 147 W
• Input Current: 1.32 A
• Impeller Speed: 3,031 rpm
• Air Flow: max 477 cfm
• Operating Temperature: max 140 °F
• Duct Dimension, Inlet: 8 in.
• Duct Dimension, Outlet: 8 in.
• Motor Type: AC
• Material: Metal
• Static Pressure: 0.20 In. Wg.
• Rated Airflow: 450 CFM
• Rated Power: 138 Watts
• Weight: 8 lbs
• Product Dimensions: 11.38 inches x 11.38 inches x 8 inches
• Certificate: cUL/UL Listed, Energy Star
