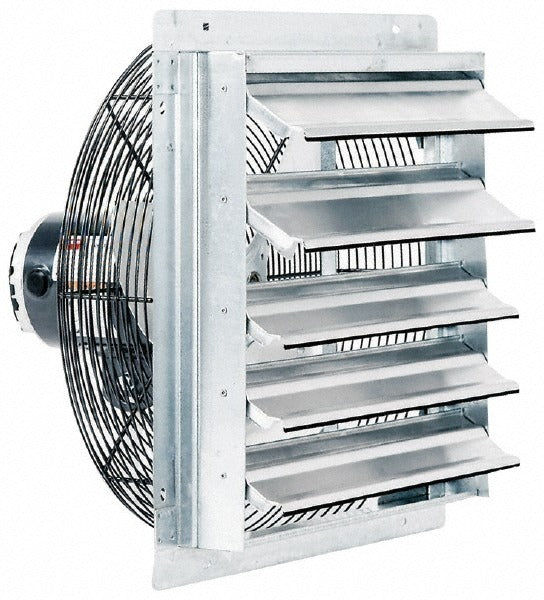

Fantech 2SHE30C1 Direct Drive Exhaust Fan 6075 Cfm

Product Description

The FANTECH 2SHE30C1 is a direct drive exhaust fan built for high-volume ventilation in commercial and industrial applications. Equipped with a 30-inch blade and rated at 6,075 CFM maximum airflow, it moves large quantities of air efficiently without the added complexity of belt and sheave systems. The motor runs on 115 volts, single phase, drawing 4.4 amps, and is rated at 1/3 horsepower. The unit supports both vertical and horizontal mounting orientations, giving installers flexibility in how and where it is deployed. The galvanized steel construction stands up to demanding environments. This fan is intended for installation by licensed HVAC technicians or mechanical contractors.

The 2SHE30C1 is suited for commercial warehouses, manufacturing facilities, agricultural buildings, and large mechanical rooms where sustained high-volume air movement is required. Its single-speed, direct drive configuration keeps maintenance requirements low and makes it a practical choice for continuous-duty ventilation tasks. Vertical or horizontal mounting adaptability allows it to fit a range of wall, roof, or structural installations depending on the application layout.

Key Features

• 30-inch blade diameter for high-volume airflow up to 6,075 CFM
• Direct drive design eliminates belts and sheaves, reducing maintenance
• Supports vertical and horizontal mounting orientations
• Galvanized steel construction for corrosion resistance in demanding environments
• Single-phase, 115-volt operation suitable for standard commercial power
• 1/3 horsepower motor at 4.4 amps draw

Compatibility

Designed as an OEM-style direct drive exhaust fan for commercial and industrial ventilation systems requiring a 30-inch blade with single-phase electrical supply.

Installation Notes

Installation should be performed by a qualified HVAC technician or licensed mechanical contractor in accordance with local mechanical codes and manufacturer guidelines. Disconnect and lock out all power to the circuit before beginning any wiring or mounting work. Ensure the mounting structure is rated to support the fan assembly weight before securing the unit. Verify airflow direction and mounting orientation are correct prior to final electrical connection.
