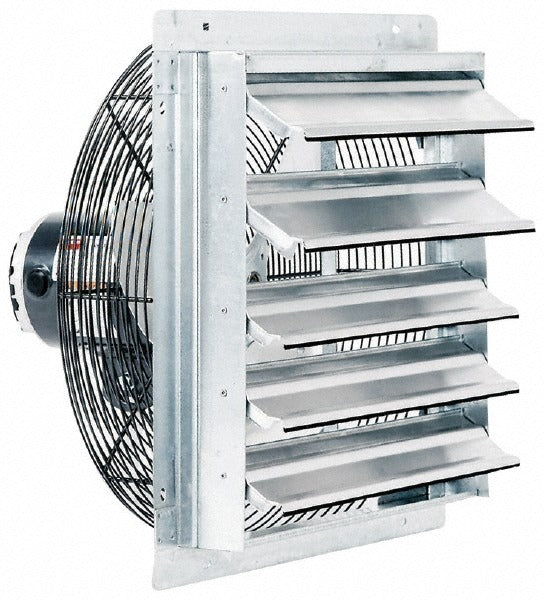

Fantech 2SHE24B1W Direct Drive Fan 3240 Cfm 24 Inch

Product Description

The FANTECH 2SHE24B1W is a direct drive exhaust and ventilation fan built for industrial and commercial airflow applications. It moves up to 3,240 CFM through a 24-inch galvanized steel blade assembly powered by a 1/4 horsepower single-phase motor. Operating at 115 volts and 3.7 amps, it is designed for reliable, continuous-duty performance in demanding environments. The unit supports both vertical and horizontal mounting configurations, giving installers flexibility across a wide range of duct and structural orientations. HVAC technicians and mechanical contractors are the primary installers for this class of equipment.

This fan is suited for commercial and light industrial ventilation, including warehouse exhaust, equipment room air movement, agricultural ventilation, and process cooling applications. Its direct drive design eliminates belt and pulley maintenance, reducing long-term service requirements. The single-speed motor keeps wiring and controls straightforward, making it a practical choice for retrofit and new-construction installations where consistent, high-volume airflow is the primary requirement.

Key Features

• 3,240 CFM maximum airflow capacity for high-volume ventilation
• 24-inch blade diameter in galvanized steel construction for corrosion resistance
• Direct drive motor eliminates belt and pulley maintenance
• Dual-orientation mounting supports vertical or horizontal installation
• Single-phase, 115-volt operation compatible with standard commercial power
• Single-speed motor simplifies wiring and control integration

Compatibility

Designed as an OEM-style direct drive ventilation fan for commercial and light industrial exhaust systems requiring a 24-inch blade and single-phase power supply.

Installation Notes

Installation should be performed by a licensed HVAC technician or mechanical contractor in accordance with applicable local mechanical codes and ASHRAE ventilation standards. Disconnect and lock out all power to the circuit before mounting or wiring the unit. Verify that the mounting structure is rated to support the fan weight and that duct connections are sealed to prevent air bypass. Do not operate the fan without proper guarding in place per OSHA and local safety requirements.
