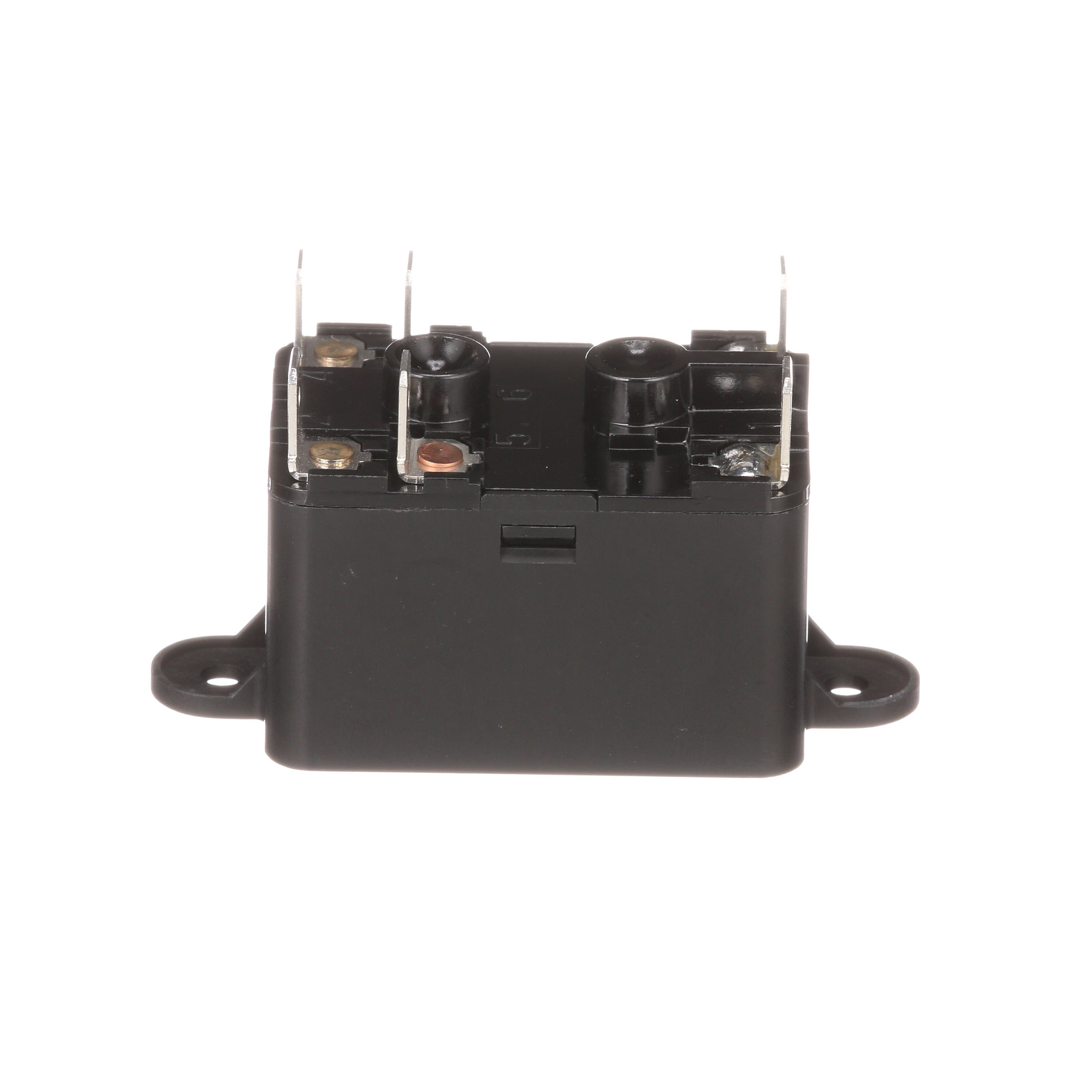

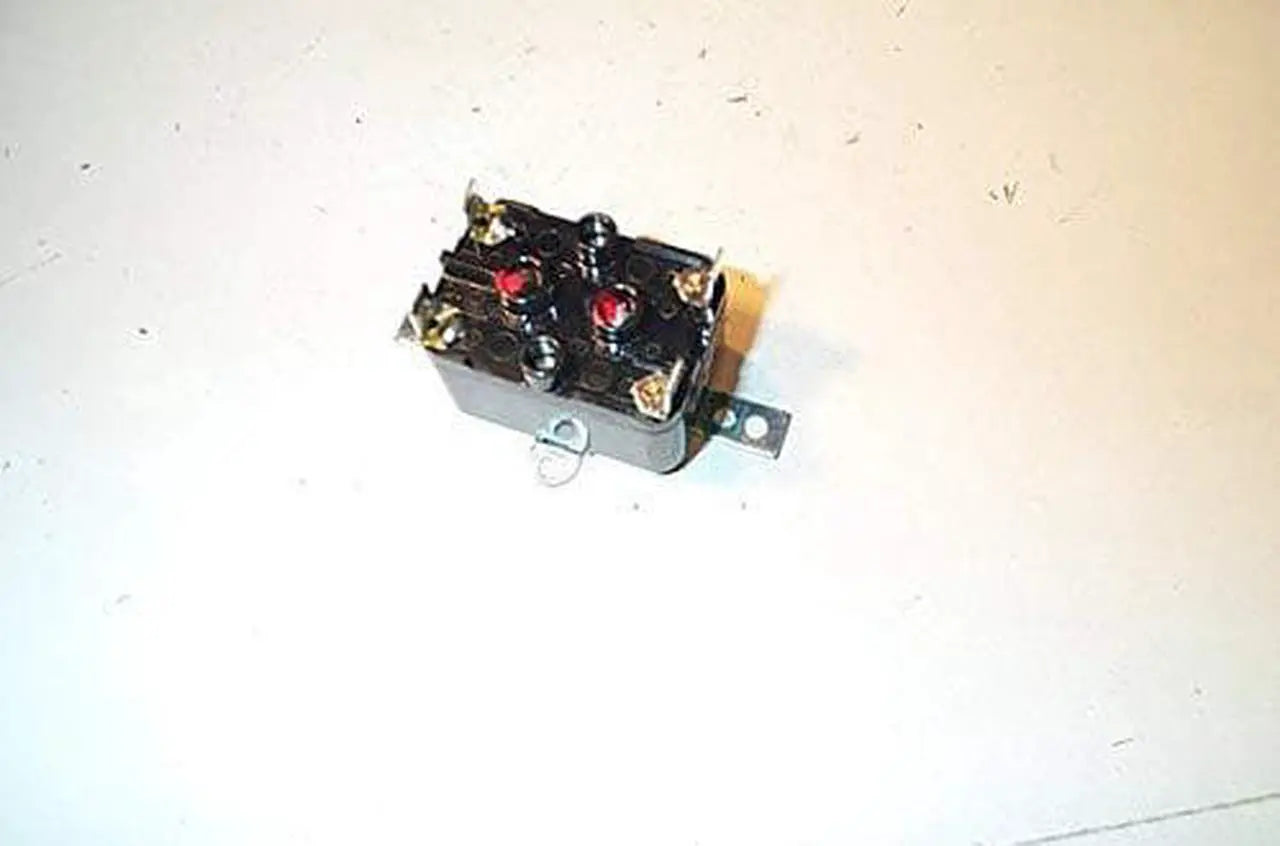

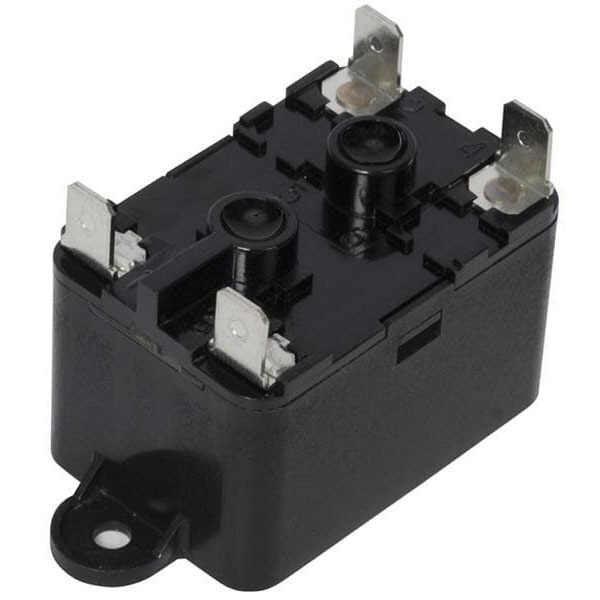

White-Rodgers 90-362 Fan Relay 120V Coil

Product Description

The WHITE-RODGERS 90-362 Fan Relay features a 120V coil and SPNO contacts, operating at 50/60 Hz. Contacts are Ind: 12A@125V; 8A@250V Cont. Res: 18A@277V Cont. This heavy-duty general purpose relay is designed for heating and cooling applications and general switching. It has a compact, totally enclosed design and operates in any position.

• 120V coil operation
• SPNO contacts
• Suitable for heating and cooling applications

Product Highlights

This fan relay is designed for general purpose use in various applications. It provides reliable and economical performance.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 90-362
• Country of Origin: China

Technical Specifications

• Voltage: 120 V
• Hertz: 50/60
• Type: SPNO
• DC Resistance: 2000 ohms
• mA: 25
• Inrush: 4
• Duty: Continuous
• Electric Connection: 1/4" Quick-Connect Terminals
• Temperature Range (F): -40°F to 150°F
