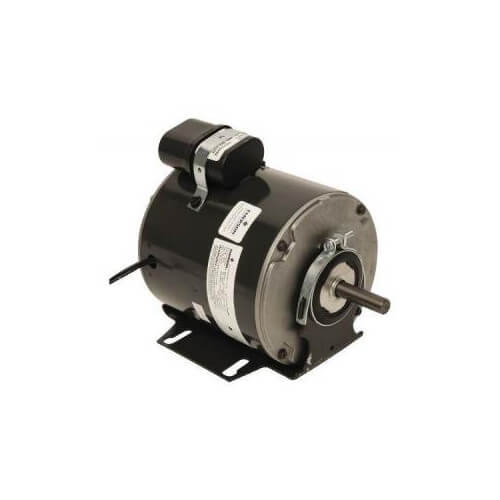

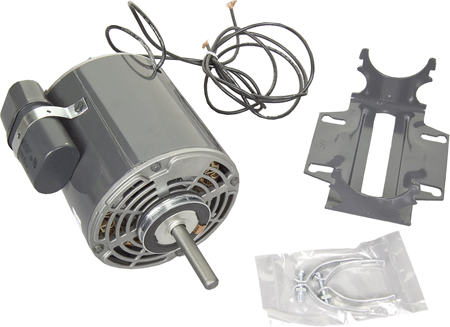

Copeland 950-0248-00 Fan Motor 1/2HP 208-230V

Product Description

The Copeland fan motor 950-0248-00 is designed for HVAC systems in industrial and commercial settings. This motor operates at a horsepower of 1/2 and is compatible with electrical systems rated for 208 to 230 volts. Its efficient design promotes reliable performance and longer service life, essential for maintaining optimal air flow and temperature control.

• 1/2 horsepower for effective fan operation.
• 208-230 volts for easy integration into existing systems.
• Durable construction ideal for challenging environments.

Product Highlights

This motor is a suitable replacement for various fan applications, delivering the reliability needed in HVAC systems.

Product Information

Standard Information

• Manufacturer: Copeland
• Part Number: 950-0248-00

Technical Specifications

• Power Rating: 1/2 HP
• Voltage: 208-230 V
• Amperage: 4.1 A
• RPM: 1140
• Enclosure Type: Totally Enclosed
• Phase: 1
• Shaft Size: 1/2 inch diameter
• Rotation Type: CCWSE
