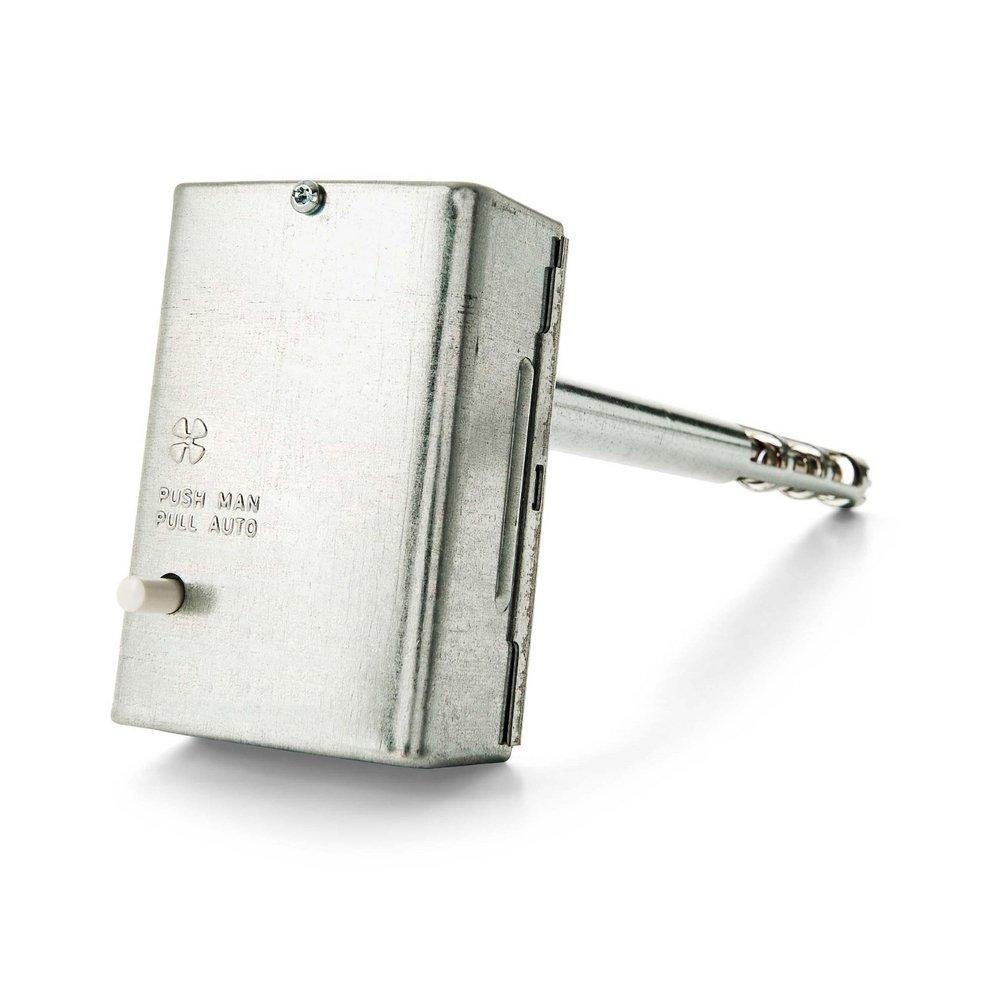

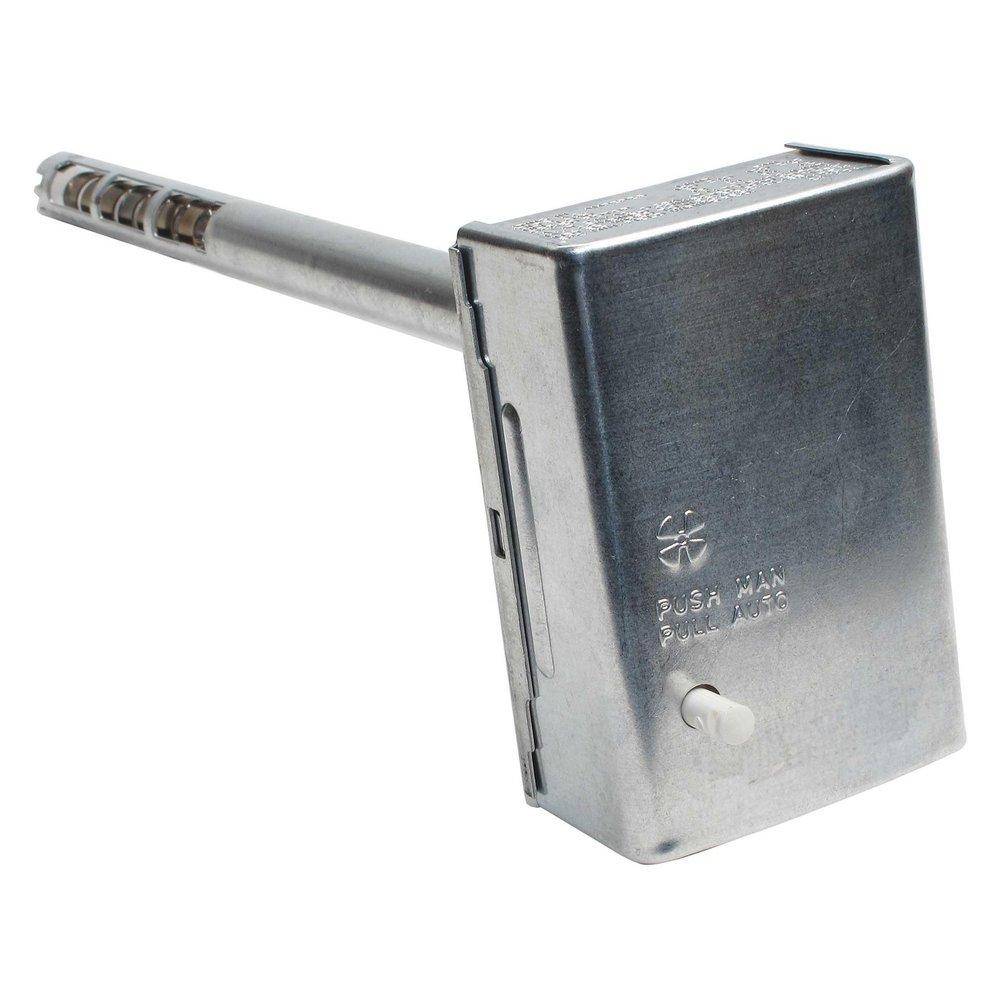

Resideo L4064B2210 Fan & Limit Controller 11.5 in Insert

Product Description

The Resideo L4064B2210 Fan & Limit Controller 11.5 in Insert is essential for managing the efficiency and safety of HVAC systems. Specifically designed for 11.5-inch insertion applications, it ensures accurate temperature sensing and reliable fan operation.

• Turns fan on and off based on air temperature
• Prevents overheating and damage to HVAC equipment
• Easy to install with multiple terminal options

Product Highlights

Includes manual fan switch that overrides fan control for continuous operation. This device adapts to various competitive mounting holes, making it suitable for replacement applications.

Product Information

Standard Information

• Brand: Resideo
• MPN: L4064B2210

Technical Specifications

• High Limit Temperature Range (F): 100 to 250
• Fan on Range: 65 to 215
• Fan off Range: 50 to 200
• High Limit Stop: 200
• Low Limit Stop: 100
• Fan on Stop: 125
• Switching Action: Fan switch makes and high limit switch breaks on temperature rise
• Electrical Rating (AFL) 120 Vac: Fan 14A, Limit 8A
• Electrical Rating (AFL) 240 Vac: Fan 7A, Limit 4A
• Electrical Rating (ALR) 120 Vac: Fan 84A, Limit 48A
• Electrical Rating (ALR) 240 Vac: Fan 42A, Limit 24A
• Operating Temperature Range (F): -40 to 190
• Element Length: 11.5 inches
• Weight: 1.31 lbs
