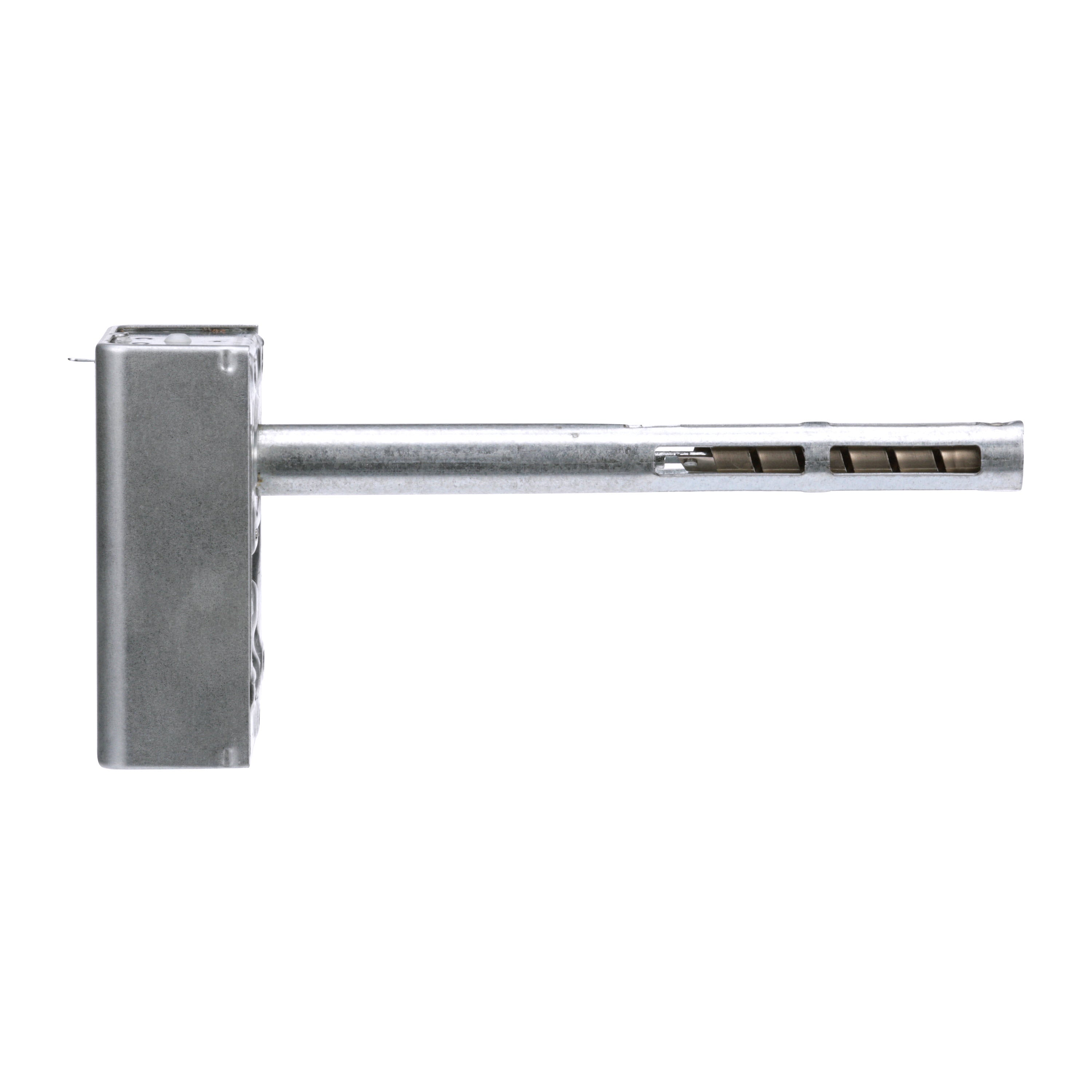

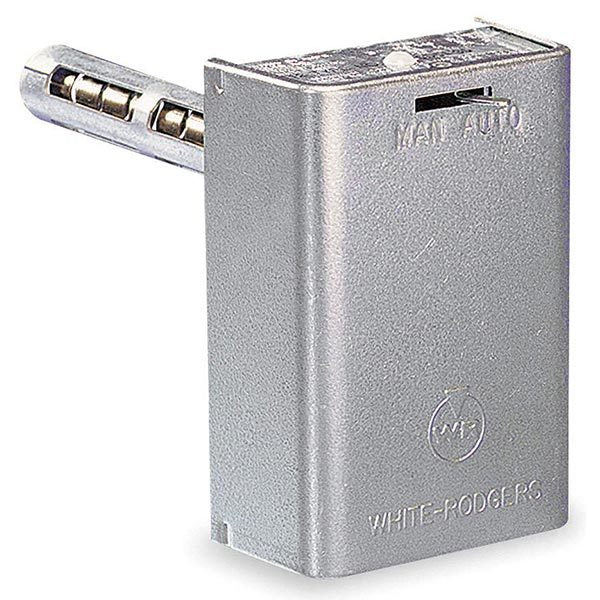

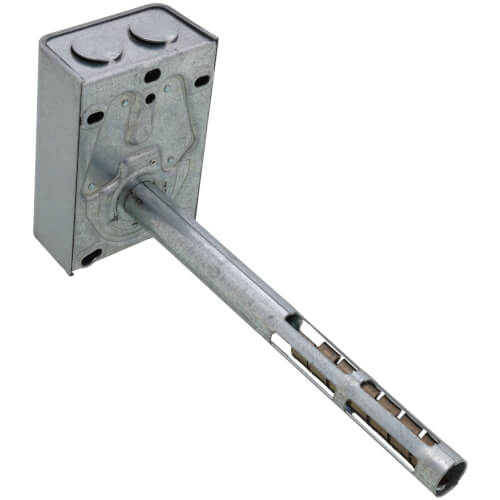

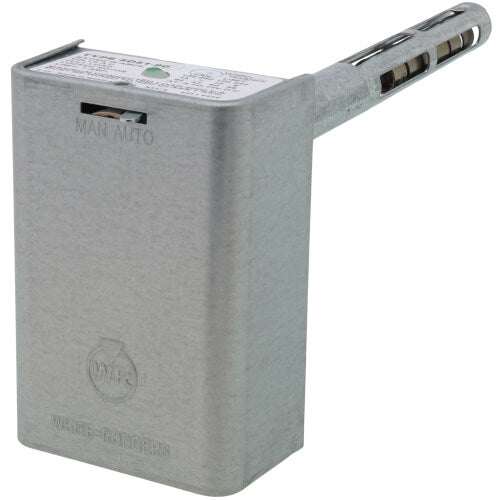

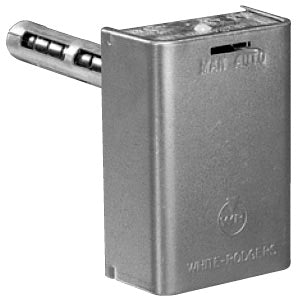

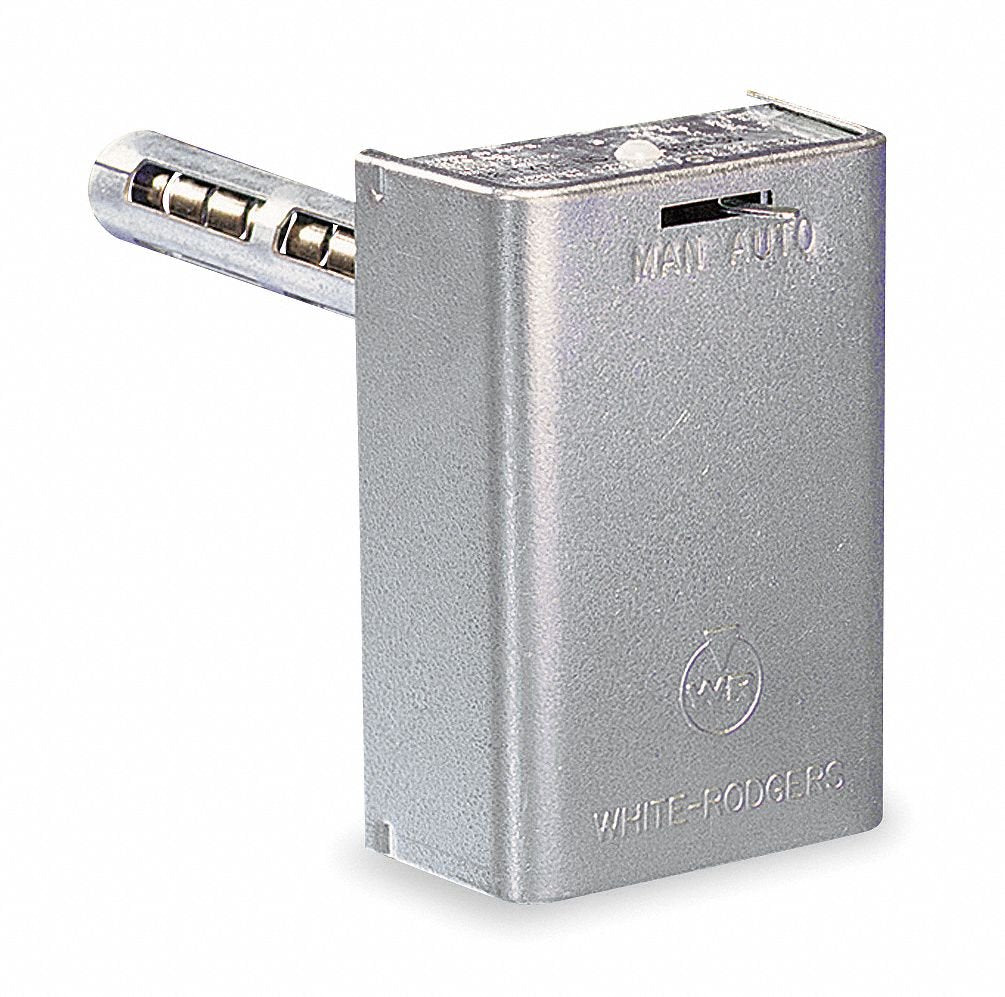

White-Rodgers 5D51-90 Fan and Limit Control 8 in

Product Description

The White-Rodgers 5D51-90 universal fan and limit control regulates fan or blower operation and acts as a high limit safety control. It features slotted mounting holes for easy installation and long terminal screws for wiring. The dial has individual pointers for fan cut-in and cut-out settings. Designed for applications with narrow space limitations.

• Slotted mounting holes for easy to install
• Long terminal screws for wiring, junctions can be made on terminal block
• Dial has individual pointers for fan cut-in and cut-out settings

Product Highlights

Regulates fan or blower operation and acts as high limit safety control. Features slotted mounting holes for easy installation.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 5D51-90
• Country of Origin: MX

Technical Specifications

• Contact Form: SPDT
• Country of Origin: MX
• Differential: 15 to 25 deg F
• Element: 8 in
• Enclosure Type: Standard
• Inductive Rating: 14 A
• Mfg Standards/Approvals: CSA Certified|UL Listed
• Mounting Type: Plenum
• Series: 5D51
• Switch Action: Open On Rise
• Temperature Rating: 100 to 300 deg F
• Type: Universal
• Warranty: Limited
• Voltage Rating: 120/240 V ac
• Switch Configuration: Close-On Rise Fan, Open-On Rise Limit
• Element Insertion Length: 8 in
• Item: Fan and Limit Control
• Temp. Range (F): Fan 50 to 265, Limit 100 to 300
• Fan On Temp. (F): Adjustable
• Fan Off Temp. (F): Adjustable
• Inductive Amps @ 120V: Fan 7.0 Limit 6.0
• Inductive Amps @ 240V: Fan 14.0 Limit 10.0
• Contact Amp Rating @ 24V: Fan 5.6 Limit 6.0
