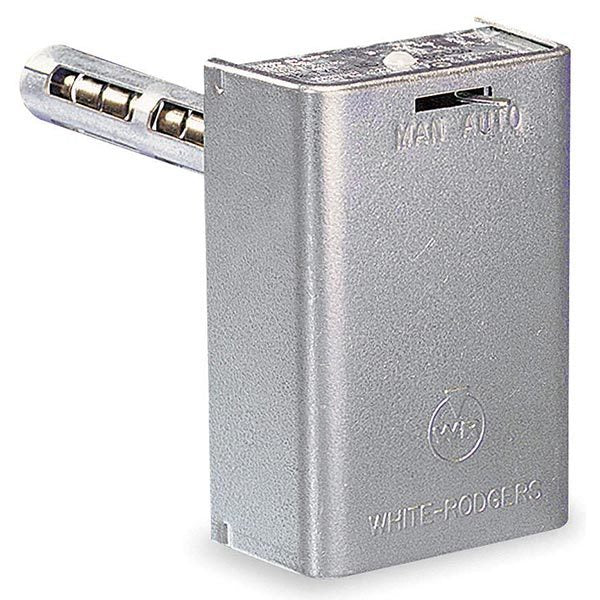

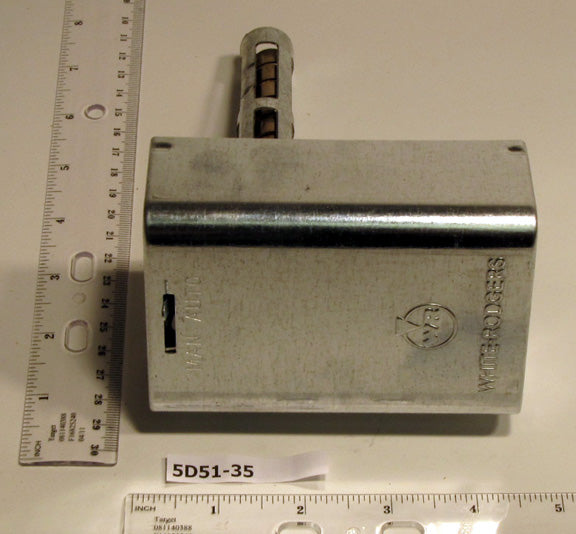

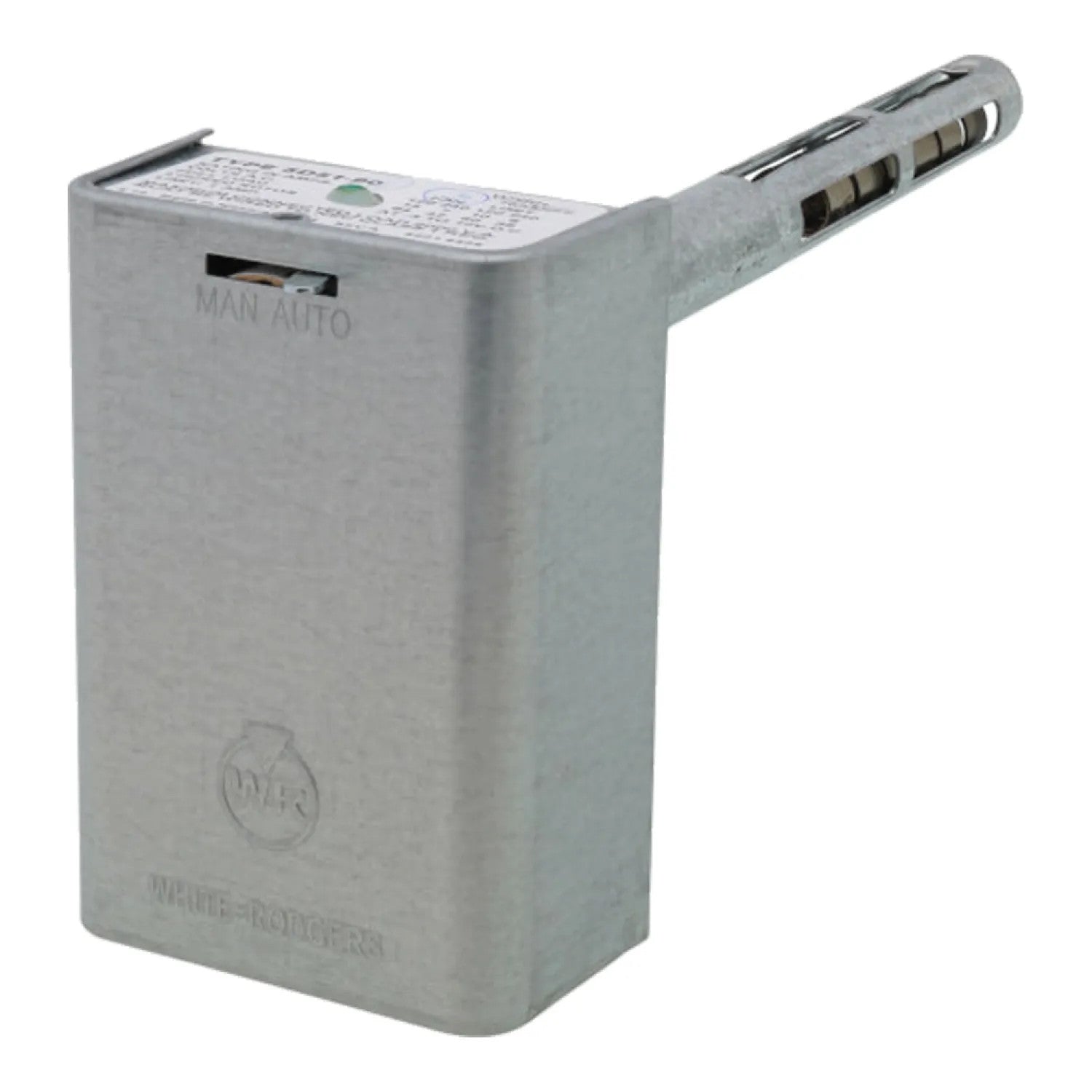

White-Rodgers 5D51-35 Fan and Limit Control 5 in

Product Description

The WHITE-RODGERS 5D51-35 is a fan and limit control that regulates fan or blower operation and acts as a high limit safety control. It features slotted mounting holes for easy installation and individual pointers on the dial for fan cut-in and cut-out settings. Designed for applications with narrow space limitations.

• Regulates fan or blower operation and acts as high limit safety control
• Features long terminal screws and summer fan switch for ventilation
• Easy installation with slotted mounting holes

Product Highlights

This fan and limit control offers reliable temperature monitoring and regulation for optimal performance and safety in various heating and cooling systems.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 5D51-35
• Country of Origin: MX

Technical Specifications

• Brand: White-Rodgers
• Mfr No: 5D51-35
• Fan range: 50° F to 265° F
• Limit range: 100° F to 300° F
• Element length: 5"
• Manufacturer: CAI - WHITE-RODGERS
• Model / MPN: 5D51-35
• Contact Form: SPDT
• Country of Origin: MX
• Differential: 15 to 25 deg F
• Domestic/Import: Import
• Enclosure Type: Standard
• Inductive Rating: 14 A
• Mfg Standards/Approvals: CSA Certified|UL Listed
• Mounting Type: Plenum
• Series: 5D51
• Switch Action: Close On Rise
• Temperature Rating: 50 to 365 deg F
• Type: Universal
• Warranty: Limited
• Voltage Rating: 120/240 V ac
• Specifications Met: CSA Certified, UL Listed
• Switch Configuration: Close-On Rise Fan, Open-On Rise Limit
• Element Insertion Length: 5 in
• Depth: 1-3/5 in
• Width: 2-9/10 in
• Height: 4-3/10 in
• Operating Temperature: 265°F (129°C) Max, 50°F (10°C) Min
• Application: Fan Control
