Product Description

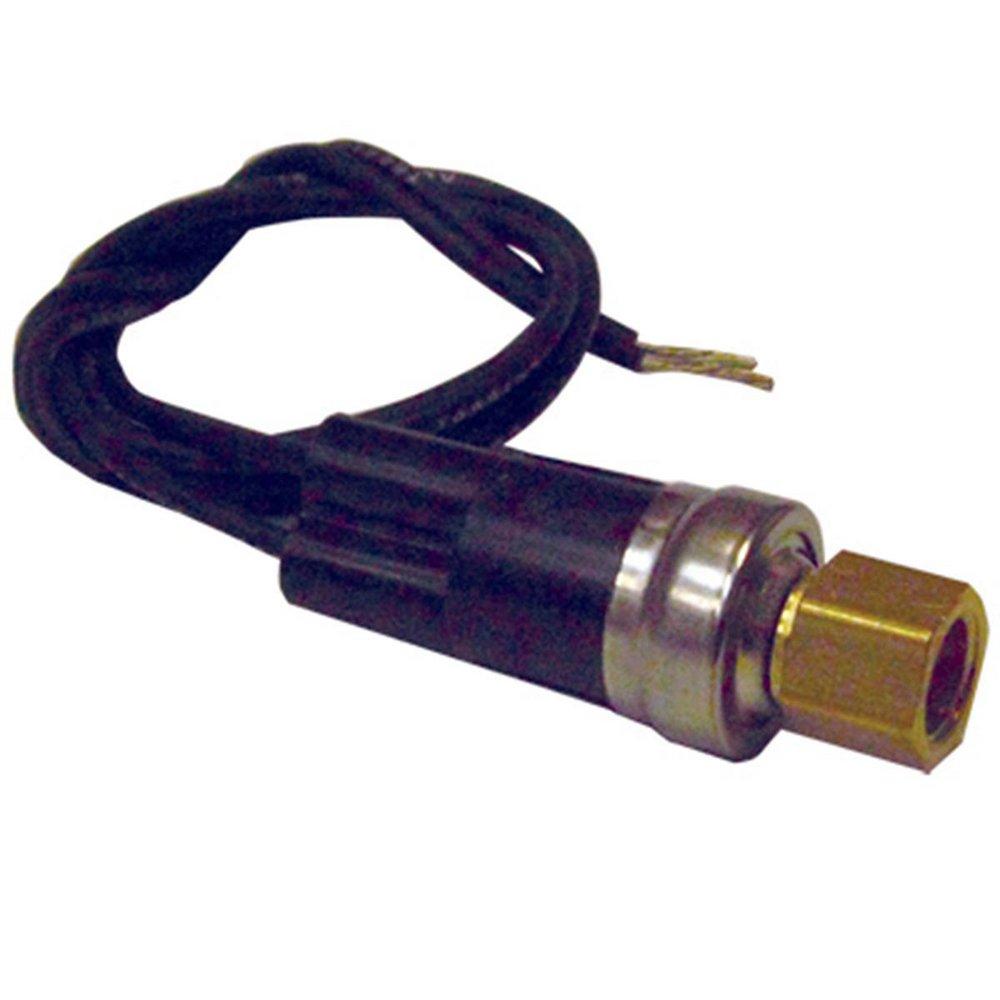

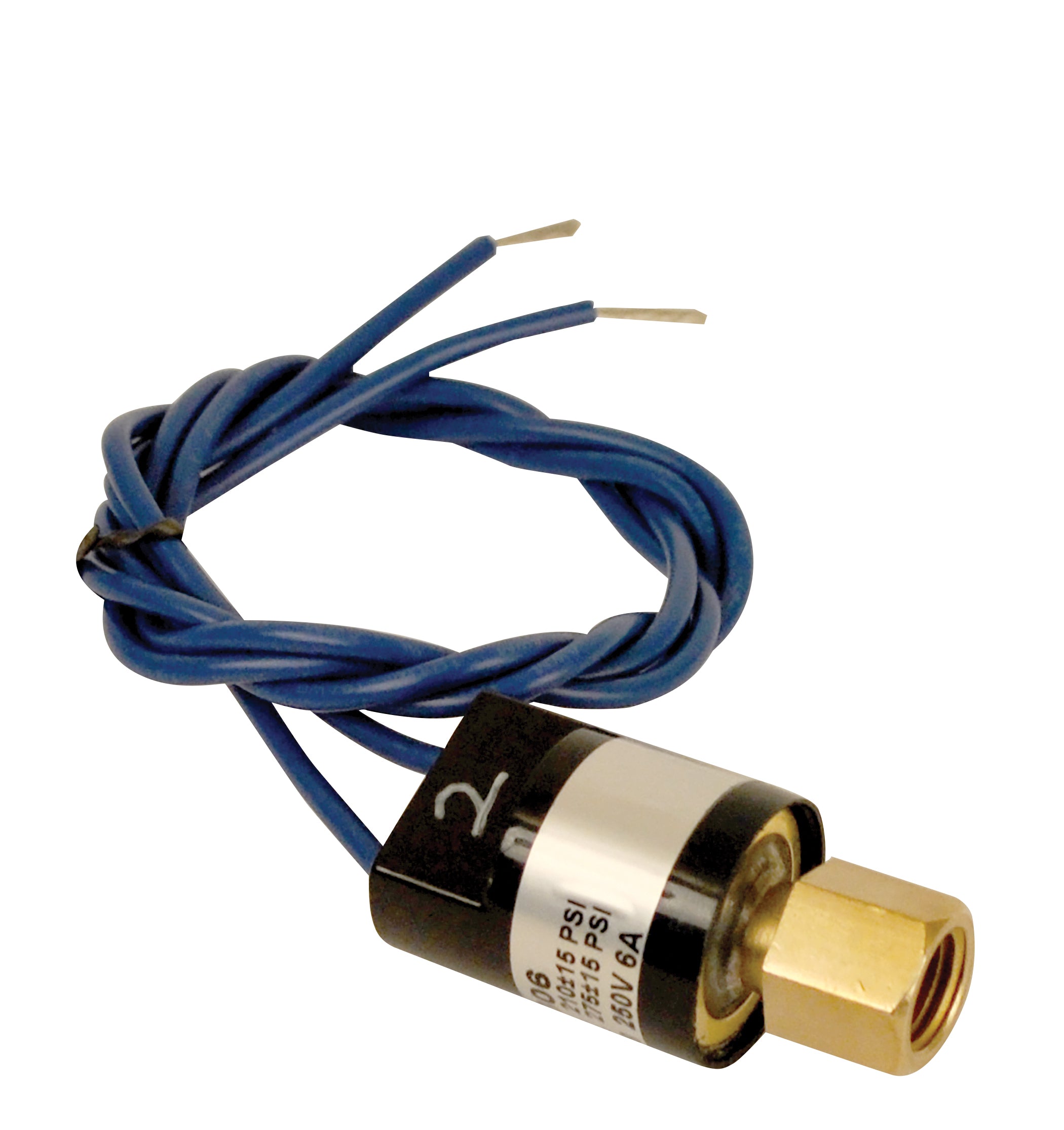

The MARS 43306 is a fan cycling pressure switch, specifically designed to open on a fall and close on a rise. The switch is engineered to assist in various HVAC systems, ensuring optimal functionality across a range of applications. Particularly useful in maintaining low ambient conditions, its robust design adheres to both commercial and industrial standards.
- Robust SPST (Single Pole, Single Throw) configuration
- Operational between 210 psi cut out and 275 psi cut in
- Designed for direct mounting on tubing, this switch ensures secure and reliable installation
Product Highlights
The MARS 43306 switch is constructed to be tamper-proof and directly mounts onto tubing for a dependable setup. Its contacts are rated to handle between 24 to 250 volts, making it versatile for various HVAC systems.
Product Information
Standard Information
Technical Specifications
-
Type: SPST, Close on Rise
-
Pressure Range: 210 - 275 psi
-
Voltage Rating: 24 to 250 volts
-
Connection Type: 1/4 Inch SAE Female Flare
-
Maximum Pressure: 275 psi
-
Operating Cycles: 100,000
-
Electrical Connections: 18 Inch Wire, 1/2 Inch Stripped Ends
