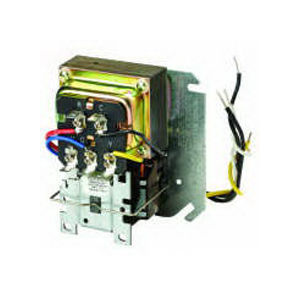

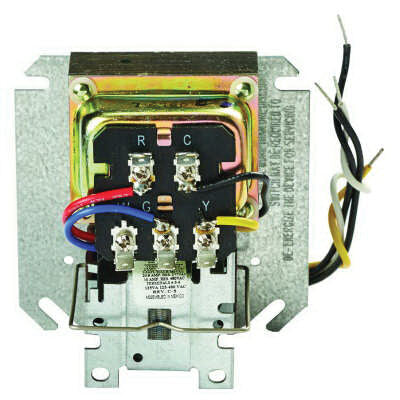

Honeywell R8285B1053 Fan Center with DPDT Switch Action, 40 VA

Product Description

The Honeywell R8285B1053 Fan Center with DPDT Switch Action is a reliable component designed for various HVAC applications. It features a versatile 40 VA transformer and dual-pole, double-throw (DPDT) switching, making it suitable for controlling fan motors and auxiliary circuits in heating, cooling, and air conditioning systems.

• Provides low voltage control
• Overload protection included
• Convenient terminal connections

Product Highlights

The Honeywell Fan Center is ideal for managing both line voltage fan motors and low voltage control systems. This unit includes a transformer to power low voltage devices, providing an efficient and protected solution for your HVAC needs.

Product Information

Standard Information

• Manufacturer: Honeywell
• Part Number: R8285B1053

Technical Specifications

• Voltage Rating: 120/208/240 VAC
• Amperage Rating: 12 A at 120 VAC, 6 A at 208/230 VAC
• Frequency Rating: 60 Hz
• Power Rating: 3/4 hp, 11 W
• Transformer Primary Voltage: 120/240 VAC
• Transformer Secondary Voltage: 26.5 V
• Dimensions: 4-3/16 inches H x 4-1/2 inches W x 2-13/16 inches D
• Mounting Type: Standard 4 x 4 Inch Junction Box
• Switching: DPDT
• Country of Origin: United States
