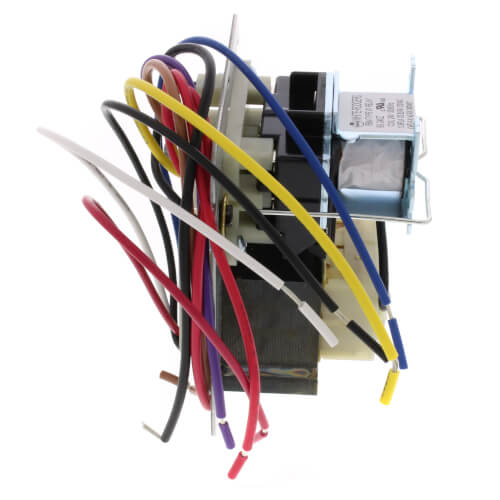

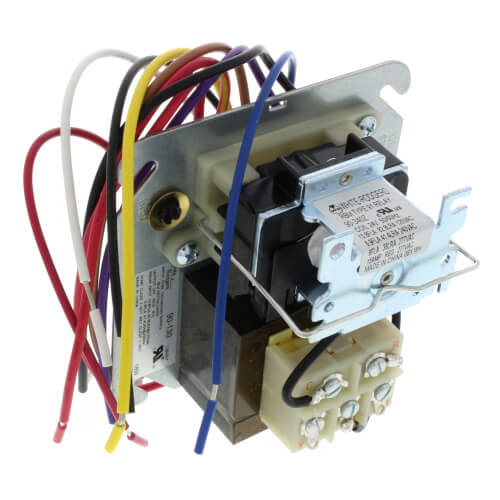

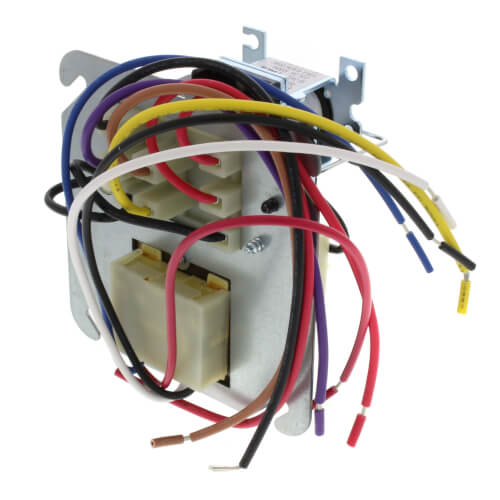

White-Rodgers 90-130 Fan Control Center 120/208/240 Primary 24 Vac Secondary DPDT Relay

Product Description

The White-Rodgers 90-130 Fan Control Center 120/208/240 Primary 24 Vac Secondary DPDT Relay is designed to provide efficient control in HVAC systems. Manufactured by White-Rodgers, this fan control center integrates a transformer and relay for simplified installation. It is compatible with multiple voltages, making it versatile for various electrical setups.

• Easy installation with a 4x4 inch junction box
• Energy limiting class II transformer design
• Pre-wired line voltage connections

Product Highlights

This fan control center from White-Rodgers features color-coded pre-stripped leads for ease of connection and has low voltage connections on a terminal board. It also operates on a primary voltage of 120/208/240 VAC and a secondary voltage of 24 VAC, ensuring reliable performance for fan operations. Lightweight at just 1 pound, it is easy to handle and install.

Product Information

Standard Information

• Brand: White-Rodgers
• MPN: 90-130

Technical Specifications

• Primary Voltage: 120/208/240 VAC
• Secondary Voltage: 24 VAC
• Transformer VA: 40
• Electrical Ratings (AFL): 13.8A at 120 VAC, 6.9A at 240 VAC
• Electrical Ratings (ALR): 82.8A at 120 VAC, 41.4A at 240 VAC
• Installation: Junction box
• Weight: 1 pound
• Dimensions: 15.8 x 11.3 x 10.2 inches
