White-Rodgers 90-113 Single Pole Double Throw (SPDT) Fan Control Center 120V, 40VA, Standard

Product Description

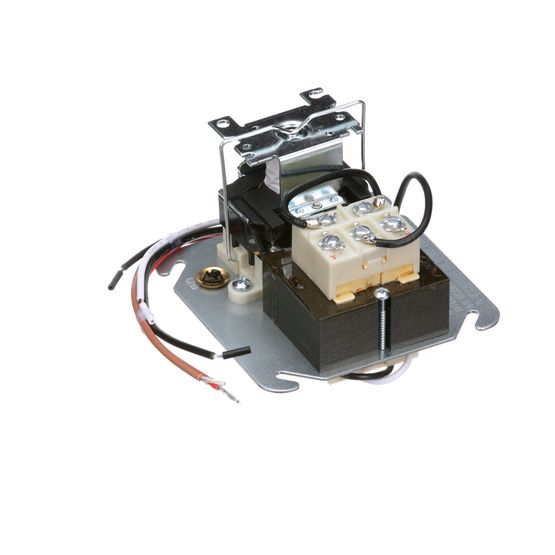

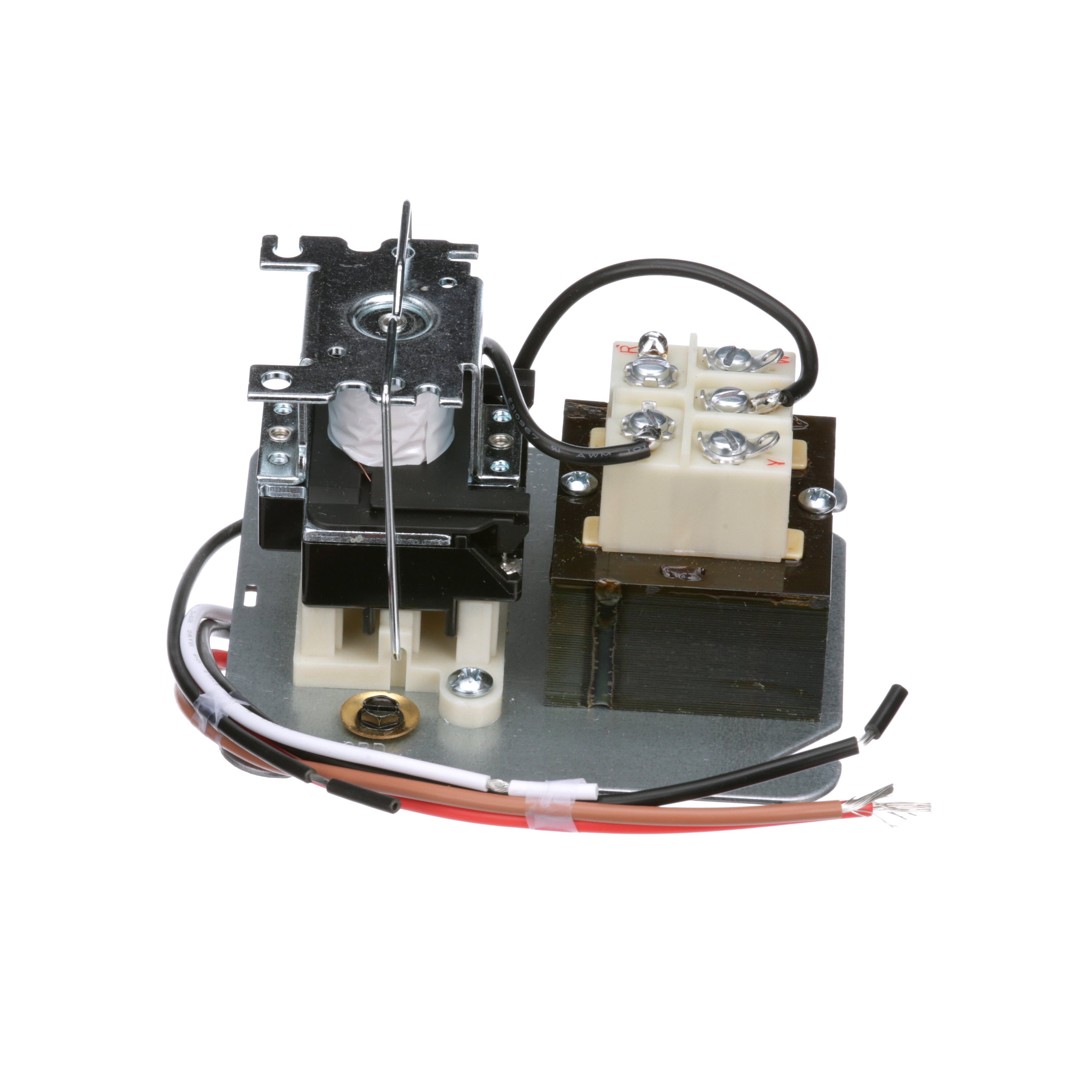

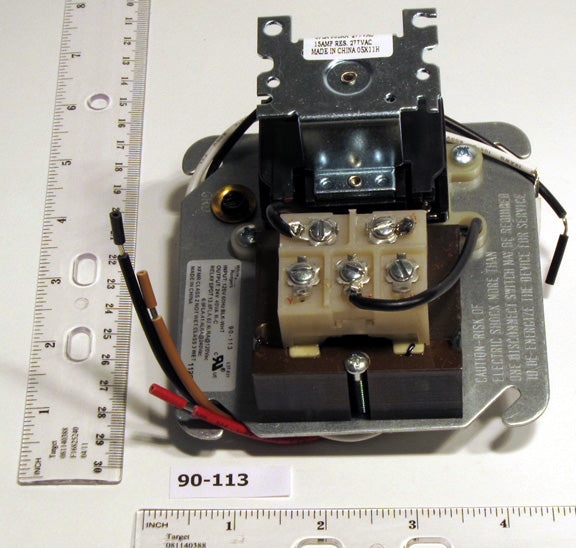

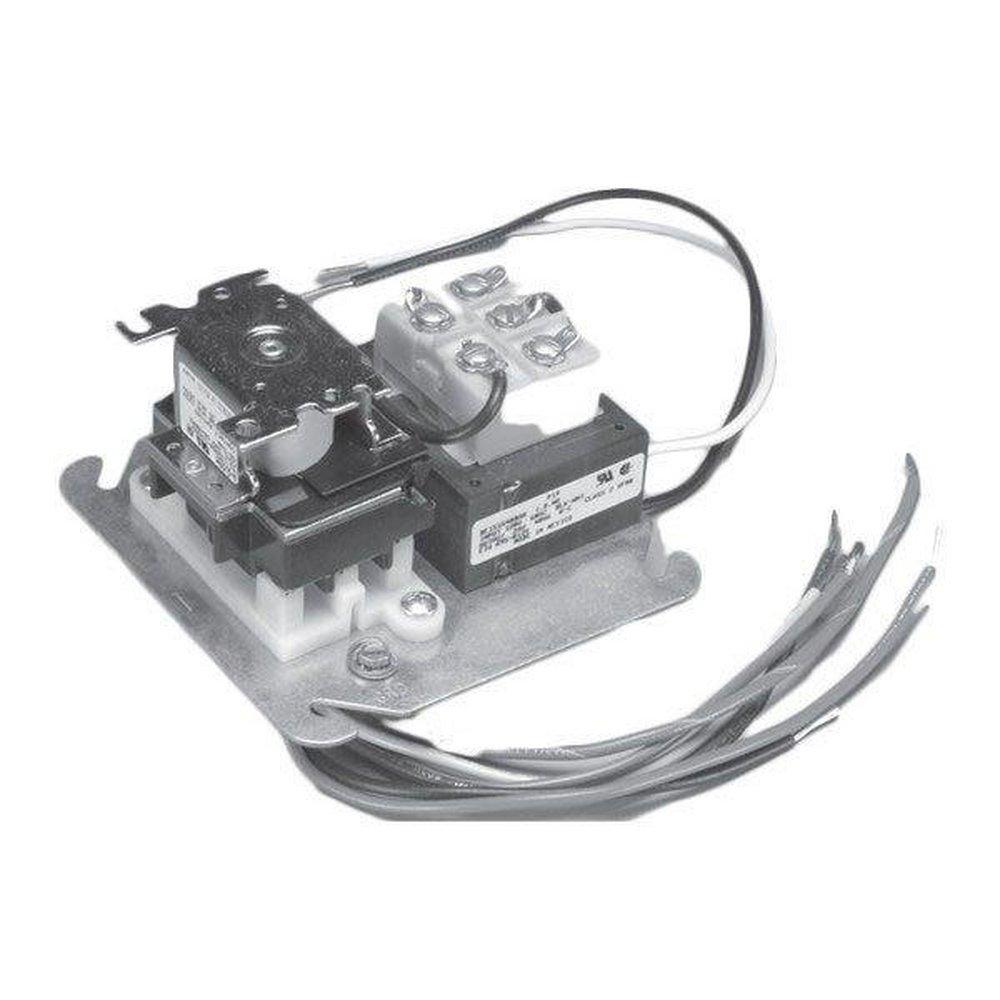

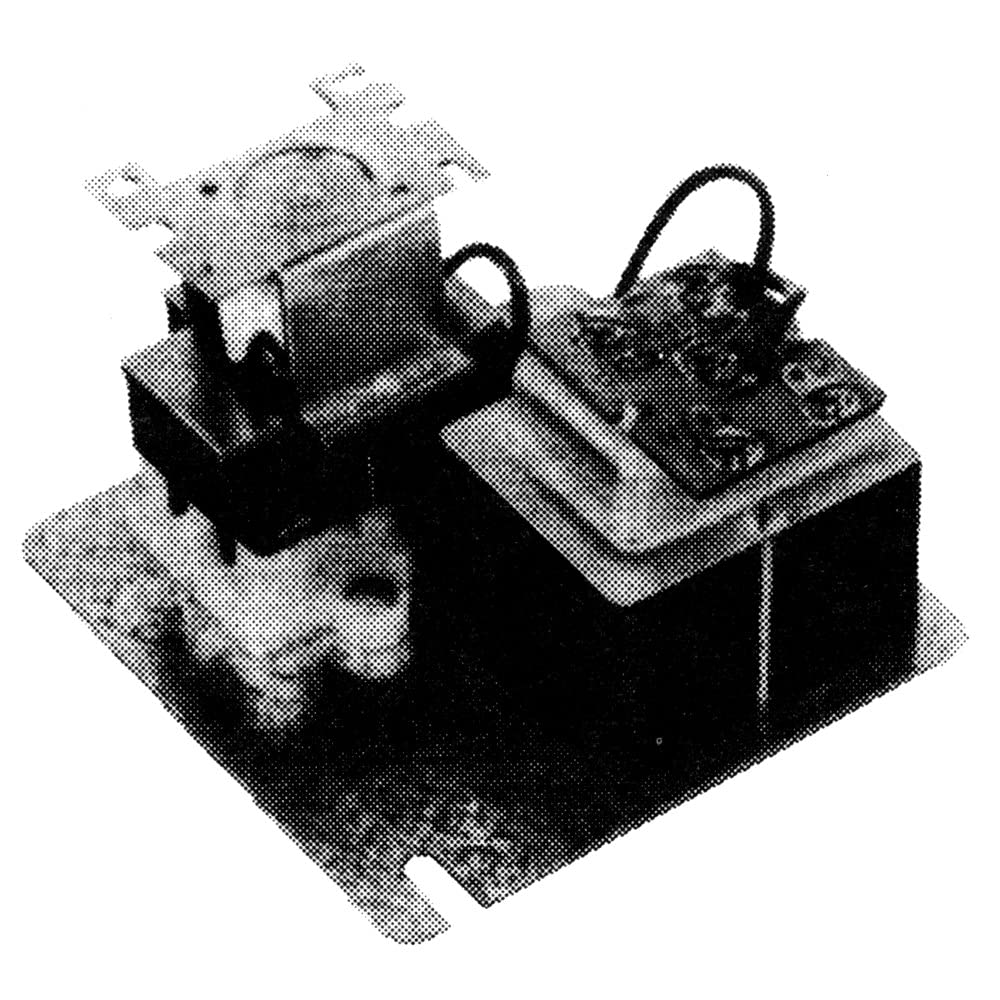

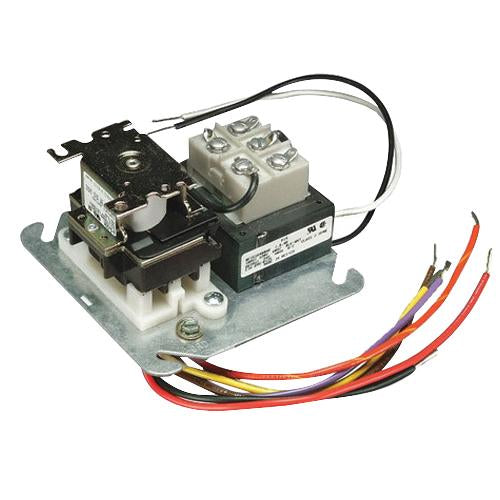

The White-Rodgers 90-113 Single Pole Double Throw (SPDT) Fan Control Center operates at 120V and 40VA. This standard fan control center is a transformer and relay combination for easy installation on a 4" x 4" junction box. It provides low voltage control of fan motors and auxiliary circuits in heating, cooling or heating/cooling systems.

• Single Pole Double Throw (SPDT)
• Operates at 120V
• Features 40VA power rating

Product Highlights

This fan control center offers line voltage connections pre-wired and an energy limiting class II transformer design. It also features color-coded pre-stripped leads and low voltage connections on terminal board.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 90-113
• Country of Origin: CN

Technical Specifications

• Model: 90-113
• Voltage: 120 V
• Type: Fan Control Center
• SPDT: SPDT
• Primary Voltage: 120 Vac, 60 Hz
• Secondary Voltage: 24 volt
• Application: Transformer and relay combination for easy installation on a 4 x 4 junction box
• Frequency: 60 Hz
• Coil: 24 VAC
• Contact Form: SPDT
• Contact: 13.8 FLA/82.8 LRA at 120 VAC, 6.9 FLA/41.4 LRA at 240 VAC
• Pole: 1
• Terminal: Screw
• Switch Action: SPDT
• Coil Current: 0.40A
• Coil Input Voltage: 24V
• Contact Rating (Full Load): 120VAC/13.8A
• Transformer Primary Input Voltage: 120VAC/60Hz
• Transformer Secondary Input Voltage: 24V/40VA
• Coil Voltage: 24 VAC
• Contact Rating: 120/240 VAC
• Country of Origin: CN
• Frequency Rating: 60 Hz
• Mfg Standards/Approvals: UL E73641
• Warranty: Limited
• Item Number: 90-113
• UPC: 786710027475
• Includes: Transformer and Relay
• For Use With: Low Voltage Control of Line Voltage Fans, Pump Motors, Forced Air or Hydronic Heating/Cooling Systems
• Mounting Type: Junction Box
• Catalog Number: 90-113
• Voltage Rating: 120 V ac Primary, 24 V ac Secondary
• Additional Details: Color coded pre-stripped leads
• Specifications Met: UL E73641
• HP: 3/4 hp
• Item: Transformer Relay
• Mounting: 4 x 4 in Junction Box
• Switch Type: SPDT
• Agency Compliance: UL
• Full Load Amps @ 208V: 6.9
• Full Load Amps @ 120VAC: 13.8
• Full Load Amps @ 240VAC: 6.9
• Transformer Primary (V): 120
• Locked Rotor Amps @ 120V: 82.8
• Locked Rotor Amps @ 208V: 41.4
• Transformer Secondary (V): 24
• Electrical Ratings (AFL): 13.8A @ 120 VAC 6.9A @ 240 VAC
• Electrical Ratings (ALR): 82.8A @ 120 VAC 41.4A @ 240 VAC
• Connectors: Terminal board with 5 screw terminals
• Relay: SPDT
• Approvals: U.L. file fan center E73641
• Power Source: Corded Electric
• Compatible Brand: For White-Rodgers
• Compatible Model: 90-113
• Material: Metal
