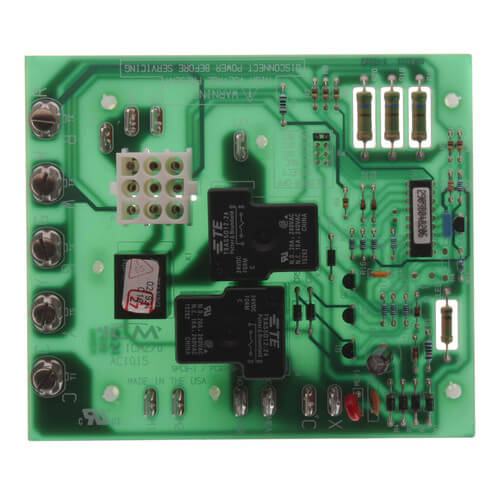

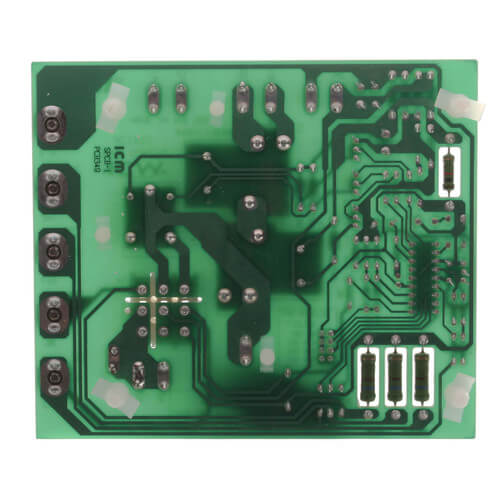

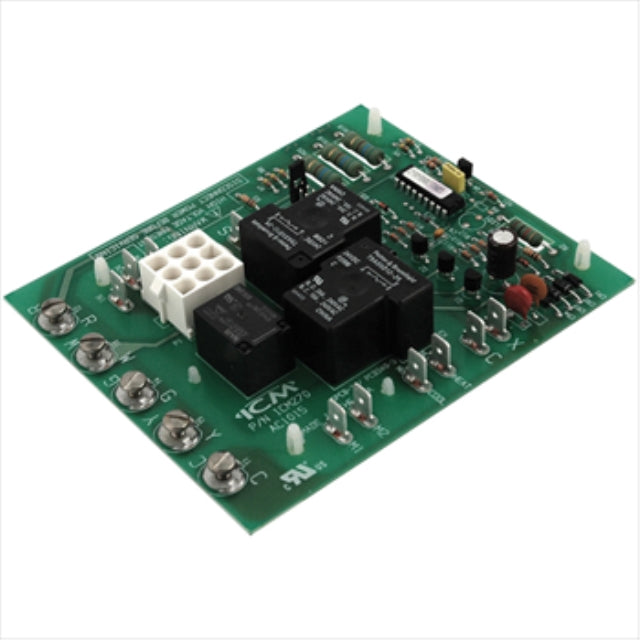

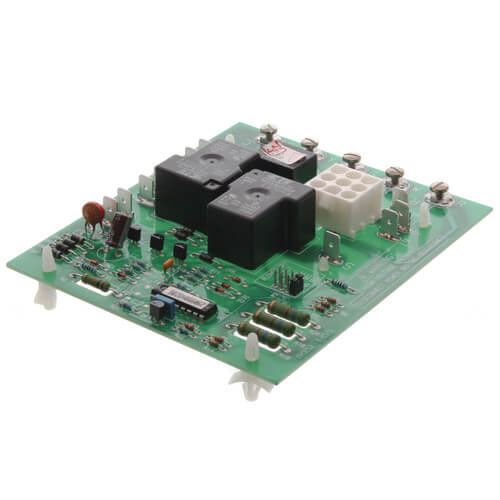

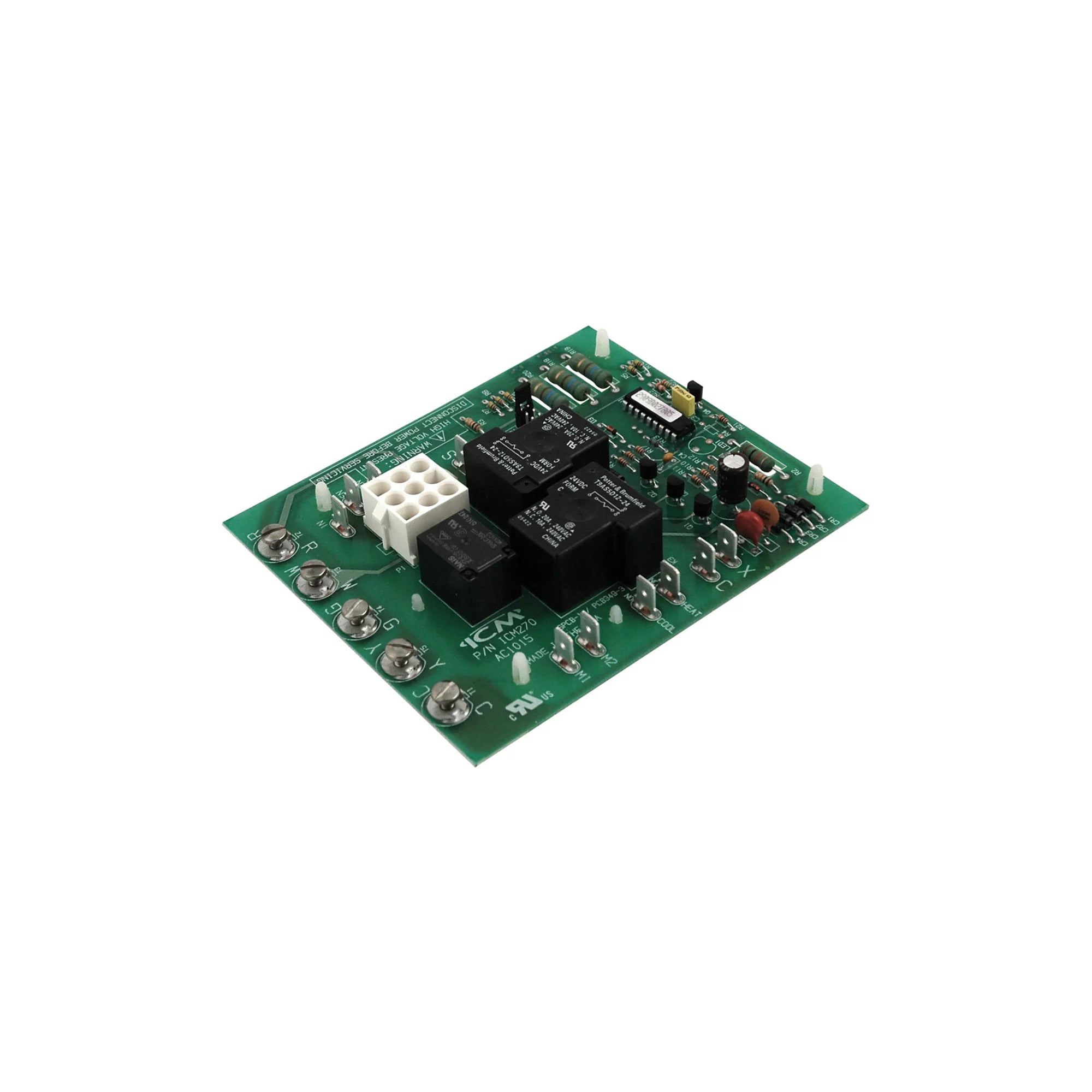

Icm Controls ICM270C Fan Blower Control Replacement for OEM Models

Product Description

The ICM CONTROLS ICM270C is a fan blower control that serves as a replacement for OEM models, including Rheem 47-22827-X series control boards. This dual-function fan delay timer controls the circulating fan in heat pumps, A/C, and forced air systems. It features an off delay to purge ducts of residual air and an on delay to ensure air reaches the proper comfort level before the fan starts.

• Replacement For OEM Models Including Rheem 47-22827-X Series Control Boards
• Dual Function Fan Delay Timer ICM270
• Controls The Circulating Fan In A Heat Pump, A/C and Forced Air Systems

Product Highlights

This fan blower control offers direct wire replacement and monitors safety switches, providing on and off delays while controlling fan speed.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: ICM270C
• Country of Origin: USA

Technical Specifications

• Brand: ICM Controls
• Cycle/Hertz: 50/60 Hz
• Height: 4.5
• Length: 5.25
• Phase: Single
• Type: Blower Control
• UPC: 800442000015
• Width: 1.25
• Input Voltage: 18-30 VAC
• Country of Origin: USA
• Control Voltage: 24 VAC
• Contact Ratings: Heat/Cool Speed - N.O.: 20 amps @ 240 VAC
• Contact Ratings: Heat/Cool Speed - N.C.: 10 amps @ 240 VAC
• Blower ON Time Delay: 30 Seconds
• Blower OFF Time Delay: 90 Seconds, 120 Seconds, 150 Seconds, 180 Seconds
• Time Delay: 30 s On Delay, 90, 120, 150, 180 s Off Delay
• Mpn #: ICM270C
• OEM Replacement for: Robertshaw: 695-003; Evcon: 2702-300; Rheem: 47-22827-01, -81, -82, 47-22828-01, -02
• Switch Action: Relay
• Volts: 18-30 VAC
