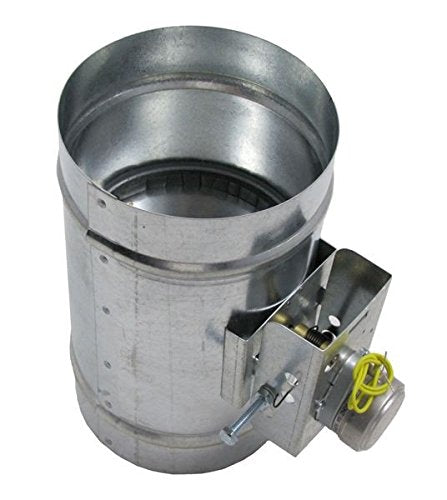

FAMCO ADC6120ES Motorized Damper Power Open 6 Inch 120 Volt W/END Switch

Product Description

The FAMCO ADC6120ES Motorized Damper operates in a normally closed position with a power open and spring return mechanism. It is designed to work with either 24 volt or 120 volt motors. This damper includes an optional end switch that activates an additional appliance once the damper is fully opened or closed.

• 6 inch diameter
• Power open spring return feature
• Available in 24 or 120 volts

Product Highlights

Ideal for HVAC systems, the FAMCO ADC series ensures proper airflow control and energy efficiency. The floating motor mount promotes alignment of the motor and damper, reducing the risk of binding. A clutch and coupler mechanism minimizes moving parts to extend service life.

Product Information

Standard Information

• Brand: FAMCO
• Model: ADC6120ES

Technical Specifications

• Size: 6 inches
• Voltage: 120 volts
• Material: 28 gauge galvanized steel
• Temperature Range: -20 to 160 degrees F
• Item Weight: 8 lbs
• End Switch: Optional
• Flow Control Adjustment: Yes
