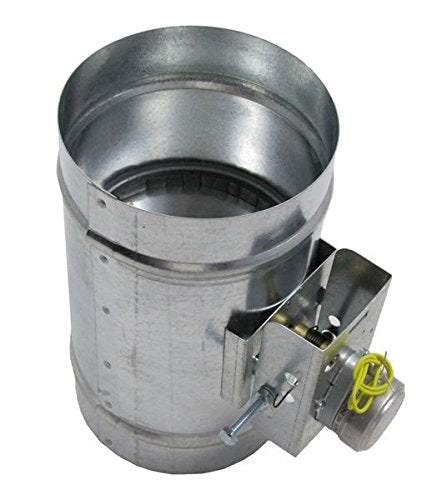

FAMCO ADC4120ES Motorized Damper Power Open 4 Inch 120 Volt W/End Switch

Product Description

The FAMCO ADC Motorized Damper is a normally closed unit with a power open and spring return motor assembly. It operates with either twenty-four volt or 120 volt motors. The damper features an optional end switch that allows another device to activate when the damper is fully open or closed.

• Four Inch Size
• Power Open Spring Return Mechanism
• Available in Twenty-Four or 120 Volt

Product Highlights

This motorized damper is designed for efficient airflow control in HVAC systems. It is constructed from 28 gauge galvanized steel, ensuring durability.

Product Information

Standard Information

• Manufacturer: FAMCO
• Product Type: Building Material

Technical Specifications

• Model: ADC4120ES
• Temperature Rating: -20 to 160 degrees Fahrenheit
• Weight: Eight Pounds
• Size: Four Inches
• Motor Options: 24 Volt or 120 Volt
• Construction Material: 28 Gauge Galvanized Steel
• End Switch: Optional
• Flow Control Adjustment: Yes
