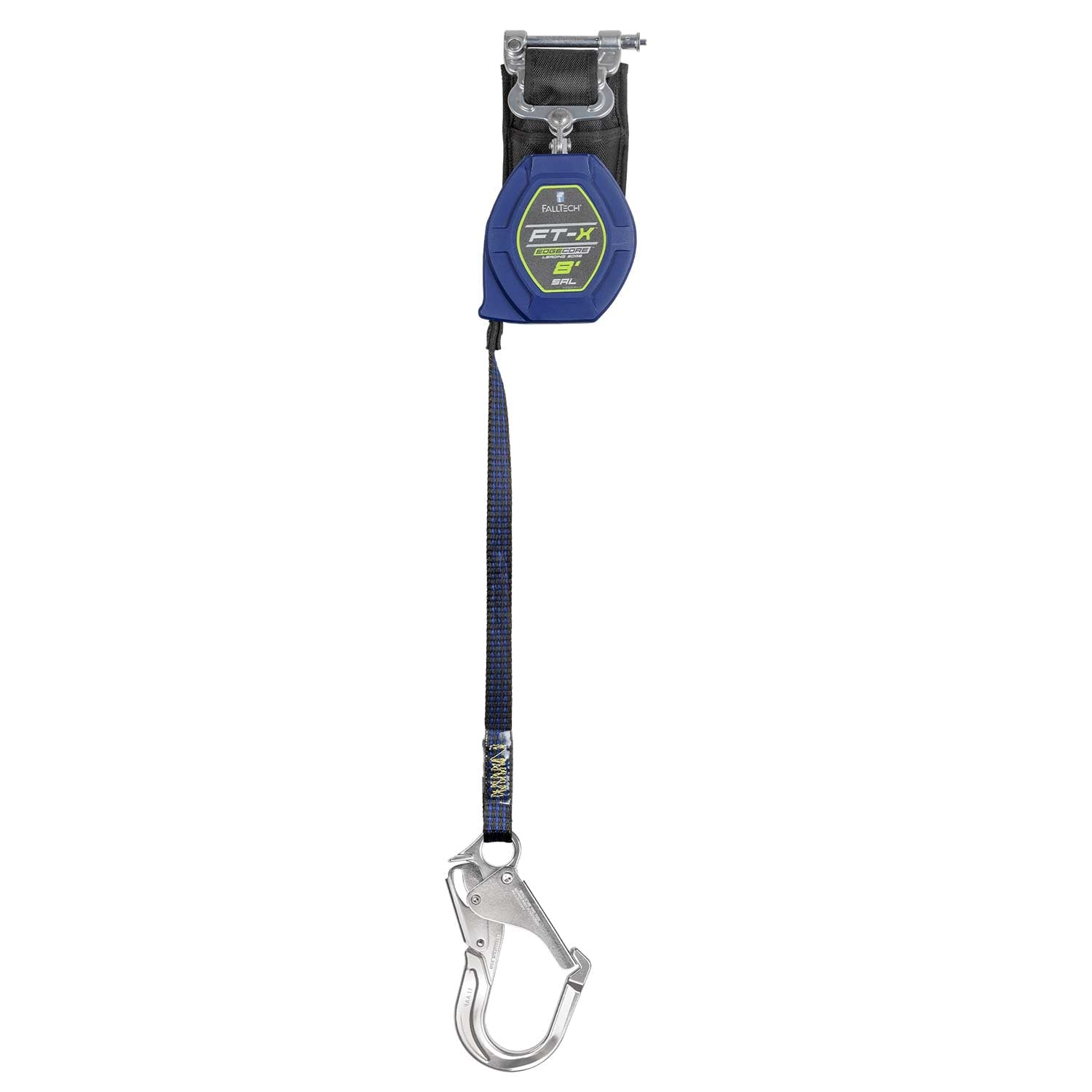

Falltech 84108SP5 FT-X® EdgeCore™ Class 2 Leading Edge Personal SRL-P 8 feet Single-leg with Aluminum Rebar Hook

Product Description

The FALLTECH 84108SP5 FT-X® EdgeCore™ Class 2 Leading Edge Personal SRL-P is a single-leg, 8-foot self-retracting lifeline with an aluminum rebar hook. The EdgeCore™ lifeline is made from Kevlar® cables and a UV-resistant composite jacket, weighing 40% less than comparable SRLs. It features comprehensive fall clearance charts and tables inside the energy absorber cover.

• EdgeCore™ lifeline made from Kevlar® cables and a UV-resistant composite jacket
• Compact design elevates the SRDs to align optimally with worker motion
• Suitable for below D-ring tie-off up to five feet and leading edge exposures and hazards, including steel and precast concrete

Product Highlights

This SRL is rated for workers weighing up to 420 pounds and complies with ANSI Z359.14-2021 Class 2 SRL-P, OSHA 1926.502 and 1910.66, and CSA Z259.2.2-2017.

Product Information

Standard Information

• Brand: FALLTECH
• Manufacturer Part Number: 84108SP5

Technical Specifications

• Lifeline: EdgeCore™; 5,000 lb min. static strength
• Energy Absorber: Polyester tear-away
• Anchorage Connector: Aluminum alloy; 5,000 lb min. static strength with 3,600 lb gate strength
• Dorsal Connector: Aluminum alloy; 3,600 lb min.
• Static Strength: 3,600 lb min.
• ANSI SRL Class/Type: Class 2 SRL-P
• Avg. Arrest Force: 1,350 lb max.
• Max. Arrest Force: 1,800 lb
• Max. Arrest Distance: 42"
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 420 lb max.
• Length: 8'
• Brand: FT-X™ EdgeCore™ Leading Edge
• Brand part number: 84108SP5
• End fitting: Aluminum Rebar Hook
• Manufacturer name: FallTech
• Material: Lifeline Material: EdgeCore™; 5,000 lb min. static strength Anchorage Connector Material: Aluminum alloy; 5,000 lb min. static strength with 3,600 lb gate strength Dorsal Connector Material: Aluminum alloy; 3,600 lb min. Energy Absorber Material: Polyester tear-away
• Style: Single-leg
• Type: ANSI Class 2 SRL-P Compliant
• Capacity: 130 to 310 lbs
• Anchorage Connection: Rebar Hook
• Number Of Legs: 1
• Lifeline Material: Kevlar web
• Boot Cover: No
• Carabiner: Yes
• Lanyard Hooks: Aluminum Rebar Hook
• Maximum Work Load: 310 lbs.
• Retractable Class: Class 2
• SRL Type: Leading Edge
• SRL Class: Class 2
• Fall Connector Material: Aluminum
• Fall Gear Connector: Rebar Hook
• Fall Gear Style: Single Leg
