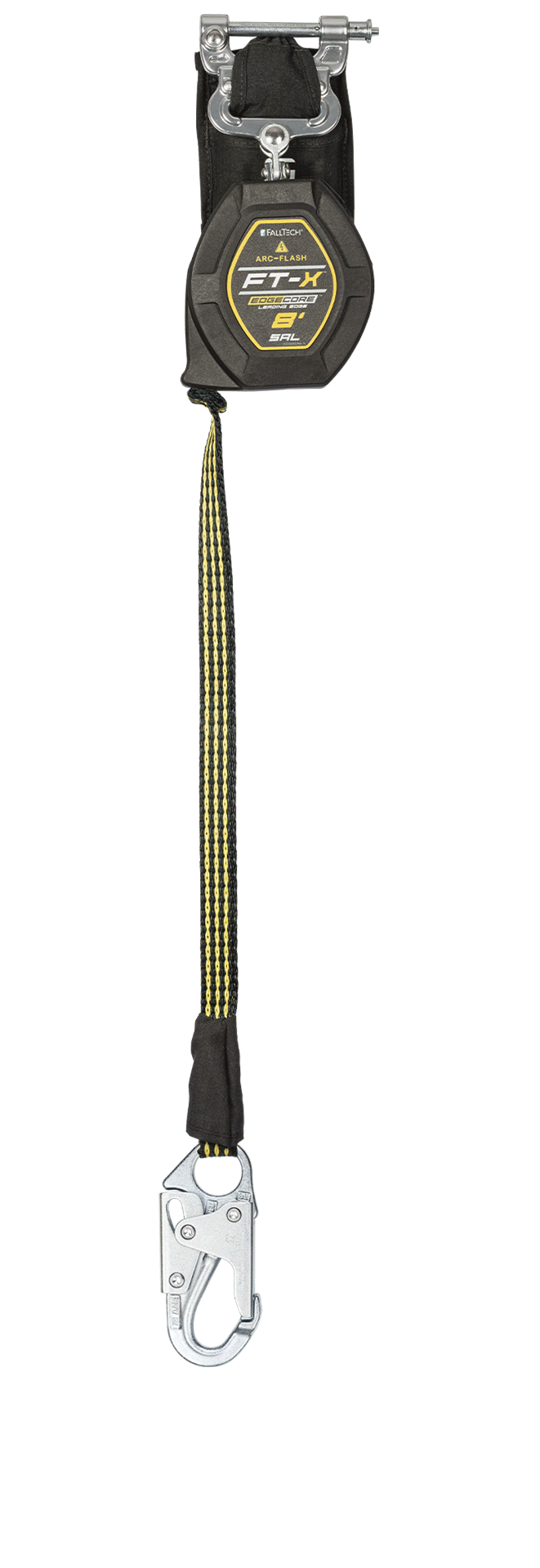

Falltech 84008SP0S 8 feet FT-X® EdgeCore™ Arc Flash Class 2 Leading Edge Personal SRL-P, Single-leg with Steel Mini Swivel Rebar Hook

Product Description

The FALLTECH 84008SP0S is an 8' FT-X® EdgeCore™ Arc Flash Class 2 Leading Edge Personal SRL-P, single-leg with steel mini swivel rebar hook. It features a 100% Kevlar® version of FallTech's innovative EdgeCore™ synthetic lifeline. Its compact design elevates the SRDs to align optimally with worker motion, increasing both comfort and productivity. Rated for workers weighing up to 420 pounds.

• Arc Flash rating AND Class 2 Leading Edge rating for the first time in an SRL.
• Features 100% Kevlar® version of FallTech's innovative EdgeCore™ synthetic lifeline
• Compact design elevates the SRDs to align optimally with worker motion, increasing both comfort and productivity

Product Highlights

The FT-X EdgeCore Arc Flash SRL-P is engineered for utility applications where anchorage occurs at or below the D-ring and work is performed near energized equipment.

Product Information

Standard Information

• Brand: FALLTECH
• Manufacturer Part Number: 84008SP0S
• Country of Origin: 840

Technical Specifications

• Lifeline: EdgeCore™ Arc Flash (Kevlar®); 5,000 lb min. static strength
• Energy Absorber: Polyester tear-away
• Anchorage Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
• Dorsal Connector: Aluminum alloy; 3,600 lb min.
• Static Strength: 3,600 lb min.
• ANSI SRL Class: Class 2 SRL-P
• Avg. Arrest Force: 1,350 lb max.
• Max. Arrest Force: 1,800 lb
• Max. Arrest Distance: 42"
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 420 lb max.
• Compliant With: OSHA 1926.502 and 1910.66 / ANSI Z359.14-2021 / ASTM F887-20
• ANSI Z359.14-2021 SRL Class: Class 1 or 2
• Application: Tie-Back
• ASTM: F887-20
• Configuration: Single-leg
• Length: 8'
• Lifeline Material: EdgeCore Arc Flash
• OSHA: 1926.502 and 1910.66
• Personal SRL Anchorage Connector: Rebar Hook(s)
• Personal SRL Anchorage Connector Material: Plated Alloy Steel
• Personal SRL Dorsal Connector: Dorsal SRL Slide Connector
• Personal SRL Dorsal Connector Material: Aluminum Alloy
• SRL Type: SRL-P
• Relevant Standards: ANSI Z359.14-2021
• SRL Class: Class 2
• MFG Part #: 84008SP0S
• UPC#: 848013038784
• arc Flash/Hot Work: Yes
• hook Material: Steel
• leg Type: Single Leg
• lifeline Connector: Rebar Hook
• Brand Manufacturer: FallTech
• MPN: 84008SP0S
• Manufacturer: FallTech
• Prop 65: No
