Falltech 7530B 14 inches Trailing Beam Anchor with Dual-clamp Adjustment

Product Description

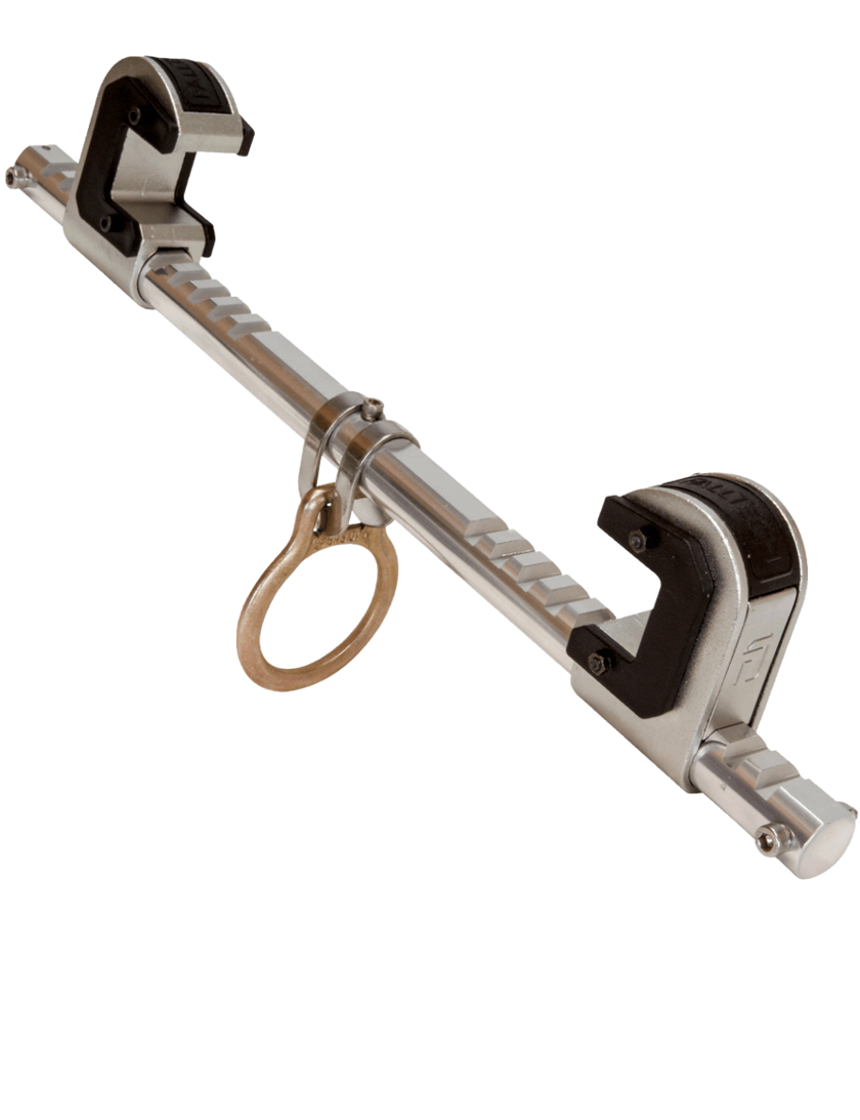

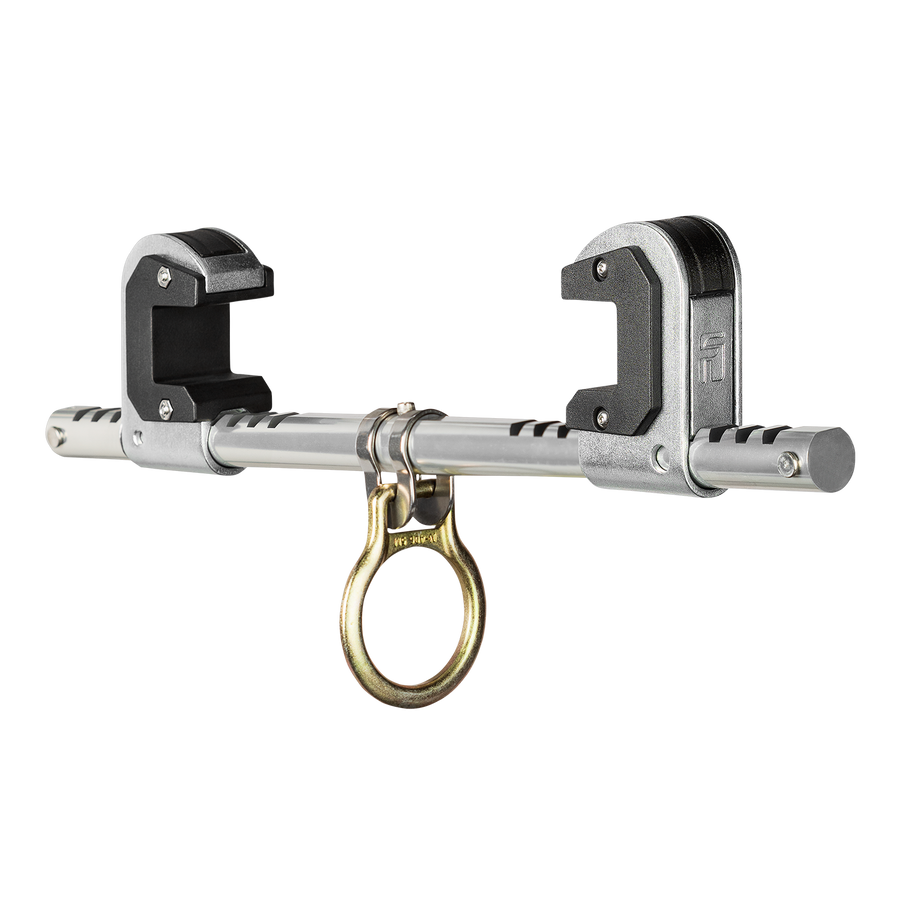

The FALLTECH 7530B 14" Trailing Beam Anchor features an aluminum crossbar and steel clamping jaws with nylon slider pads. It fits beam flanges from 3" to 14" wide and up to 1-1/4" thick and is designed for temporary mobile use on horizontal I-beams. Dual adjusting jaws include concealed locking latches and an alloy steel D-ring remains centered on the crossbar. Complies with ANSI Z359.18-2017.

• Features aluminum crossbar and steel clamping jaws with nylon slider pads
• Fits beam flanges from 3" to 14" wide and up to 1-1/4" thick.
• Dual adjusting jaws include concealed locking latches

Product Highlights

The FallTech Trailing Beam Anchor delivers secure clamping, smooth movement, and quick adjustment for structural steel erection and maintenance.

Product Information

Standard Information

• Brand: FALLTECH
• Manufacturer Part Number: 7530B
• Country of Origin: United States

Technical Specifications

• D-ring: Plated alloy steel; 5,000 lb min. static strength
• Crossbar: Aluminum alloy
• Clamp Jaws: Plated alloy steel
• Static Strength: 5,000 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.
• Brand Name: Falltech
• California Proposition 65 Warning Required: Yes
• Country of Origin: United States
• MFG Part # (OEM): 7530
• Meets ANSI or OSHA Standards: Yes
• Mounting Type: Horizontal Only
• Overall Length (in): 16.00
• Overall Width (in): 5.00
• Package Contents: Dual Ratcheting Beam Anchor for 4-14In Flange Width
• Product Condition: New
• UPC: 848013040022
• Wear Pad Material: Wear Pad Not Included
• Weight Capacity (lbs): 3600
• Fits beam flanges: from 3" to 14" wide and up to 1-1/4" thick
• Type: Trailing Beam Anchor
• Weight Capacity: 310 Lb ANSI/420 Lb OSHA
• Fits Beam Size: 3 to 14 in W, 1-1/4 in THK
• Length: 14 in
• Tensile Strength: 5,000 Lb
• Material: Aluminum/Steel
• Installation Type: Temporary
• Overall Height: 5.00 in
