Product Description

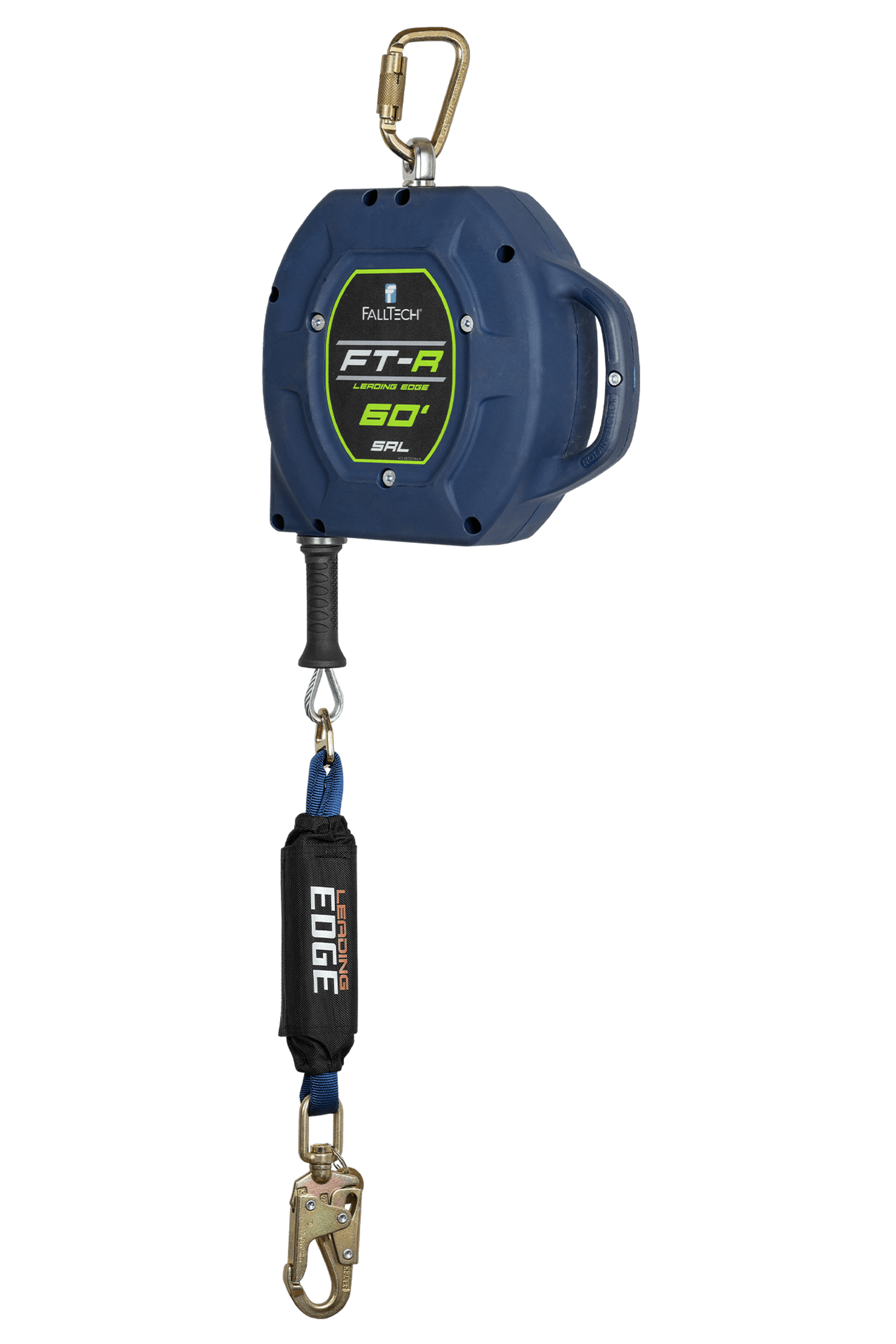

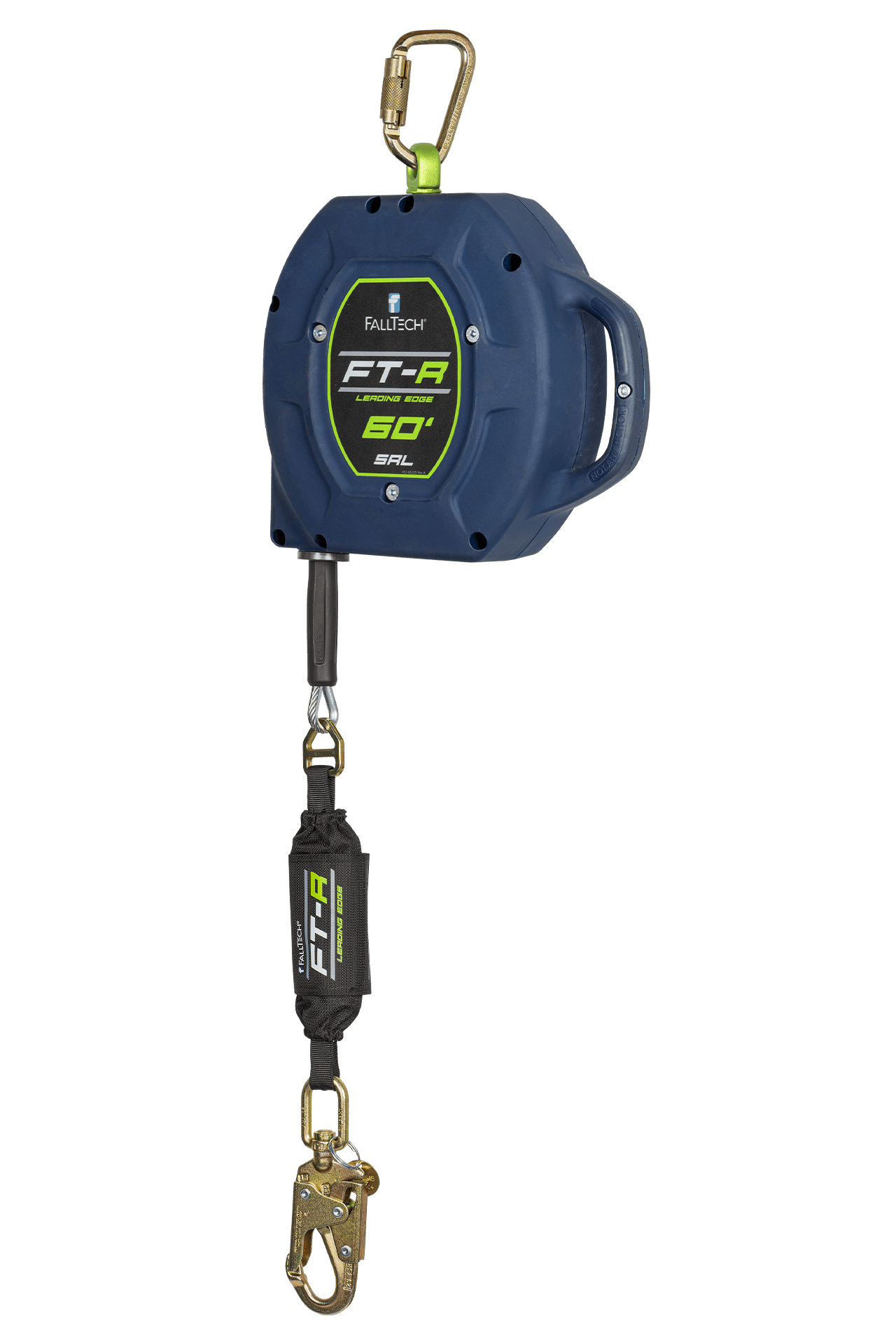

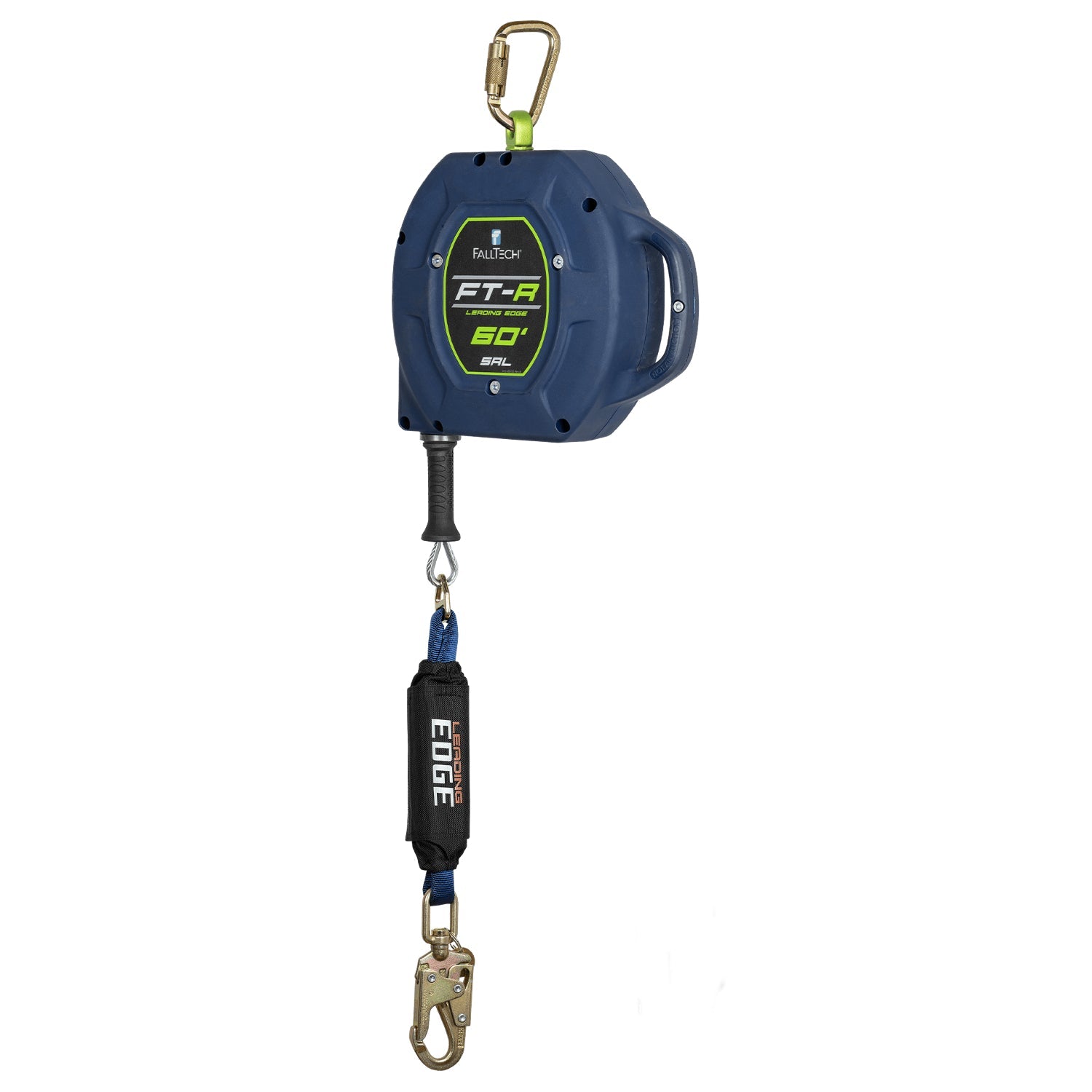

The FALLTECH 721560LEC FT-R® Class 2 Leading Edge SRL features a 60' galvanized steel cable and supports a maximum weight of 420 lb. It is 20% lighter than typical 60' cable Class 2 leading edge SRLs. The unit's innovative energy absorber design ensures consistent performance across diverse environmental conditions.
- Features a 7/32" galvanized steel cable lifeline with swivel snap hook.
- Includes steel anchorage carabiner with 3/4" gate opening.
- Complies with ANSI Z359.14-2021, OSHA 1926.502 and 1910.66, CSA Z259.2.2-2017(R2022).
Product Highlights

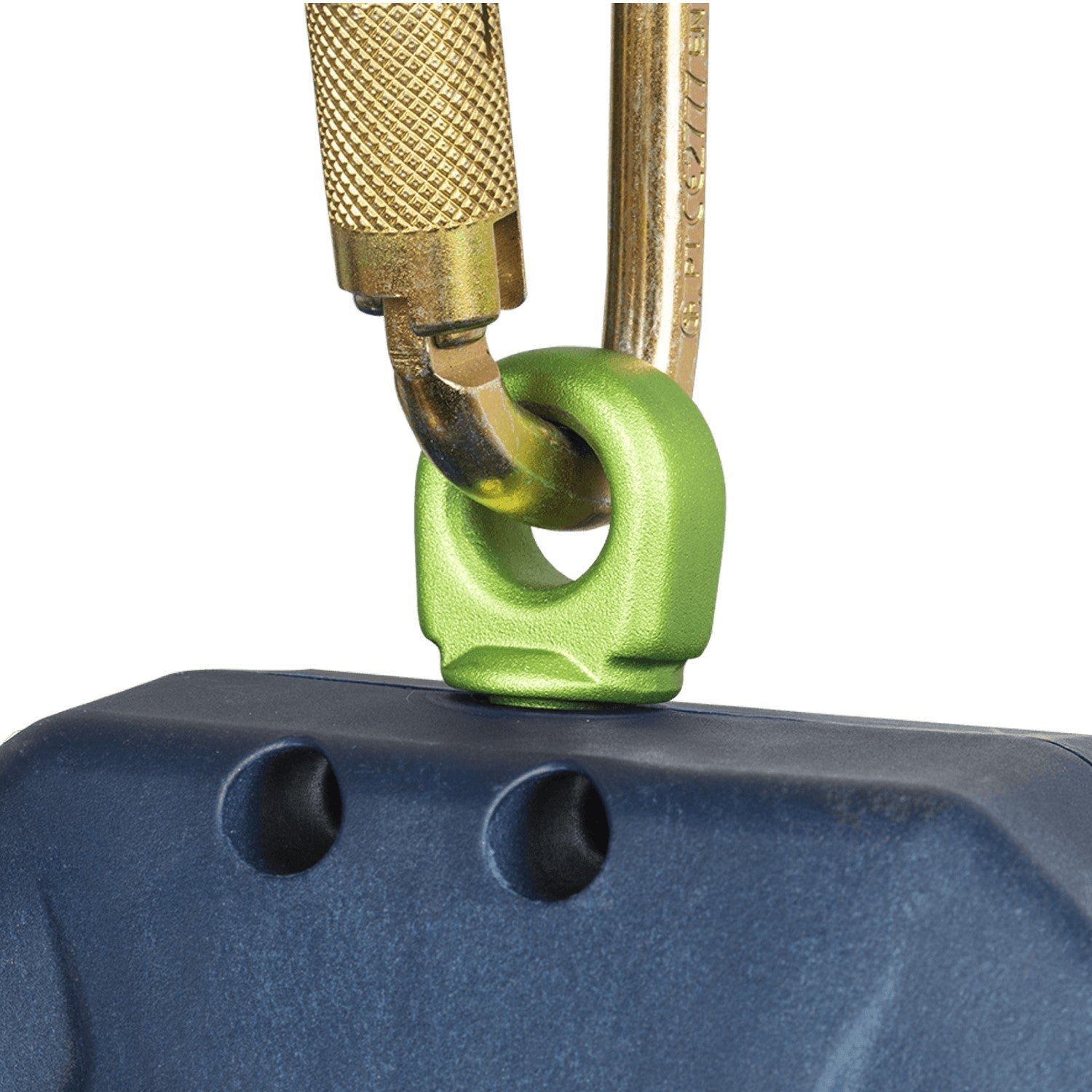

This SRL has swiveling anchor and leg-end connectors plus an integrated carrying handle simplify installation and transportation. Improved internal mechanism design minimizes unintentional lockups.
Product Information
Standard Information
-
Brand: FALLTECH
-
Manufacturer Part Number: 721560LEC
-
Country of Origin: 840
Technical Specifications
-
Cable: 7/32" galvanized steel; 3,600 lb min. static strength
-

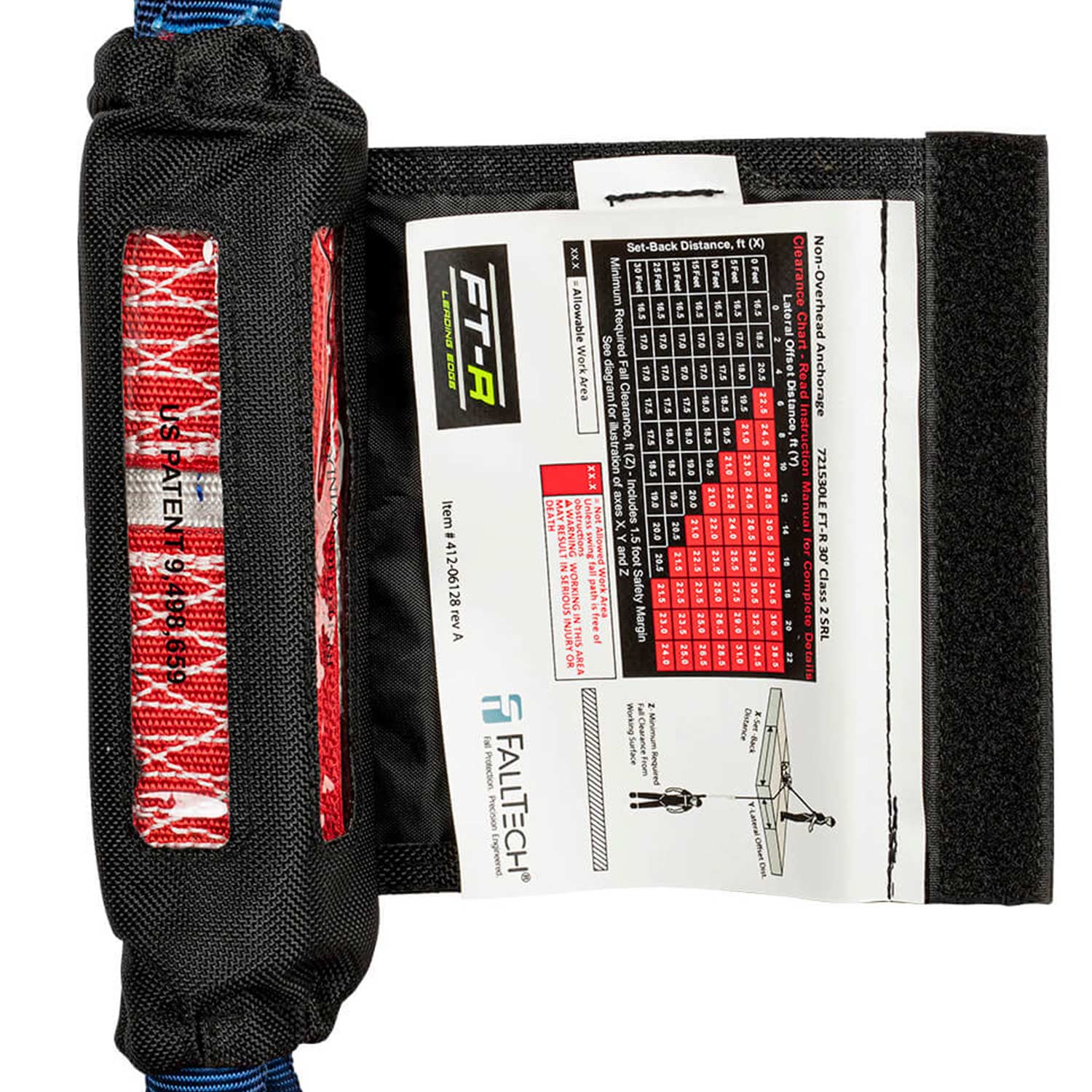

Energy Absorber: Polyester tear-away
-
Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
-
Anchorage Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
-
Static Strength: 3,600 lb min.
-
ANSI SRL Class/Type: Class 2 SRL
-
Avg. Arrest Force: 1,350 lb max.
-
Max. Arrest Force: 1,800 lb
-
Max. Arrest Distance: 42"
-
ANSI User Capacity: 130 to 310 lb max.
-
OSHA User Capacity: 130 to 420 lb max.
-
Compliant With: ANSI Z359.14-2021, OSHA 1926.502 and 1910.66, CSA Z259.2.2-2017(R2022)
-
MPN: 721560LEC
-
Product Type: SRL & SRD Retractable Lines
-
Length: 60'
-
Brand: FT-R™ Leading Edge
-
Brand part number: 721560LEC
-
End fitting: Steel Swivel Snap Hook
-
Manufacturer name: FallTech
-
Material: Cable Material: 7/32" galvanized steel; 3,600 lb min. static strength
Anchorage Connector Material: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Lifeline Connector Material: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Energy Absorber Material: Polyester tear-away
-
Standards: ANSI Z359.14-2021, OSHA 1926.502 and 1910.66, CSA Z259.2.2-2017
-
Style: Single-leg
-
Type: ANSI Class 2 SRL Compliant
-
Additional Info: ANSI User Capacity: 130 to 310 lb. max.
OSHA User Capacity: 130 to 420 lb. max.
Static Strength: 3,600 lb. min.
Avg. Arrest Force: 1,350 lb. max.
Max. Arrest Force: 1,800 lbs.
Max. Arrest Distance: 42"
-
ANSI Z359.14-2021 SRL Class 1 or 2: Class 2
-
Family Group: FT-R Class 2 Leading Edge SRL
-
ANSI: ANSI Class 2 SRL Compliant
-
CSA: CSA Compliant
-
Lifeline Material: Galvanized Steel Cable
-
OSHA: OSHA Compliant
-
Overhead SRL Anchorage Connector: Carabiner
-
Overhead SRL Anchorage Connector Material: Alloy Steel
-
Overhead SRL Lifeline Connector: Swivel Snap Hook
-
Overhead SRL Lifeline Connector Material: Alloy Steel
-
SRL Type: SRL
-
SRL Class: Class 2
-
MFG Part #: 721560LEC
