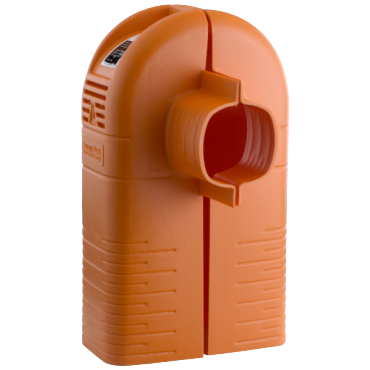

Falk CCG2000AGRDCPLG Orange Peel Motor Coupling Guard

Product Description

The Falk CCG2000AGRDCPLG is an Orange Peel Motor Coupling Guard designed to enhance safety in mechanical systems. This guard features a patent-pending trim-and-fit design that simplifies installation and increases convenience. It helps protect the coupling area and promotes job site safety without the costs associated with custom-engineered guards.

• Size 20 Coupling Guard
• 5 1/2 to 12 1/2 spacing between the driver and the driven
• 2 1/8 max shaft size

Product Highlights

This guard is compliant with ANSI Z535.4 standards and features a caution warning for safety. It is important for users to look for a safety orange color, ensuring visibility and adherence to safety protocols in the workplace.

Product Information

Standard Information

• Brand: Falk Corp.
• Part Number: 101458327

Technical Specifications

• Shaft Center Height without Riser [Max]: 11 in
• Shaft Center Height without Riser [Min]: 11 in
• Overall Length: 9.5 in
• Overall Width: 12 in
• Overall Height: 16.75 in
• Shaft Size [Max]: 2 1/8 in
• Coupling O.D.: 7 1/2 in
• Weight: 4.5 LB
• EAN or UPC: 782934192807
