FALK 0744085 FAL 1030T Coupling 1/2 to 1-5/8 in Bore Dia Replacement MPN

Product Description

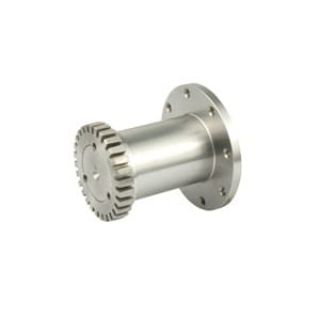

The FALK Steelflex Grid Coupling Hub, with MPN 0744085, is built for use with FALK Steelflex type T31/T35 spacer grid couplings. This hub has a bore diameter ranging from half an inch to one and five-eighths inches, suitable for various applications. The design includes a shaft hub length of one point six two inches and a T-hub length of one point eight eight inches.

• Material: Steel
• Maximum speed: 3600 rpm
• Coupling size: 1030T

Product Highlights

This coupling hub provides reliable performance and is essential for efficient power transmission in mechanical systems.

Product Information

Standard Information

• Application: For use with FALK Steelflex type T31/T35 spacer grid couplings
• Type: Spacer

Technical Specifications

• Hub Length: 1.62 in Shaft Hub / 1.88 in T-Hub
• Hub Diameter: 2.34 in Shaft Hub / 1.94 in T-Hub
• Bore Diameter: 1/2 to 1-5/8 in
• Coupling Size: 1030T
• Maximum Speed: 3600 rpm
• Length Through Bore: 1.62 in Shaft Hub / 1.88 in T-Hub
