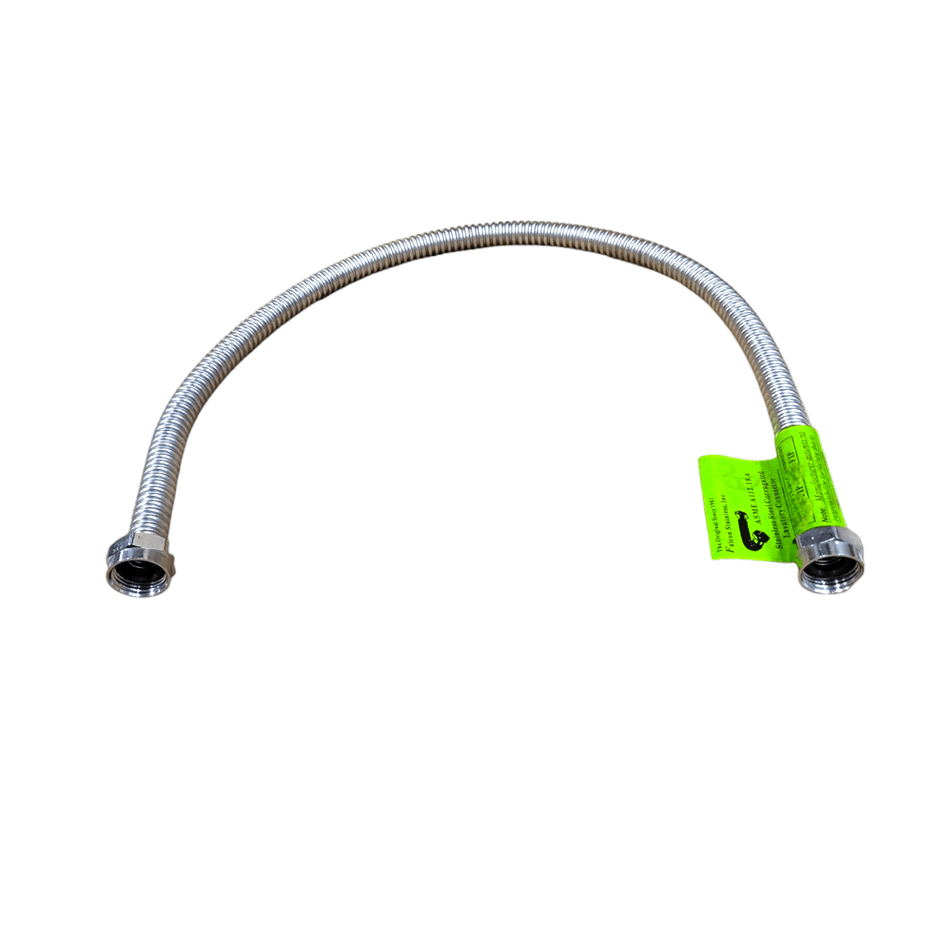

FALCONSTAINLESSFALFF36 FAL-FF-36 Water Heater Connector 36in

Product Description

The FALCONSTAINLESSFALFF36 FAL-FF-36 is a corrugated stainless steel flexible water heater connector designed to create a reliable supply-line connection between a water heater and the household cold-water inlet or hot-water outlet. The connector features 3/4-inch Female Iron Pipe (FIP) fittings on both ends and measures 36 inches in overall length. The corrugated stainless steel construction allows for slight angular offset during installation, reducing stress on inlet and outlet ports. This connector is a standard component on residential water heater service calls and new installations, typically installed by licensed plumbers.

The FAL-FF-36 is suited for residential water heater applications where a 36-inch flexible supply line with 3/4-inch FIP connections is required. The 36-inch length accommodates installations where the water supply lines are not in direct alignment with the heater ports, giving the installer enough flex to route the connection cleanly. It is appropriate for both tank-style and tankless water heater installations that use 3/4-inch threaded connections.

Key Features

• Corrugated stainless steel construction for flexibility and corrosion resistance
• 3/4-inch FIP x 3/4-inch FIP end fittings for direct threaded connection
• 36-inch length provides routing flexibility during installation
• Inner diameter of 3/4 inches supports adequate water flow for standard water heater supply lines

Compatibility

Designed as an OEM-style replacement flexible connector for residential water heaters using 3/4-inch Female Iron Pipe threaded inlet and outlet ports.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and drain pressure from the line before disconnecting existing connectors. Use thread sealant tape or pipe dope rated for potable water on all threaded connections. Do not over-tighten FIP fittings, as this can crack the fitting seat or distort the corrugated body.

Technical Specifications

• Connection Type: 3/4 inches FIP x 3/4 inches FIP
• Inner Diameter: 3/4 inches
• Length: 36 inches
• Body Material: Corrugated Stainless Steel

Standard Information

• Brand: FALCONSTAINLESSFALFF36
• Manufacturer Part Number: FAL-FF-36
