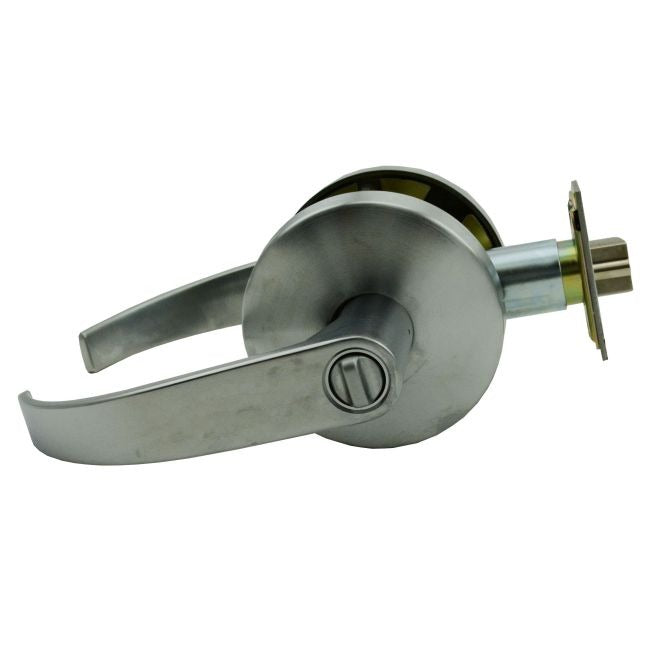

Falcon W511PQUA626 W Series Office Quantum Lever Lock

Product Description

The FALCON W511PQUA626 is a commercial-grade office lever lockset from the W Series line, engineered for door hardware applications that require reliable access control in office and light commercial environments. It ships complete with a 30197 latch and 30148 strike plate, providing a ready-to-install assembly. The lockset features a C keyway, is supplied keyed different (KD), and carries a satin chrome finish. Interchangeable core construction allows the cylinder to be pulled and replaced without a locksmith, streamlining re-keying after a lost or stolen key event. Installation requires standard door prep tools and a compatible door bored to ANSI standards.

This lockset is intended for office function applications in commercial and light commercial buildings. Office function means the lever is always free from the inside while the outside lever requires a key to operate, making it suited for private offices, conference rooms, and similar interior spaces. The unit is sold individually and is packaged with the latch and strike included, reducing the need for separate hardware orders. Licensed locksmiths, door hardware installers, and general contractors are the primary trades that specify and install this product.

Key Features

• Interchangeable core design allows fast cylinder swap without locksmith service
• C keyway for controlled key duplication and key system compatibility
• Keyed different configuration for independent key control across multiple doors
• Includes 30197 latch and 30148 strike for complete installation readiness
• Satin chrome finish provides a clean, durable appearance suited to commercial interiors
• W Series construction meets or exceeds applicable life safety and building code requirements

Compatibility

Designed as an OEM-style replacement or new-installation lever lockset for commercial doors requiring office-function hardware with ANSI standard door prep and interchangeable core capability.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware installer familiar with ANSI A156 standards. Verify that the door thickness, backset, and bore preparation match the lockset specifications before installing. Ensure the door is in a secured-open position before disassembling any existing hardware. Follow local building and fire codes regarding egress hardware requirements for the door location.
