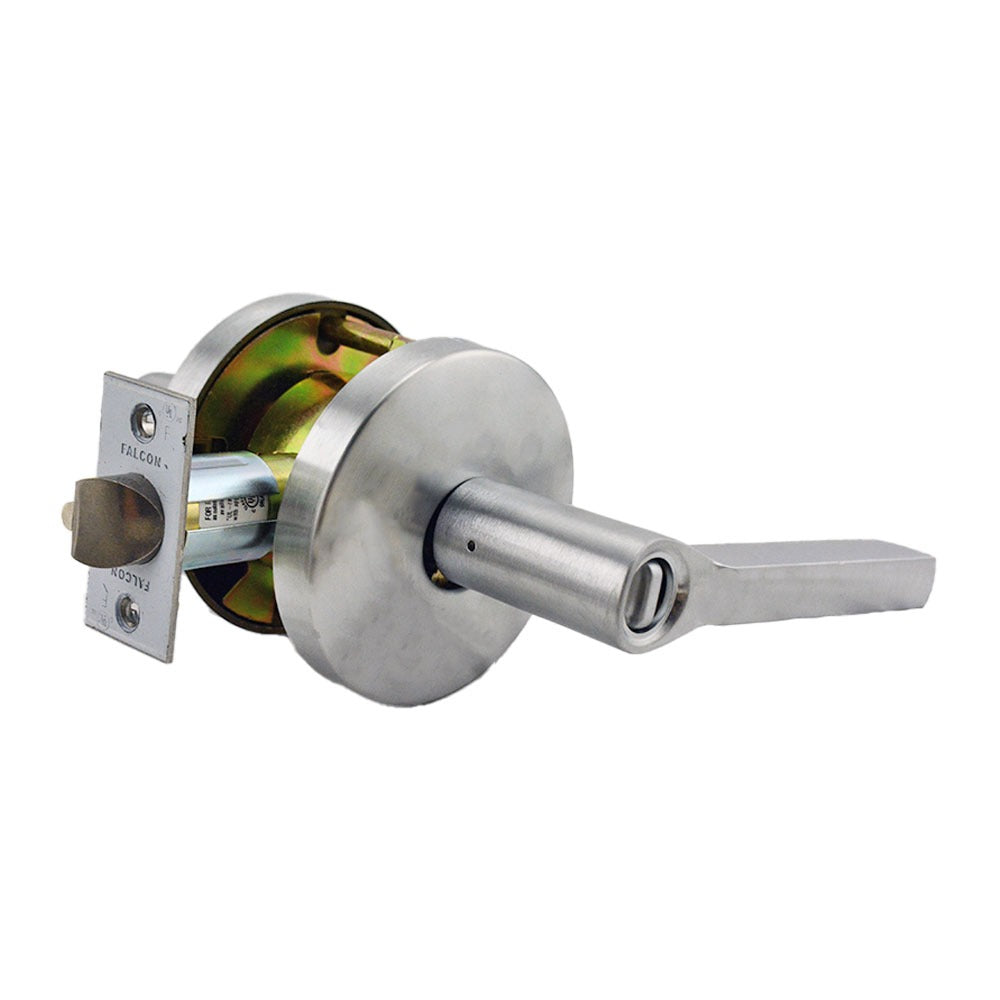

Falcon W511PLAT626 W Series Latitude Lever Lock Satin Chrome

Product Description

The FALCON W511PLAT626 is a commercial-grade office lever lock from the W Series line, designed for standard office door applications requiring controlled access. This unit features a Latitude lever design, C keyway cylinder, and a keyed-different (KD) configuration, meaning each lock ships with its own unique key cut. The finish is Satin Chrome (626), suited for use with standard commercial door hardware. The assembly includes a 30197 latch and 30148 strike plate. At 3.4 pounds, it installs on hollow metal or wood doors in light commercial and office environments. Licensed locksmiths and commercial door hardware installers are the primary trade for this product.

The W511PLAT626 is intended for office-function doors in commercial buildings where free egress is required from the interior side and key access is controlled from the exterior. The C keyway and interchangeable core design allow for re-keying by removing and replacing the core without disassembling the lock body, reducing labor time significantly during rekeying events or after a key loss. This makes it well suited for property managers and facilities teams handling multi-unit commercial spaces.

Key Features

• Latitude lever design in Satin Chrome (626) finish for commercial door applications
• C keyway cylinder with keyed-different (KD) configuration
• Interchangeable core allows re-keying without full lock disassembly
• Includes 30197 latch and 30148 strike for a complete installation package
• Office function: free egress from interior, key control on exterior
• Lightweight at 3.4 pounds for straightforward door prep and installation

Compatibility

Designed as an OEM-style replacement or new-installation lever lock for commercial office doors within the FALCON W Series product family, compatible with standard door preparations using the included 30197 latch and 30148 strike.

Installation Notes

Installation is performed by licensed locksmiths or qualified commercial door hardware technicians. Verify door thickness and backset before installation to confirm correct latch selection. Follow local building codes, including applicable ANSI and IBC requirements for office-function hardware. Do not force the core during re-keying; use the appropriate core removal tool specified for the W Series interchangeable core system.
