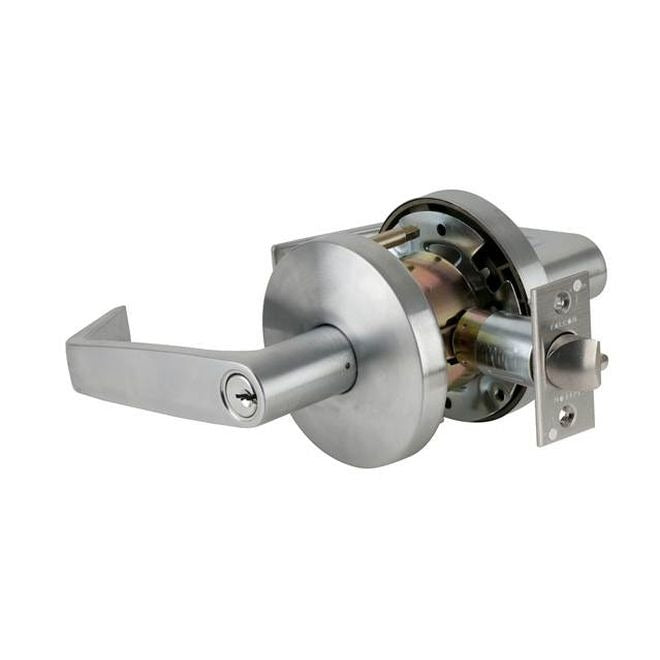

Falcon W511PDAN626 Dane Lever Lockset Satin Chrome

Product Description

The FALCON W511PDAN626 is a cylindrical office lever lockset from the W Series, designed for commercial and light institutional door hardware applications. It features the Dane lever trim in a satin chrome (626) finish and is configured with a C keyway, keyed different (KD). The lockset ships with a 30197 latch and 30148 strike included. Weighing 3.5 pounds and measuring 7.2 inches in length, 6.9 inches in width, and 3.9 inches in height, this unit is built to meet life safety and building code requirements in standard commercial door applications.

The W511PDAN626 is suited for office and commercial interior door applications where a lever-operated cylindrical lockset is required. The office function provides lever access from both sides under normal conditions, with locking controlled per the installed configuration. The satin chrome finish coordinates with standard commercial hardware suites. This lockset is sold individually and is also available in case quantities of 10 units, making it appropriate for multi-door projects or building-wide installations.

Key Features

• Dane lever trim in satin chrome (626) finish for a clean commercial aesthetic
• C keyway configuration, keyed different (KD) for individual key control
• Interchangeable core design allows re-keying without a locksmith by removing the core
• Includes 30197 latch and 30148 strike, ready for installation
• Meets life safety and building code requirements for commercial door hardware
• Sold as individual unit; compatible with case quantity purchasing in lots of 10

Compatibility

Designed as an OEM-style cylindrical lockset replacement or new-installation option for standard commercial doors requiring a W Series office-function lever with C keyway prep.

Installation Notes

Installation should be performed by a qualified locksmith or commercial door hardware technician familiar with cylindrical lockset procedures and applicable building codes. Ensure the door is properly prepped for a cylindrical lockset bore pattern before installation. Confirm the latch backset matches the door preparation before mounting. Do not force the core or lever components during assembly.
