Falcon W511PDAN622 Dane Lever Lockset C Keyway Matte Black

Product Description

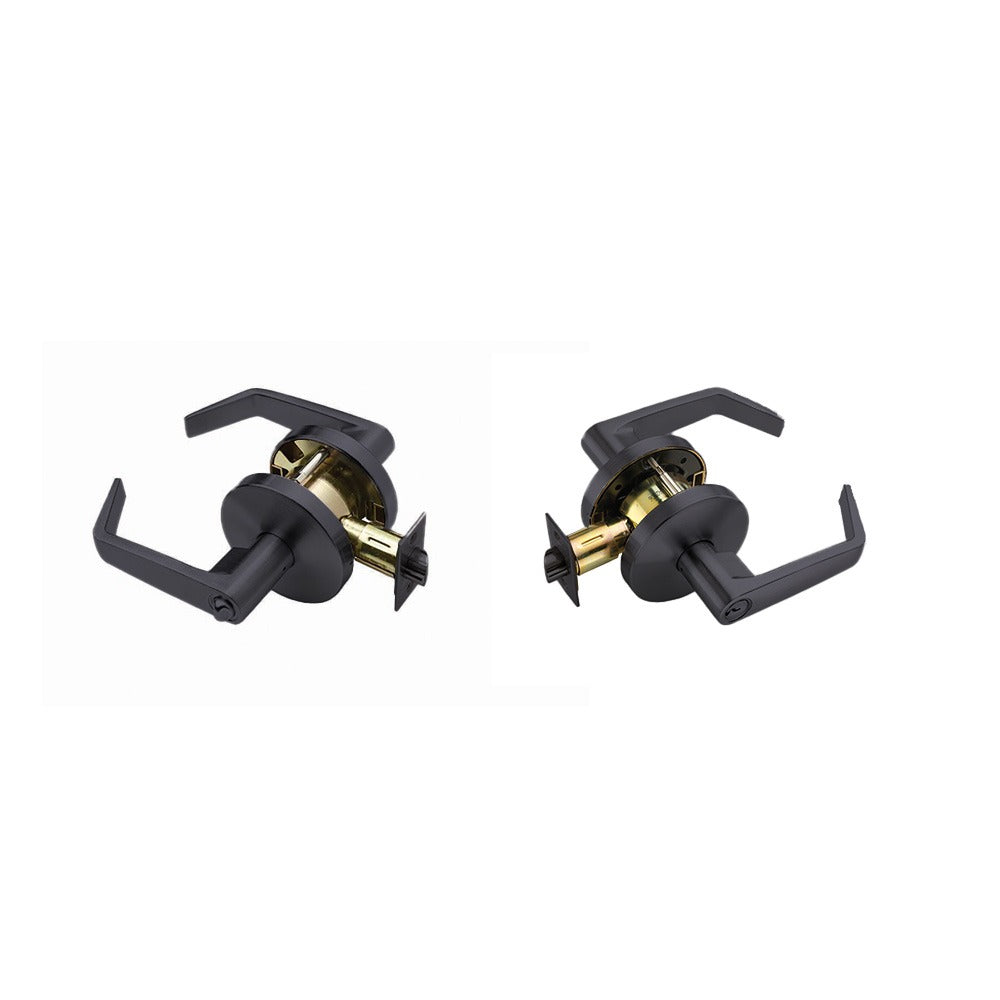

The FALCON W511PDAN622 is a commercial-grade office lever lockset from the W Series, designed for interior office doors in light commercial and institutional applications. It features the Dane lever trim and is supplied in Matte Black finish. The lockset ships with a 30197 latch and 30148 strike included. Keyed Different (KD) configuration means each unit ships with its own unique key. The C keyway cylinder accepts standard interchangeable cores, allowing the core to be removed and replaced without a locksmith, which simplifies rekeying after a lost or stolen key.

The W511PDAN622 is suited for office function doors in commercial buildings, schools, medical offices, and similar light-to-medium duty interior applications. Office function means the lever is always free from the outside unless locked by key, while the inside lever remains free at all times. This hardware is appropriate for new construction and retrofit projects where consistent trim style and fast-rekey capability are priorities.

Key Features

• Dane lever trim in Matte Black finish for consistent commercial aesthetics
• C keyway interchangeable core cylinder allows tool-free core removal and fast rekeying
• Keyed Different (KD) out of box — each unit ships with unique keys
• Includes 30197 latch and 30148 strike — no separate trim kit required
• W Series design built to meet commercial life safety and building code requirements
• Sold individually; case quantity of 10 available for larger projects

Compatibility

Designed as an OEM-style replacement or new-installation lockset for standard commercial interior doors using W Series cylindrical hardware with C keyway interchangeable cores.

Installation Notes

Installation is performed by a licensed locksmith or qualified door hardware installer. Verify door prep meets ANSI/BHMA standards for cylindrical lockset backset and bore diameter before installation. Ensure the door and frame are properly aligned before securing the strike plate. Do not force the core removal tool — consult the interchangeable core removal procedure for this series before servicing the cylinder.
