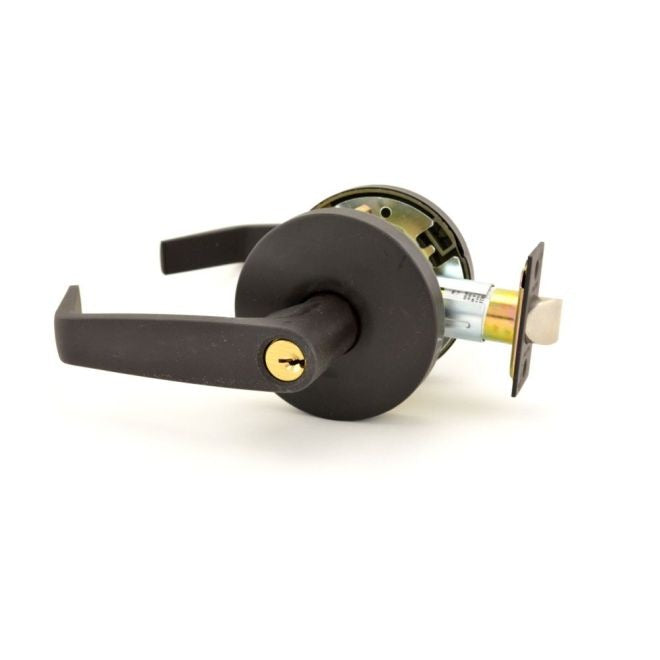

Falcon W511PDAN613 Dane Lever Lock Oil Rubbed Bronze

Product Description

The FALCON W511PDAN613 is a commercial-grade office lever lock from the W Series line, designed for standard office door applications requiring controlled access. It features the Dane lever design, a C keyway cylinder keyed different (KD), and an oil rubbed bronze finish. The unit ships with a 30197 latch and 30148 strike included. The lock weighs 3.7 pounds and measures 7.4 inches in length, 6.2 inches in width, and 3.9 inches in height. It is intended for installation by a qualified locksmith or door hardware technician in commercial or institutional settings.

The W511PDAN613 is suited for interior office doors in commercial buildings, schools, healthcare facilities, and similar environments where a passage or privacy lockset with keyed entry is required. The office function restricts entry from the exterior via key while allowing free egress from the interior. The C keyway designation and keyed different configuration make it appropriate for facilities managing individual door keying across a larger master key system.

Key Features

• Dane lever trim in oil rubbed bronze finish for a traditional aesthetic
• C keyway cylinder, keyed different — each lock operates on its own unique key
• Interchangeable core design allows re-keying without a locksmith by removing the core
• Includes 30197 latch and 30148 strike for a complete installation package
• W Series commercial-grade construction meeting life safety and building code requirements
• Sold individually; case quantity of 10 available for larger projects

Compatibility

Designed as an OEM-style replacement or new-installation lever lock for commercial door preparations compatible with FALCON W Series mortise or bored lock mounting configurations. Specific door prep compatibility should be verified against the door frame and backset dimensions prior to ordering.

Installation Notes

Installation should be performed by a licensed locksmith or qualified door hardware technician familiar with commercial lock hardware. Power is not required for this mechanical lock, but the door should be secured in an open position before hardware is removed or installed. Verify door prep, backset dimension, and strike plate mortise depth before installation. Local building codes and fire-rated door assembly requirements should be consulted when installing locks on rated door assemblies.
