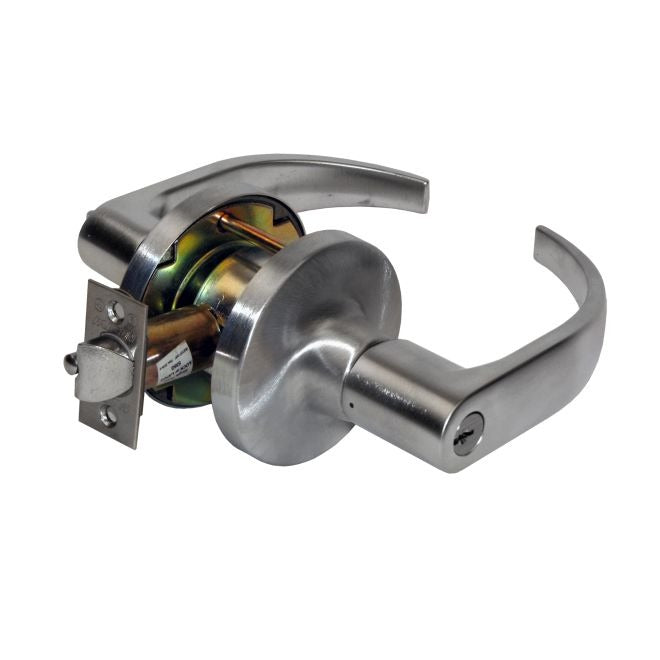

Falcon T511PQUA626 T Series Quantum Lever Lock Satin Chrome

Product Description

The FALCON T511PQUA626 is a T Series entry and office lever lock designed for commercial and light commercial door hardware applications. It features a Quantum lever trim, C keyway cylinder, and a keyed-different (KD) configuration, making it suitable for new installations where unique keying is required. The lock ships with a 23981145 latch and a 5164 strike plate, providing a complete installation package. The satin chrome finish (626) offers a clean, professional appearance well-suited to office and institutional environments. Licensed locksmiths, commercial door hardware installers, and facilities maintenance technicians are the typical end users for this product.

The T511PQUA626 is intended for entry and office function applications in commercial buildings, office suites, schools, and institutional facilities. The interchangeable core design allows the cylinder to be removed and replaced without disassembling the lockset, which simplifies re-keying in response to lost or stolen keys. This feature is especially useful in facilities managing a large number of keyed openings. The keyed-different setup is standard for initial installations where a master key system or re-keying will be handled on-site by qualified personnel.

Key Features

• T Series Quantum lever trim in satin chrome (626) finish for commercial door hardware applications
• C keyway cylinder with keyed-different (KD) configuration for unique keying out of the box
• Interchangeable core design allows fast cylinder replacement without locksmith tools or full disassembly
• Includes 23981145 latch and 5164 strike plate for a complete, ready-to-install package
• Entry and office function supports standard commercial access control requirements

Compatibility

Designed as an OEM-style replacement or new-installation lever lock for commercial doors accepting T Series mortise or bored lock hardware with a C keyway interchangeable core system.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with ANSI-standard bored lock prep. Confirm door prep dimensions and backset before installation to ensure proper latch and strike alignment. Verify that the door and frame are de-energized if any electrified hardware or access control wiring is present before beginning work. Follow applicable local building codes and the manufacturer documentation included with the unit for final torque and function testing.
