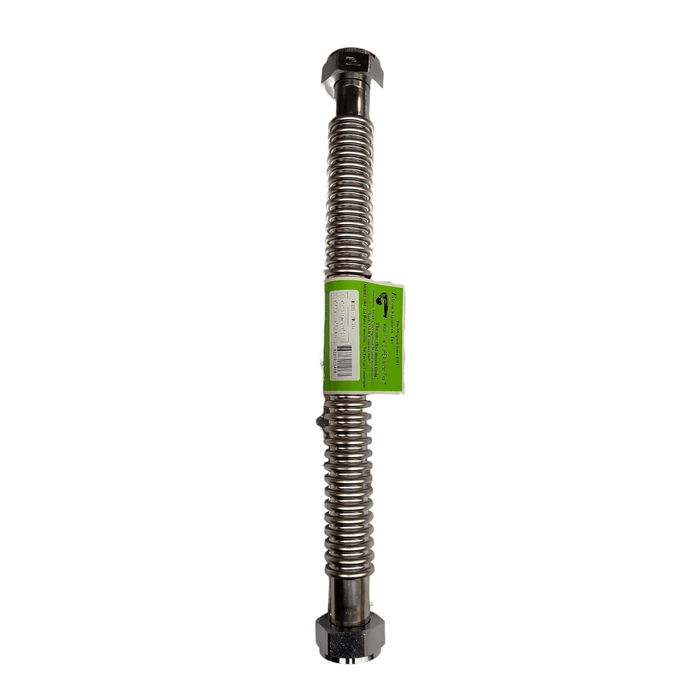

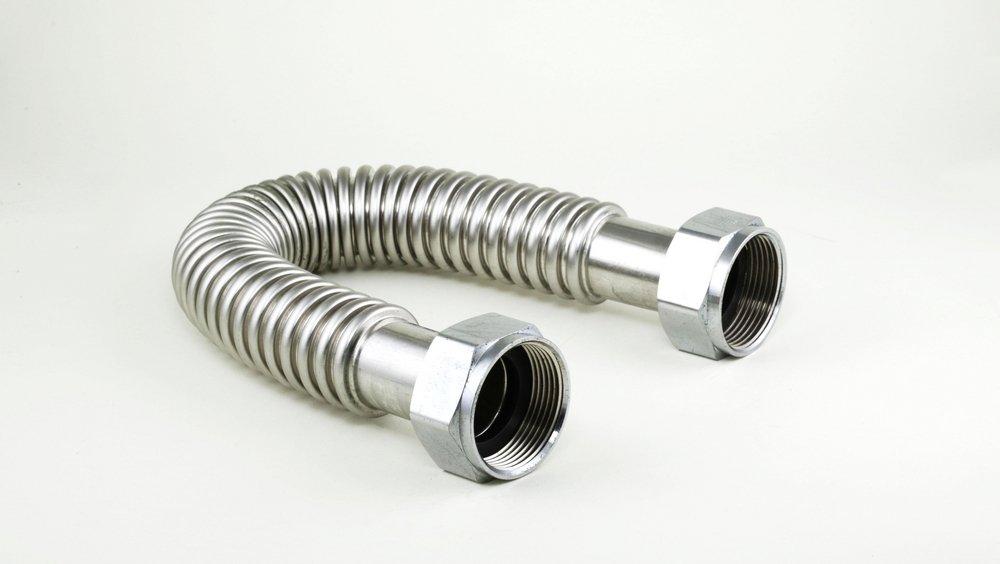

Falcon Stainless SWC114-18 Flex Connector 18 inches 1 1/4 inches FIP x 1 1/4 inches FIP

Product Description

The FALCON STAINLESS SWC114-18 is a flexible tankless water heater connector. It features bright annealed 304 corrugated stainless steel tubing and end connections of 1 1/4" Inch Female Threaded x 1 1/4" Inch Female Threaded. Designed to maintain optimal flow with a full port design and is 100% leak tested.

• Flexible Tankless Water Heater Connector
• Bright Annealed 304 Corrugated Stainless Steel Tubing Material
• Temperature Rating -40 to 220 Deg F

Product Highlights

This flexible water connector is made of 304 series stainless steel and is lead-free compliant.

Product Information

Standard Information

• Brand: FALCON STAINLESS
• Manufacturer Part Number: SWC114-18
• Country of Origin: Global

Technical Specifications

• Type: Flexible, Tankless Water Heater
• End Connection: 1 1/4" Inch Female Threaded x 1 1/4" Inch Female Threaded
• Length: 18 Inch
• Tubing Material: Bright Annealed 304 Corrugated Stainless Steel
• Temperature Rating: -40 to 220 Deg F
• Pressure Rating: 200 PSI (Working), 1850 PSI (Burst)
• Inclusions/Features: Chrome Plated Brass Nut, High Temperature EPDM Washer
• Applicable Standard: ANSI/NSF 61, ASME A112.18.6, ICC-ES PMG, CSA B125.6, UPC, IPC, IMC, IRC
• Lead-Free: Lead-Free
• End Connection 1: FIPS
• End Connection 2: FIPS
• End Connections: FIPS
• Fitting Size 1: 1-1/4
• Fitting Size 2: 1-1/4
• Fitting Sizes: 1-1/4 in
• IAPMO Listed: No
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Material: Stainless Steel
