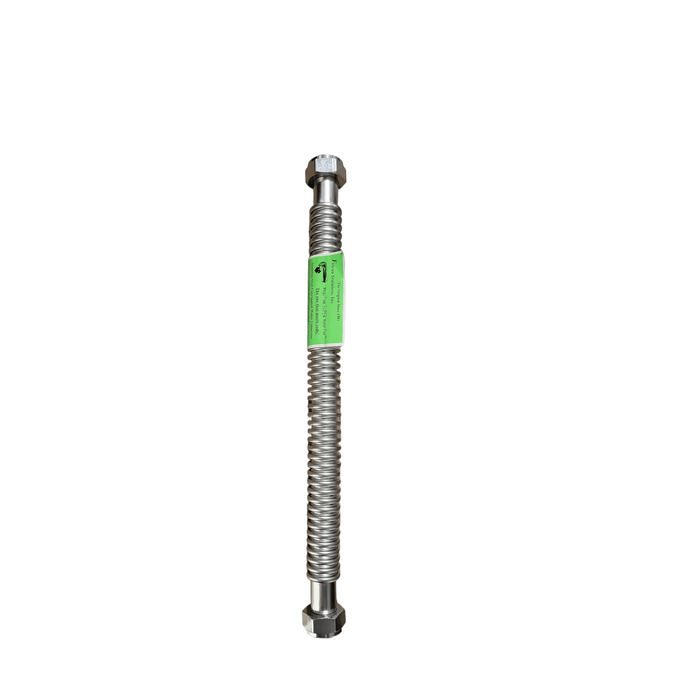

Falcon Stainless SWC-1X18 Flex Connector 18 inches 1 inches FIP x 1 inches FIP

Product Description

The FALCON STAINLESS SWC-1X18 is a flexible tankless water heater connector. It features bright annealed 304 corrugated stainless steel tubing and a chrome-plated brass nut with a high-temperature EPDM washer. Suitable for use in water heaters, this connector ensures a secure and reliable connection with a working pressure of 200 PSI.

• Flexible tankless water heater connector
• Bright annealed 304 corrugated stainless steel tubing
• Chrome Plated Brass Nut, High Temperature EPDM Washer

Product Highlights

Ensures a secure and reliable connection for water heaters with a working pressure of 200 PSI.

Product Information

Standard Information

• Brand: FALCON STAINLESS
• Manufacturer Part Number: SWC-1X18

Technical Specifications

• Type: Flexible, Tankless Water Heater Connector
• End Connection: 1" Inch Female Threaded x 1" Inch Female Threaded
• Length: 18 Inch
• Tubing Material: Bright Annealed 304 Corrugated Stainless Steel
• Temperature Rating: -40 to 220 Deg F
• Pressure Rating: 200 PSI (Working), 1850 PSI (Burst)
• Inclusions/Features: Chrome Plated Brass Nut, High Temperature EPDM Washer
• Applicable Standard: ANSI/NSF 61, ASME A112.18.6, ICC-ES PMG, CSA B125.6, UPC, IPC, IMC, IRC
• Lead-Free: Lead-Free
